How to print Ovoid Thermal Flask with Semi Automatic Cup Screen Printing Machine

Semi Automatic Cup Screen Printing Machine: Real Demo on Ovoid Thermal Flask with LEUZE Color Sensor Registration

Struggling with inconsistent prints on curved or tapered containers — especially when registering multiple colors? The JST-R400-CSM semi-automatic cup screen printing machine solves this with mechanical precision and an optical LEUZE contrast sensor that locks onto your existing logo position, delivering sharp, registered prints up to 1500 pieces per hour. And you can see it print your exact product live, guided by our English-speaking engineer — no translators, no guesswork.

In this demo, you’ll see:

• ✅ How we custom-machined a fixture for an ovoid thermal flask
• ✅ Unedited video of the machine running at full speed with LEUZE sensor registration
• ✅ The final print result — and how you can see your own product printed on a live video call with our English-speaking engineer

Quick Benefits — At a Glance

Feature	Benefit	Proof
LEUZE Contrast Sensor	Automatically registers prints on pre-printed or blank products for 2-10 color overprinting	German-made optical sensor, ±0.1mm accuracy
Servo-Driven Rotation	Smooth, skip-free rotation on cylindrical, conical, and ovoid surfaces	INOVANCE servo motor (ABB/Fuji optional)
CNC-Machined Custom Fixtures	Perfect product alignment for non-standard shapes	10 in-house CNC centers, ±0.01mm machining
Touchscreen PLC Control	Easy operation with programmable parameters	MCGS screen, INOVANCE PLC
1500 pcs/hour Output	Consistent high-volume production	Verified in 48-hour burn-in testing
Talk to Our Engineers Directly	No translators, no delays — real-time technical answers	20-year PLC engineer speaks fluent English on video calls

Step-by-Step Demo: Printing an Ovoid Thermal Flask

This is the actual process our English-speaking engineers will walk you through on your private video call.

Step 1: Machine Setup & Parameter Adjustment

Before printing begins, we adjust the machine for the specific ovoid thermal flask. This includes setting the air pressure (0.4-0.6MPa), adjusting the worktable height, printing head height, and stroke length to match the flask’s curvature.

The JST-R400-CSM uses HIWIN precision linear guides for smooth vertical adjustment, driven by a servo motor and reducer. The entire screen frame and print head move as one unit, ensuring perfect parallel alignment with your product.

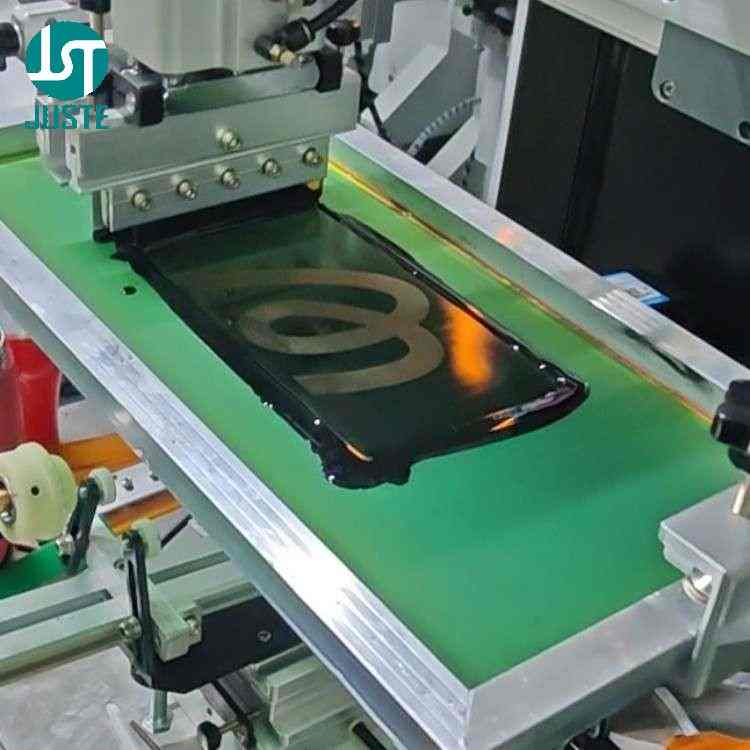

Step 2: Custom Screen & Stencil Installation

We install a 600×400mm screen frame with your custom logo design. The screen is tensioned uniformly on a CNC-machined frame — because inconsistent tension directly affects registration accuracy.

For this ovoid thermal flask, we’re printing a multi-color logo. Each color requires a separate screen, and we use the LEUZE sensor to align each layer with micron-level precision.

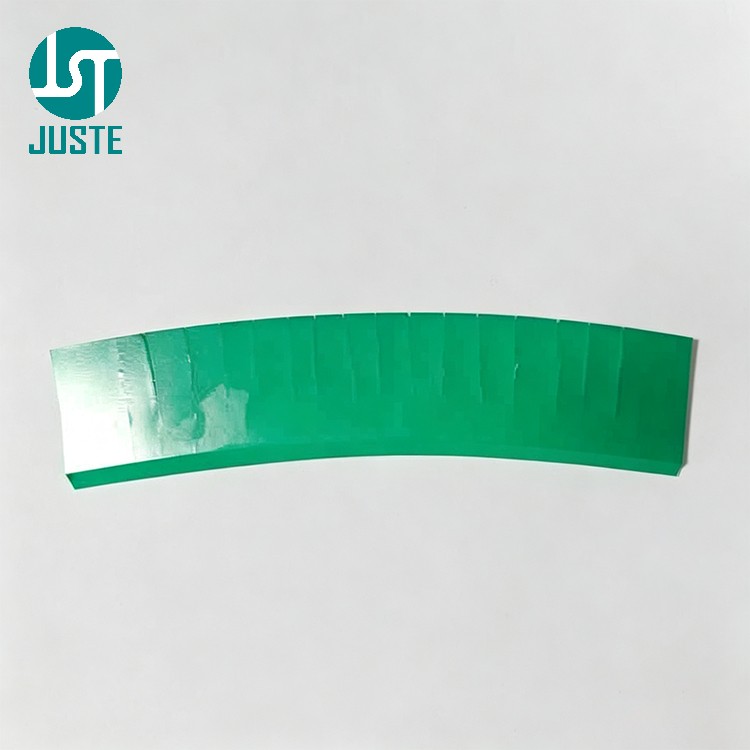

Step 3: Squeegee & Flood Bar Installation — Curved Surface Adjustment

The squeegee must match the flask’s curvature for uniform ink transfer. We install the flood bar and squeegee, then manually adjust the squeegee angle to follow the ovoid contour. This ensures the entire printed area receives even pressure — no thin spots, no smudging.

The pneumatic squeegee drive provides consistent downforce on every cycle, eliminating the variability of manual pressure.

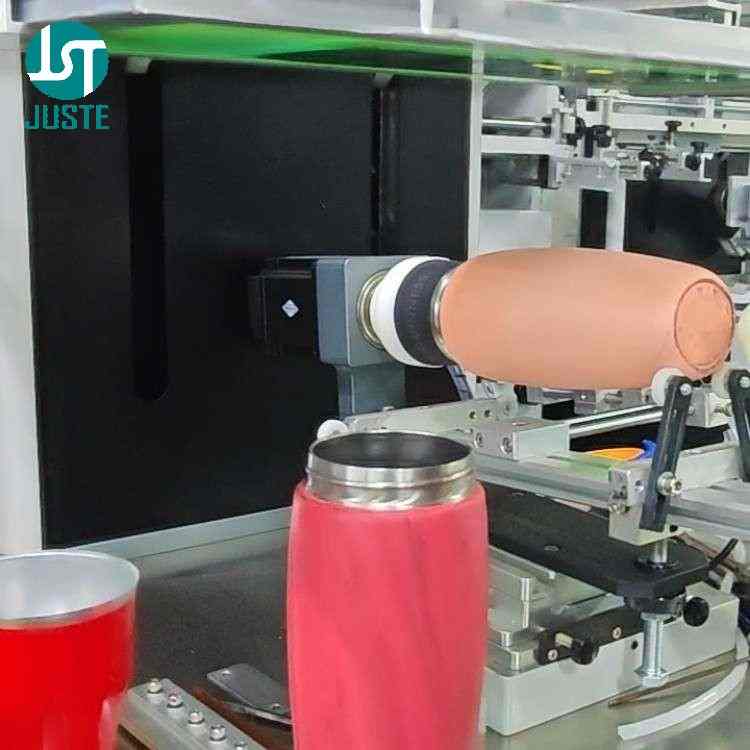

Step 4: Custom Fixture & Product Loading — The Precision Advantage

This is where the JST-R400-CSM truly shines for non-standard shapes. The ovoid thermal flask is mounted onto a custom CNC-machined fixture that holds it firmly and ensures the printing surface is perfectly parallel to the screen.

This fixture was machined in-house on our own CNC equipment — one of 10 high-precision centers with ±0.01mm accuracy. For your products, we can design and machine custom fixtures based on your samples.

For standard cylindrical products with rigid walls, the machine comes with universal fixtures that work out of the box — no custom fixture required.

The operator loads the flask manually, then steps on the foot pedal to start the automatic print cycle.

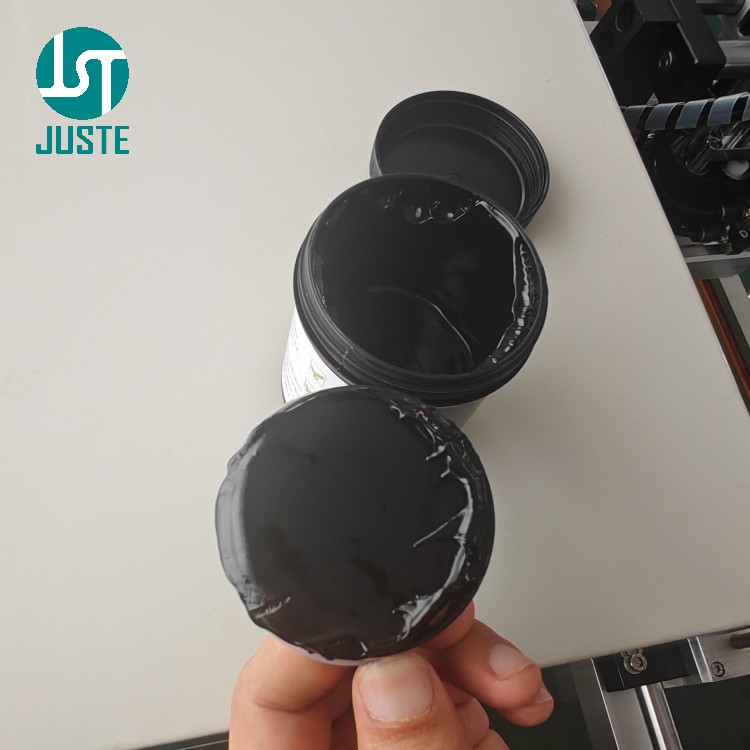

Step 5: Ink Application & Registration

We pour UV screen printing ink into the screen frame and begin the printing cycle. The machine automatically moves the screen frame left and right via servo motor while the squeegee presses down. Simultaneously, the rotary servo motor rotates the flask in sync with the screen movement — this relative motion transfers the ink through the stencil onto the product surface.

For multi-color printing: After the first color, we manually change the screen for the second color. The LEUZE optical contrast sensor detects the already-printed logo position and automatically registers the next layer — no manual alignment guesswork. This sensor is what makes 2-10 color overprinting practical and precise.

Step 6: Finished Product — Sharp, Registered, Production-Ready

After printing, the operator removes the flask for curing. The result: a sharp, opaque logo with 0.1mm registration accuracy, properly positioned on the curved surface. No distortion, no edge blur.

Curing options:

• UV ink → Requires a UV curing lamp (sold separately) for instant drying
• Solvent ink → Air dries in 2 hours (surface) / 24 hours (fully cured)
• Solvent ink + IR oven → Optional IR curing oven reduces drying to 1-5 seconds

Every JST-R400-CSM undergoes 48-hour continuous production testing before shipping to ensure batch-to-batch consistency.

Watch It Live — Your Product, Your Language

The demo above shows a recorded process. Now imagine getting a private, real-time video walkthrough of your own product being printed — guided by our 20-year PLC engineer, all in fluent English, with zero communication barriers.

Our engineers and sales team speak fluent English. You ask technical questions. They answer — directly, clearly, and immediately.

(Replace with actual video shortcode or embed YouTube/Vimeo URL)

This is the same process our English-speaking engineers will walk you through on a private video call — but customized for your specific product, shape, and color requirements.

Technical Specifications — JST-R400-CSM

Parameter	Specification
Model	JST-R400-CSM
Max Screen Frame Size	600×400mm
Max Printing Length	400mm
Max Printing Diameter	Full circle: 127mm / Half circle: 254mm
Printing Speed	1500 pcs/hour
Print Accuracy	±0.1mm
Control System	PLC + 7″ Touchscreen (MCGS)
Registration Sensor	LEUZE Contrast Sensor (Germany)
Servo Motors	INOVANCE (ABB/Fuji optional)
Linear Guides	HIWIN (Taiwan)
Pneumatics	AIRTAC cylinders, SMC valves
Power	220V/50Hz or 110V/60Hz, 2KW
Air Pressure	0.4-0.6MPa
Machine Size	90×80×140cm (with crate: 100×90×160cm)
Machine Weight	205kg (with crate: 280kg)
Certification	CE, RoHS, ISO9001

Frequently Asked Questions (FAQ)

Q: Are you a manufacturer or a trading company?
A: We are a direct manufacturer. Shenzhen Juste Machine Co., Ltd. has been designing and building industrial printing equipment since 2013. We operate a 9,000+ sqm factory with 10 in-house CNC machining centers. You can verify this on a live video tour with our sales team — in fluent English.

→ Book a free video factory tour with our English-speaking sales team.

Q: Can the JST-R400-CSM print on my specific product — tapered cups, ovoid bottles, or conical containers?
A: Yes. The machine handles cylindrical, conical, circular, and ovoid products. The worktable angle is adjustable for tapered shapes. For non-standard contours like ovoid flasks, we design and machine custom fixtures in-house based on your sample. For standard rigid cylinders, universal fixtures are included free of charge.

→ Send us your product samples for a free live video demo and fixture consultation.

Q: Do your engineers speak English? Can I really communicate without a translator?
A: Absolutely. Both our mechanical design engineers (15+ years experience) and PLC software engineers (20+ years) speak fluent English. You can ask technical questions directly on a video call — from setup parameters to maintenance troubleshooting. No middleman, no misunderstandings. This is our core differentiator.

→ Schedule a 15-minute video call with our 20-year PLC engineer — in fluent English.

Q: Why is your price higher than some other suppliers?
A: We build with proven components: HIWIN linear guides, SMC solenoid valves, AIRTAC cylinders, INOVANCE servo motors, and LEUZE sensors — not generic parts. We machine core components in-house to ±0.01mm. Every machine undergoes a 48-hour burn-in test before shipping. Based on our experience serving clients in over 120 countries, these investments directly translate to lower downtime, consistent quality, and higher resale value.

→ Let us calculate your total cost of ownership — we’ll show you the ROI difference.

Q: Can I see the machine printing my product before I pay?
A: Yes — this is our zero-risk promise. You send us your blank samples. We custom-machine a fixture and run a print test. Then we go live on video with our English-speaking engineer, who demonstrates the entire process and answers your technical questions on the spot. You see the final result in real time.

→ Request a free sample print test and live video demo — no obligation.

Q: Can I inspect my machine before it ships?
A: Yes. Before shipping, we conduct a pre-shipment video inspection with you. Our engineer walks you through the machine, verifies every component against your order, shows the test prints, and reviews the 48-hour test report — all while you watch live. You approve it before it leaves our floor.

→ Book your pre-shipment video inspection — we’ll walk you through every detail.

Q: What warranty and technical support do you offer?
A: 1-year warranty with free spare parts replacement for manufacturing defects. Lifetime technical support — our engineers are available via video call for troubleshooting, maintenance guidance, and PLC backup. We ship spare parts worldwide express. MOQ is 1 machine.

→ Contact us for a quote with full warranty terms and technical support coverage.

Your Product, Same Process — See It Live, in Fluent English

You’ve just watched a recorded demo. Now imagine getting a private, real-time video walkthrough of your own product being printed, guided by our 20-year PLC engineer — all in fluent English, with zero communication barriers.

• 🔹 Step 1: Send us your design and a few blank product samples.
• 🔹 Step 2: We’ll custom-machine a fixture and run your print test.
• 🔹 Step 3: We go live on video — our English-speaking engineer shows you everything, answers your technical questions on the spot, and you see the final print result in real time.

There is zero risk. If you’re not 100% convinced, you walk away with no obligation. And before shipping, we’ll do a pre-shipment video inspection with you, so you know exactly what’s in the crate.
