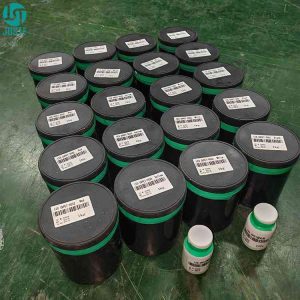

A Comprehensive Guide to Our Specialty UV Ink for Hard, Smooth Surfaces
Description des produits
| Marque | JUSTE |
| Modèle | JST-UVINK |
| Poids | 1KG |
| Type d'encre | Type d'encre |
| Couleur | Personnalisable |
| UV Curing Time | >1 second |
This is a specialized ink formulated for printing on a wide range of hard, glossy surfaces. Here is a complete overview:
1. What is the Ink Made Of? (Composition)
This uv ink consists of two primary components:
High-Grade Acrylic Resin: This acts as the “body” or “glue” of the ink. It is responsible for forming a tough, dry film and ensuring strong adhesion to the surface. It determines foundational properties like scratch resistance and flexibility.
High-Quality Pigments: These provide the color. The pigments undergo fine milling, meaning the particles are ground extremely finely. This ensures printed colors are even, smooth, and free of a grainy texture.
2. Where Can You Use It? (Application Surfaces)
This ink offers strong adhesion and can be used directly on the following materials without pre-treatment (like flame or corona treatment):
Métal: Iron, aluminum, stainless steel products.
Verre: Cups, panels.
Céramique: Tableware, tiles, handicrafts.
Stone: Surfaces like marble and granite for pattern printing.
Plated Surfaces: Including traditional electroplating and eco-friendly “water plating,” common on jewelry, faucets.
Anodized Aluminum: Found in premium electronics casings and architectural aluminum.
Surfaces with Electrostatic or Baked Paint: Common on appliances, automotive parts, and metal furniture.
3. Key Features and Benefits (Ink Properties)
Finish & Adhesion: Dries to a matte (non-glossy) finish. It provides excellent adhesion, gripping surfaces firmly to prevent peeling.
Feel & Leveling: Offers a smooth, pleasant feel after printing. Excellent leveling means the ink flows evenly to fill screen mesh marks, resulting in a smooth, flawless surface.
Durability: The dried film is hard and resistant to impact, bending, and scratches from fingernails or common objects.
Chemical Resistance: Performs well against alcohol and common chemicals, meaning it resists fading or damage during cleaning—a key durability indicator.
4. Printing Guidelines (Parameters)
Screen Mesh: Use 100 to 420 mesh counts. Higher counts give thinner layers and finer detail. For example, with a 120T polyester monofilament screen, 1 kg of ink covers approximately 35-40 square meters.
Drying Time:
Surface Dry: Air-dry for 5-10 minutes until touch-dry (no tackiness). Prints can be stacked without smudging.
Full Cure: Complete internal drying takes under 24 hours. For optimal performance (adhesion, scratch resistance), allow 48 hours.
Important: While “surface dry” allows for handling after ~30 minutes, the ink is not fully cured. Adhesion or rub tests must wait at least 12 hours (24-48 hours is best), as it cures through a slow chemical reaction.
5. How to Use It (Instructions)
Before Use: Stir the ink thoroughly in the container to recombine any settled resin and pigment. Reseal tightly immediately after use.
Mixing:

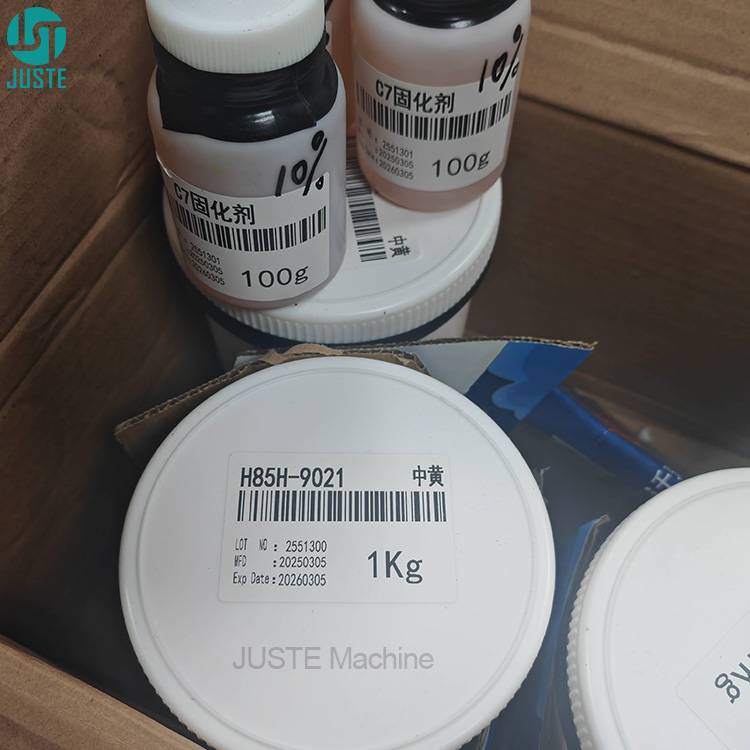

If using a hardener (for enhanced properties), add and mix it first. Let it sit for 10 minutes.
Then, add 5% to 15% specialized thinner, stirring until the desired printing viscosity is reached.
Note: Ink mixed with hardener must be used within 4-6 hours, as it will gradually thicken and become unusable.
Printing & Cleaning: Use screen wash to clear any blockages. Never mix this ink with other brands or types.
Performance Enhancement (Optional):
Hardener: Adding ~10% hardener significantly boosts adhesion, abrasion, and chemical resistance.
Heat Curing: Baking printed items at 80°C for 30 minutes accelerates drying and optimizes all properties compared to air drying.
6. How to Test Results
After full cure (best at 48 hours), conduct these key tests:
Adhesion Test (Cross-Cut): Make a lattice pattern (100 squares) on the ink film with a blade. Apply 3M tape firmly and pull it off rapidly at a 45° angle. The ink passes if no squares are removed.
Rub Resistance Test (Alcohol Test): Rub the surface 200 times with a cloth soaked in 99% alcohol. The ink passes if it shows no fading, peeling, or exposure of the base material.
7. Important Precautions
Test First: Surface treatments can vary between material suppliers. Always conduct a small test print to confirm adhesion and color before full production.
Troubleshooting: If the ink strings or spreads during pad printing, add a small amount of “retarder” to slow drying and improve transfer.
Environment: High temperatures can severely affect ink quality, causing premature drying or performance issues. Operate in a cool, ventilated area.
Storage Safety: This ink contains flammable chemicals. Store in a cool, dry place away from fire, heat sources, and direct sunlight.
8. Why Choose It? (Summary of Core Advantages)
Print-Ready, No Pretreatment Needed: Can be printed directly on the various difficult-to-adhere materials listed, eliminating the complex steps of flame or corona treatment, saving both time and cost.
Comprehensive Performance, Outstanding Durability: Not only does it adhere strongly, but it also excels in key indicators like scratch resistance, impact resistance, and chemical resistance (to alcohol), ensuring the printed design remains pristine throughout the product’s lifecycle.
User-Friendly & Easy to Control: Excellent leveling and a well-defined drying window minimize common printing issues like screen clogging and orange peel, making it more operator-friendly.
Premium Finish, Enhanced Perception: The matte, smooth finish provides a low-key yet high-end visual and tactile experience, adding significant value to the end product.
Wide Application, One Ink for Multiple Uses: From metal signs and glassware to electronics casings and appliance panels, one type of ink can cover multiple product lines, reducing inventory and management complexity.
