Fishing Rod Screen Printer: Efficient Solution for Long and Cylindrical Printing Needs
Tube Screen Printing Machine JST-RL300 Multi-Color System
The JST-RL300 represents the ultimate solution in semi-automatic tube screen printing technology,
specifically engineered for cylindrical and tubular products. This advanced tube printing machine
combines German optical precision with robust Chinese manufacturing to deliver exceptional multi-color
printing on materials ranging from plastic and metal tubes to fishing rods and industrial pipes.
With production speeds of 500-1500 pieces per hour and support for diameters up to Φ360mm, this
metal tube screen printing machine offers unparalleled versatility for small to medium businesses.
Products Description
| Brand | JUSTE |
| Model | JST-RL300 |
| Function | With Color Sensor And Servo Motor |
| Printing color | More 10 Color / customize |
| Max Printing diameter | Φ180mm half circle Φ360mm (customize big) |
| Max Printing size | 300*450mm |
| Capture accuracy | 0.05mm |
| Printing speed/hr | 500-1500 |
| Operation/hr | Semi Automatic |
| Machine size | L720xW760xH1220MM |
| Weight | 120KG |
| Air pressure(bar) | 5 |
| Wattage | 500-1000W |
| Power | 220V/ 50HZ-110V/60HZ |
Servo Motor Optical Color Sensor Silk Screen Printing Machine Advantages:
with 2 full CNC servo motor, PLC system, Touch screen, optical color sensor.
it can marking registration automatically by high sensitive optical color sensor,
automatic positioning, it can overprint multiple color high precision in 0.01mm.
So easy to overprint multiple color 2,3,4, 5, 6, 7, 8, 9, 10, 11, 12,13-20 colors.
1: Fully automatic control with PLC system.
2: Automatic oil scrabbing, oil return and lifting table.
3: Lock marking position by optical color sensor within high Accuracy 0.01mm.
4: Print multi color more than 10 color too easy with optical color sensor.
5: Self-poise scraper to balance printing pressurem.
6: Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
7: The printed product is rotated by a servo motor to ensure high accuracy, not by gear
8: Screen plate is controlled by high precision servo motor, Screw rod accuracy is 0.01mm.
Machine main part use high quality famous brand imported from Germany Japan Taiwan
1: Servo motor INOVANCE (can customize Yaskawa, Mitsubish, Panasonic, Siemens)
2: High precision optical color sensor is Leuze (German famous brand)
3: PLC system is Mitsubishi (imported from Japanese)
4: Touch Screen is Wigerlon (American Guaranteed brand)
5: Guide screw is TBI (imported from TaiWan)
6: Slide guide is Hiwin (imported from TaiWan)
7: Air cylinder is AIRTAC (Taiwan brand) ( can customize SMC FESTO brand)
8: Solenoid valve is SMC (imported from Japan brand)

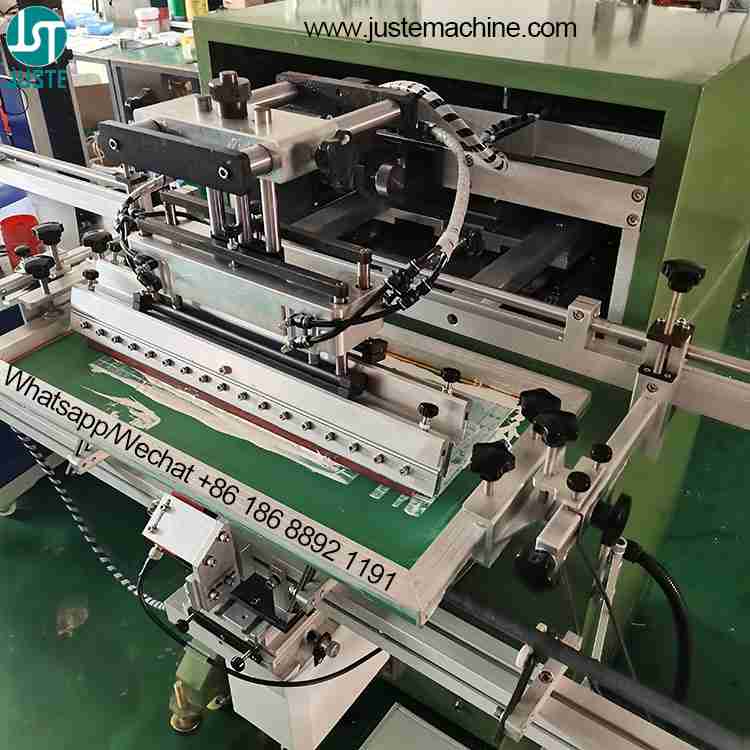

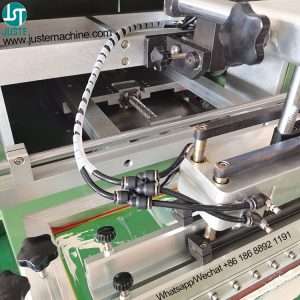

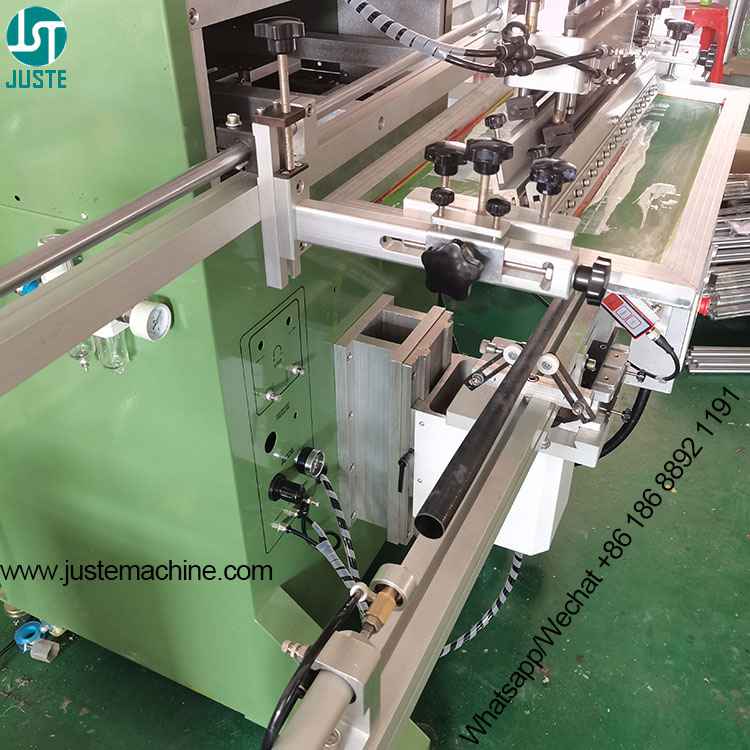

Plastic Tube Screen Printer Squeegee and Ink Retrun System
Precision Ink Control: Adjustable pneumatic pressure ensures consistent ink deposition on various
tube surfaces
Multi-Angle Adjustment: Vertical, horizontal, and tilt adjustments optimize printing on curved surfaces
Durable Construction: High-quality components withstand continuous operation in demanding environments
Professional Results: Separate squeegee and flood bar mechanisms deliver commercial-quality printing

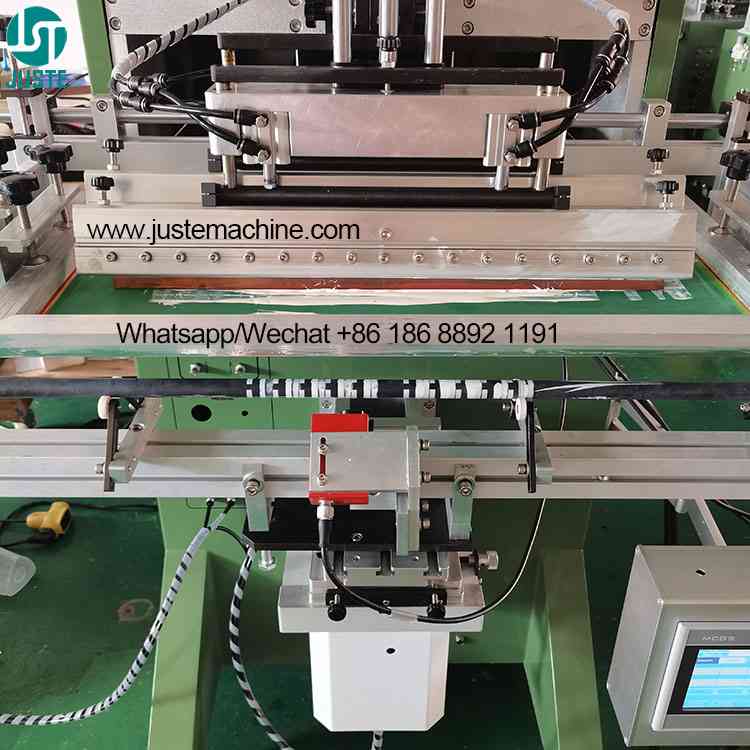

Fishing Rod Screen Printing Machine Frame Clamp
Servo-Driven Precision: INOVANCE servo motor ensures accurate horizontal movement for perfect
registration
Quick-Change Design: Rapid screen replacement minimizes downtime between different tube printing jobs
Vibration-Free Operation: Robust clamping maintains perfect screen tension throughout production
Universal Compatibility: Accommodates various screen frame sizes up to 400×800mm

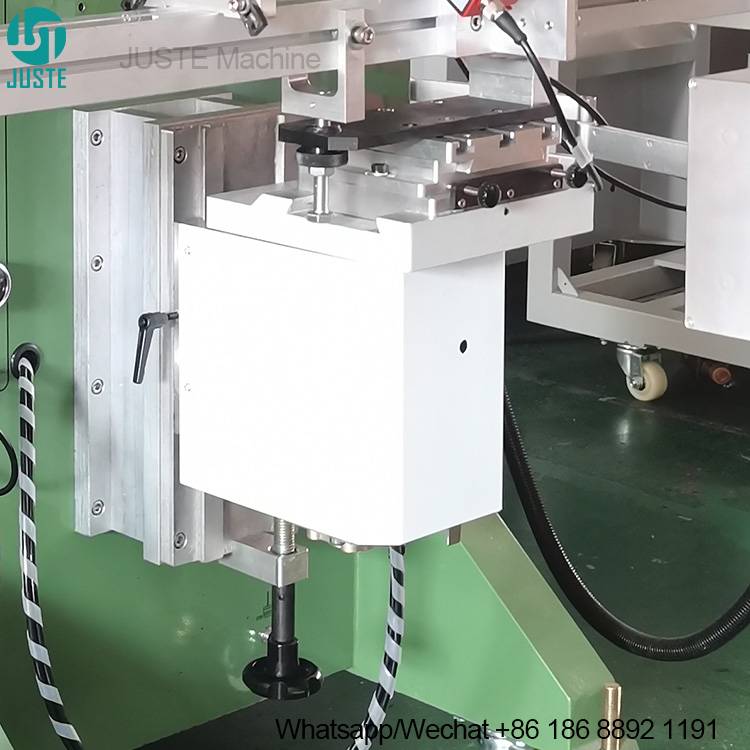

Curved Surface Screen Printing Machine Work Table
Multi-Axis Precision: Vertical, horizontal, and tilt adjustments accommodate different tube
diameters and lengths
Stable Platform: Heavy-duty construction ensures vibration-free operation during printing
Ergonomic Access: Optimized design facilitates easy loading and unloading of long tubular products
Precision Engineering: Accurate positioning guarantees consistent print registration

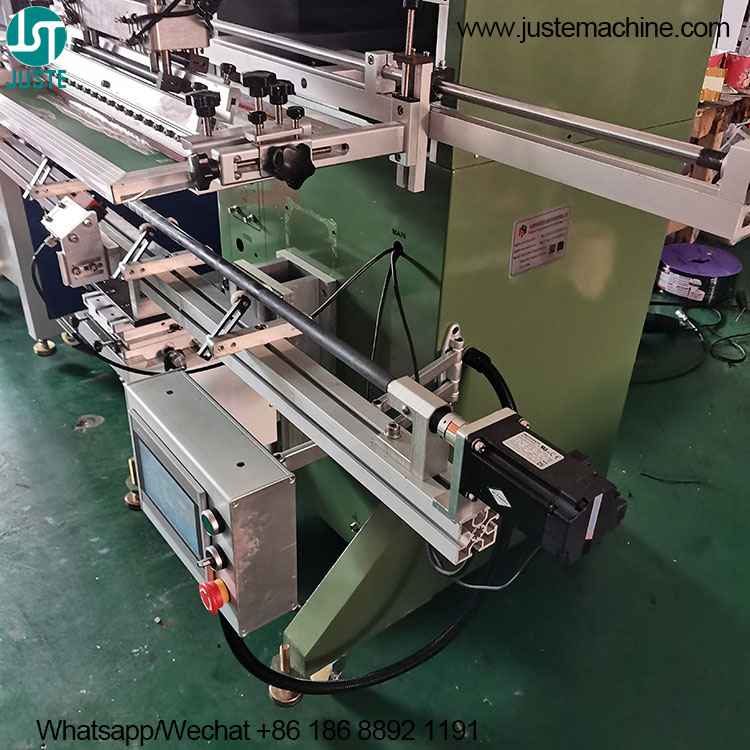

Long Pipe Screen Printing Machine Fixture System
Product-Specific Design: Customizable fixtures perfectly match your tube dimensions from
fishing rods to industrial pipes
Servo-Controlled Rotation: Precision servo motor ensures consistent tube rotation during printing
Wheel-Supported Stability: Specialized wheel system provides smooth support for long cylindrical objects
Quick Changeover: Simple fixture changing minimizes setup time between different tube products

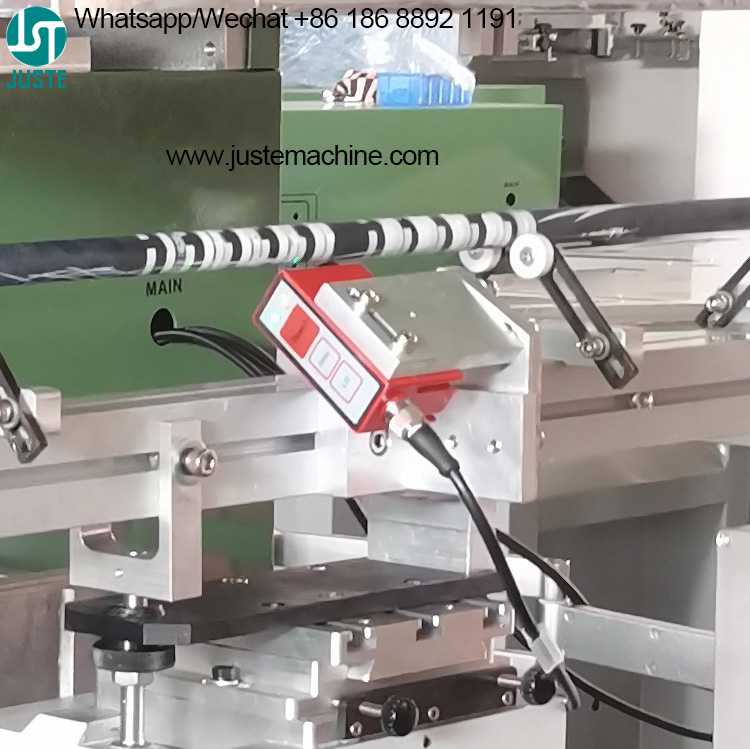

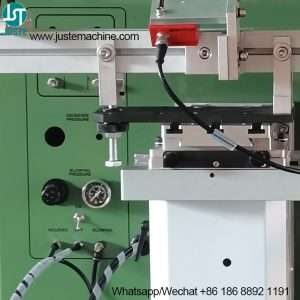

Automatic Cylindrical Screen Printing Machine Color Sensor
German Precision: Leuze contrast sensors automatically detect previous print marks with
microscopic accuracy
Real-Time Correction: Instant micro-adjustments ensure perfect color-to-color alignment on tubes
Surface Intelligence: Advanced scanning technology works on various material surfaces and colors
Consistent Quality: Maintains registration accuracy throughout extended tube printing runs

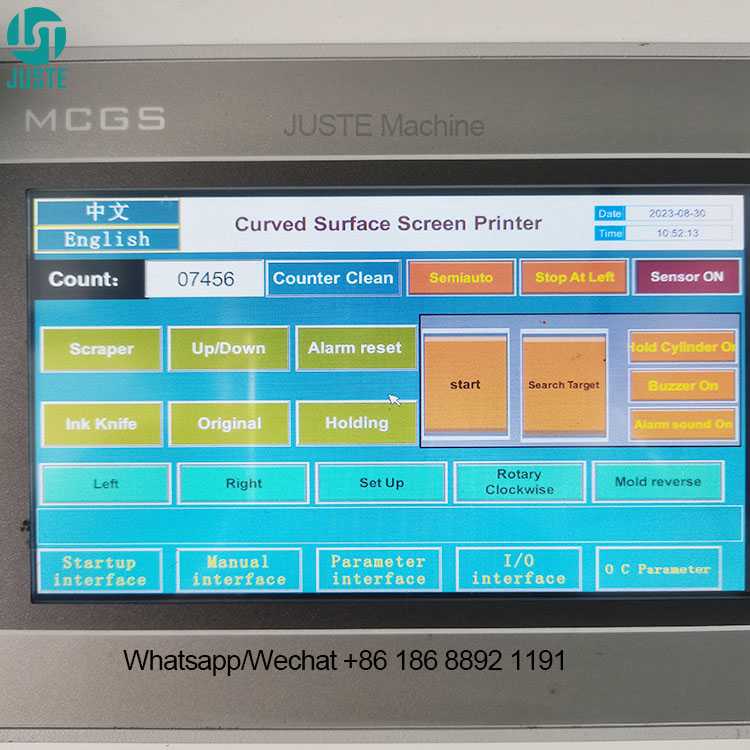

Semi Automatic Tube Printer Control System
User-Friendly Interface: Intuitive touch screen simplifies operation and parameter setting
for tube printing
Precision Programming: Set printing start/end points with 0.01mm accuracy and tube diameter parameters
Multi-Mode Operation: Seamless switching between automatic, semi-automatic, and manual operations
Production Monitoring: Real-time display of output counts, machine efficiency, and print speed

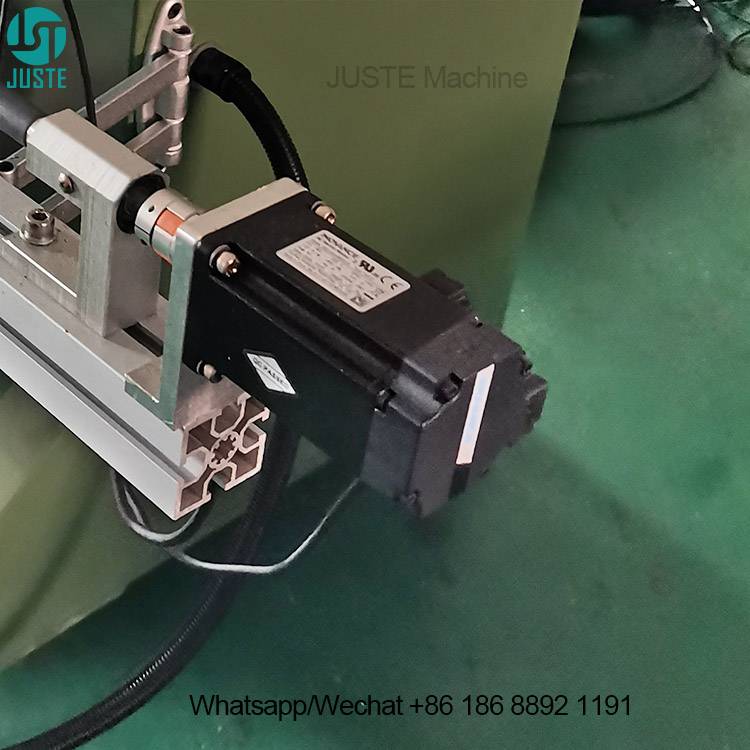

Cylindrical Object Screen Printer Servo Motor
Perfect Synchronization: Dual INOVANCE servo motors coordinated by Mitsubishi PLC ensure
perfect timing
Micro-Adjustment Capability: Instant positional corrections for perfect multi-color registration
on tubes
Energy Efficient: Precision motors reduce power consumption while maintaining high performance
Customizable Options: Available with Yaskawa, Mitsubishi, Panasonic, or Siemens servo systems

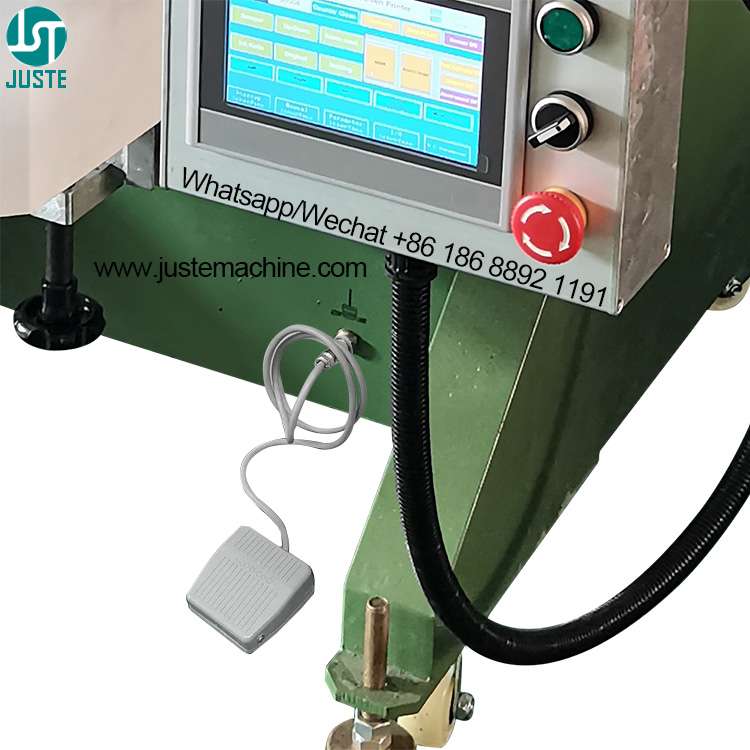

Fishing Pole Screen Printing Machine Foot Switch
Hands-Free Operation: Allows operators to focus on tube handling and quality control
Quick Response: Instant print cycle activation improves production rhythm and efficiency
Ergonomic Design: Reduces operator fatigue during extended tube printing runs
Safety Features: Protected activation prevents accidental operation
Round Object Screen Printing Machine Printing Station
Consistent Performance: Pneumatic drive system ensures reliable operation across long production runs
Precision Movement: Accurate left-right motion guarantees perfect print placement on cylindrical surfaces
Easy Maintenance: Accessible design simplifies cleaning and routine service procedures
Professional Results: Industrial-grade components deliver commercial-quality tube printing

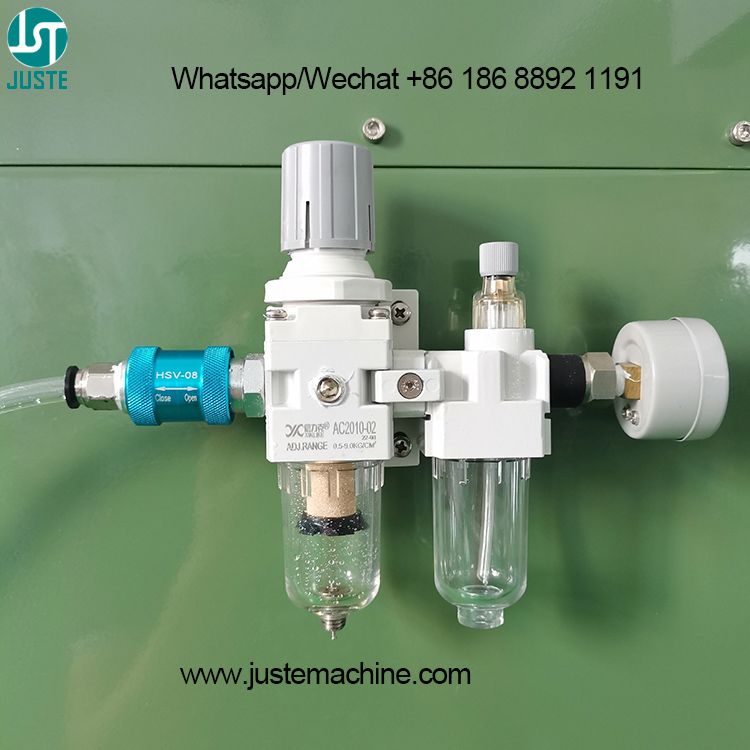

Plastic Pipe Screen Printing Machine Air Filter
Component Protection: Removes moisture and oil contaminants from air supply, extending component lifespan
Consistent Performance: Maintains optimal air quality for reliable pneumatic operation
Easy Maintenance: Simple filter replacement ensures continuous protection
System Longevity: Protects valuable pneumatic components from damage and wear

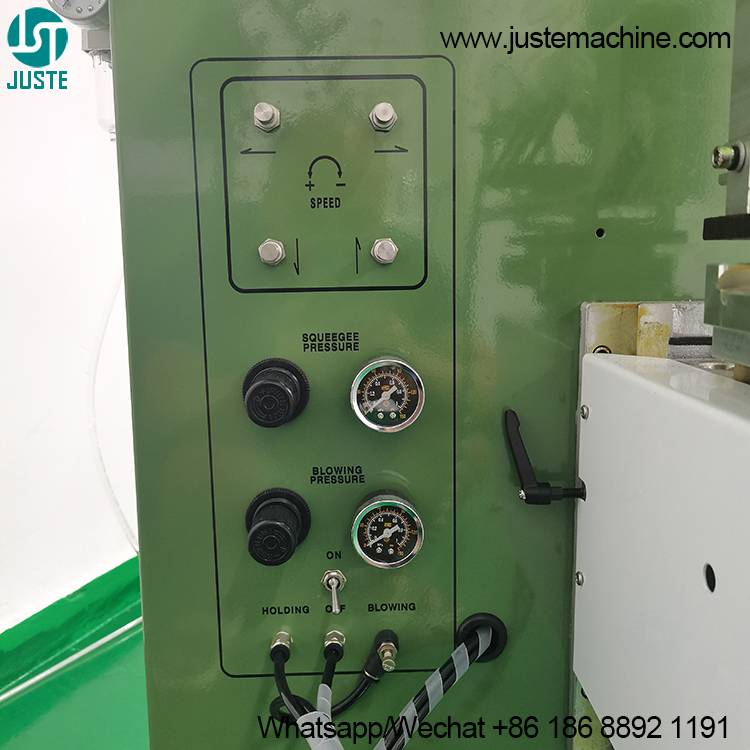

Metal Pipe Screen Printing Machine Pressure Regulator
Individual Control: Separate pressure adjustment for different machine functions in tube printing
Optimized Performance: Fine-tune pressure settings for various tube materials and ink types
Visual Monitoring: Clear gauges display current pressure settings at a glance
Stable Operation: Maintains consistent pressure for uniform print quality on pipes

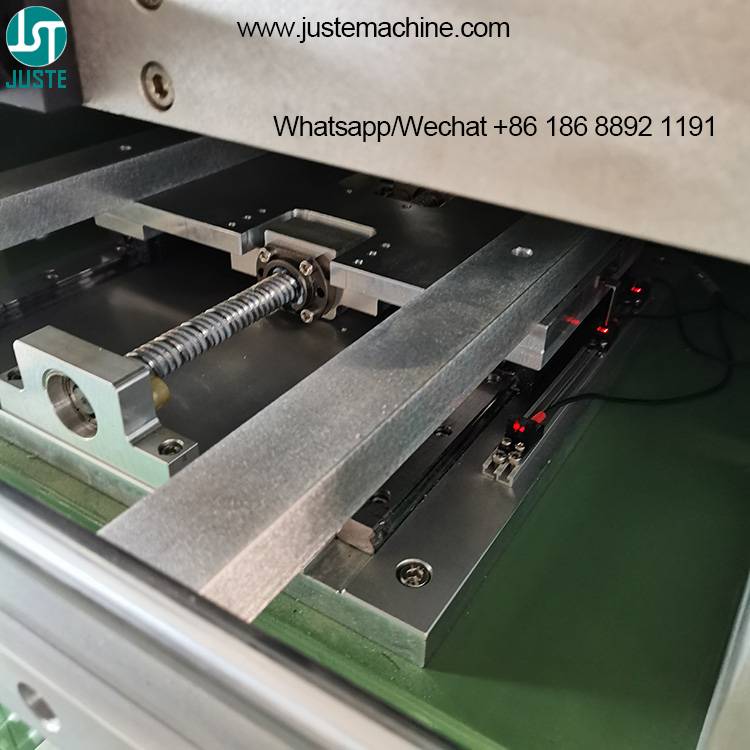

Automatic Pipe Screen Printing Machine Limit Switch
Adjustable Stroke: Customize printing travel distance for different tube lengths and design sizes
Precision Control: Ensure consistent print placement across all tubular products
Easy Setup: Simple adjustment mechanism for quick job changes between different tubes
Reliable Operation: Durable switches maintain accurate positioning throughout production
Multi-Industry Tube Printing Application Solutions
Material Applications:
Plastic Tubes & Pipes: Consistent printing on PVC, PET, PP and other plastic materials
Metal Tubes & Pipes: Precision printing on aluminum, stainless steel pipes and metal tubes
Fiberglass Tubes: Excellent results on fishing rods and composite tubular products
Specialty Materials: Reliable printing on bamboo, ceramic, and silicon tubular products
Industry Applications:
Fishing Equipment: High-quality multi-color printing on fishing rods and fishing poles
Sporting Goods: Precision printing on golf shafts, pool cues, and athletic tubes
Industrial Components: Reliable printing on long pipes, metal tubes, and mechanical components
Cosmetic Packaging: Premium printing on cosmetic tubes and container packaging
Medical Devices: Precision printing on medical tubes and approved device components
Musical Instruments: Detailed printing on flute bodies and instrument tubular parts
Operational Excellence
The JST-RL300 tube screen printing machine represents the perfect fusion of precision engineering
and practical functionality for tubular object printing. Its sophisticated synchronized servo system,
controlled by Mitsubishi PLC, ensures perfect timing between screen movement and tube rotation,
effectively eliminating registration errors in multi-color printing.
The machine’s specialized fixture system, featuring wheel-supported rotation, provides exceptional
stability for long cylindrical objects. This makes it particularly valuable for businesses handling
diverse tubular products from delicate fishing rods to industrial pipes. The German Leuze optical
sensors provide real-time micro-adjustments, maintaining perfect registration even at maximum production speeds.
Operation is streamlined through the intuitive touch screen interface, which allows precise control
over all tube printing parameters. The semi-automatic functionality, enhanced by foot pedal control,
enables efficient production while maintaining flexibility for special handling requirements.
Advanced Tube Printing Features:
Flexible production speeds from 500 to 1500 pieces hourly
Support for both plastisol and UV ink systems on various tube materials
Easy adaptation between different tube diameters and lengths
Minimal setup time between different tube printing jobs
Consistent quality across extended tube printing runs
Machines Packaging
Print Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea
