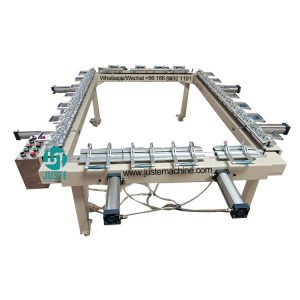

Silk Screen Stretching Machine
Products Description
| Brand | JUSTE |
| Model | JST-SC1215P |
| Working Voltage | 220V |
| Power | 50W |
| Machine Size | 2000*2400*700mm |
| Inner size | 1200*1500*700mm |
| Machine Weight | 250KG |
| Largest Stretchable Frame Size | 1200*1500mm |
| Smallest Stretchable Frame Size | 800*1000mm |
| Maximum tension of stretch mesh | 35N-45N/CM |
| Stretching Drive | Pneumatic |
| Main Material | Iron |
| Collet | Aluminum Double Head |
| Lifting Method | Air Cylinder |
| Air Pressure | 0.5-0.7Mpa |
Technical Process & Working Principle:
Step 1: Mesh Cutting
Cut the screen mesh into a square that extends beyond all four clamping positions of the pneumatic screen
stretching machine, ensuring sufficient material for the double-head clamps to grip securely.
Step 2: Frame Placement & Initial Fixing
Place a flat wooden board or rigid panel on the central lifting bar of the automatic screen stretching machine
as a platform, then position the screen frame evenly on this platform.
Step 3: Even Clamping & Mesh Stretching
Use all double-head clamps to evenly grip the mesh on all four sides, first clamping the front and back
opposite sides, then the left and right opposite sides. Place a tension meter on the mesh and gradually
stretch using the pneumatic silk screen stretching machine by pressing the tensioning buttons,
monitoring tension values constantly to prevent over-stretching and mesh damage until standard
tension values are achieved at all measuring points.
Step 4: Lift Bar Activation
Activate the pneumatic lifting bar of the screen printing mesh stretcher to steadily raise the screen
frame into contact with the tensioned mesh.
Step 5: Tension Adjustment (Most Critical Step)
Place the tension meter at the four corners and center of the mesh within the frame area, recording
readings from all five points. These readings should be very close, ideally with differences not
exceeding 1 N/cm. Uneven tension causes inconsistent ink passage during printing, resulting
in uneven color density and potential ghosting.
Step 6: Glue Application
Evenly apply screen adhesive to the frame area contacting the mesh using a small brush. Avoid
applying beyond 3cm inside the frame and prevent adhesive droplets from blocking mesh openings
in the printing area.
Step 7: Adhesive Curing & Final Steps
Allow natural air drying for 10-15 minutes or use a hair dryer/heating gun for accelerated drying.
Once completely dry and firmly bonded, release all tension from the screen stretching machine,
open all clamps, trim excess mesh along the frame’s outer edge, and remove the completed screen from the machine.
High-Speed Operation: Pneumatic tensioning system reduces stretching time by 60% compared to manual machines.
Production Efficiency: Capable of handling multiple screen frames simultaneously for batch processing.
Superior Tension Control: Achieves consistent 35-45N/cm tension with pneumatic precision.
Enhanced Productivity: Ideal for SMT film pasting, PCB manufacturing, and large-format advertising applications.

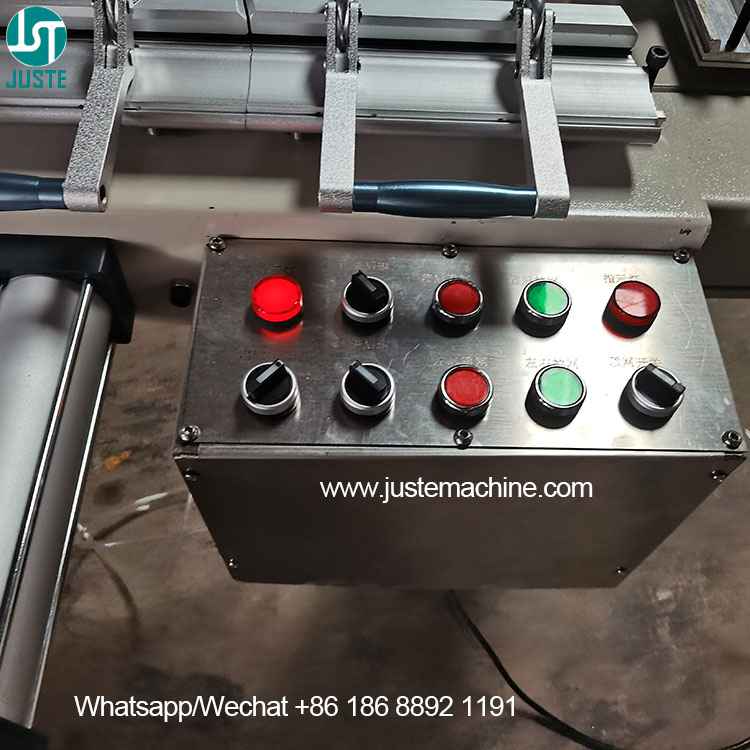

Pneumatic control interface for screen stretching machine
The advanced Control Panel for automatic silk screen stretcher features intuitive push-button
controls that activate the pneumatic stretching system with simple press-and-hold operation.
This industrial-grade interface allows operators to initiate controlled tensioning sequences while
monitoring the process through integrated pressure gauges and status indicators. The ergonomic layout
ensures comfortable operation during high-volume production runs, while the durable membrane
switches withstand continuous use in demanding workshop environments. This sophisticated control
system represents the core of the machine’s automated functionality, enabling precise tension
management without manual effort.
Simplified Operation: Push-button controls eliminate manual cranking and reduce operator fatigue.
Precise Control: Enables exact tension adjustment through controlled pneumatic pressure.
Production Efficiency: Faster operation significantly increases daily output capacity.
User-Friendly Interface: Intuitive design reduces training time and operational errors.

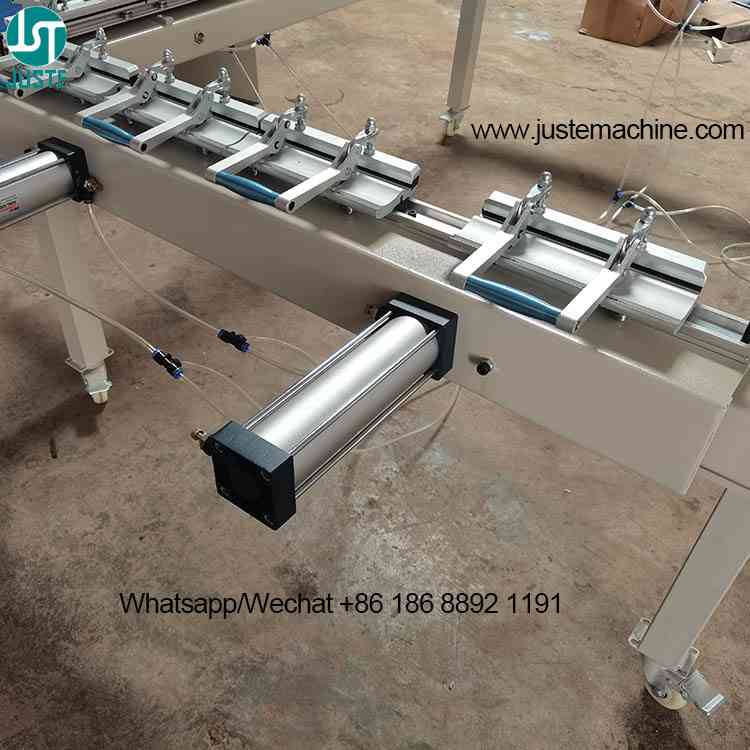

Tensioning Cylinders for pneumatic screen stretcher
The heavy-duty Tensioning Cylinders for pneumatic screen stretcher provide the powerful,
controlled force needed for consistent mesh stretching across all four directions. These industrial-grade
pneumatic cylinders operate in perfect synchronization to deliver even tension distribution, ensuring
uniform stress application throughout the mesh surface. The precision-engineered cylinders maintain
consistent pressure throughout the stretching process, eliminating the variability associated with manual
operation and ensuring repeatable results in high-volume production environments where this screen
printing mesh stretching machine excels.
Consistent Performance: Pneumatic system delivers repeatable tensioning results.
Powerful Operation: Generates sufficient force for high-tension applications up to 45N/cm.
Even Force Distribution: Multiple cylinders ensure uniform tension across entire mesh surface.
Reduced Physical Effort: Automation eliminates manual labor during stretching process.

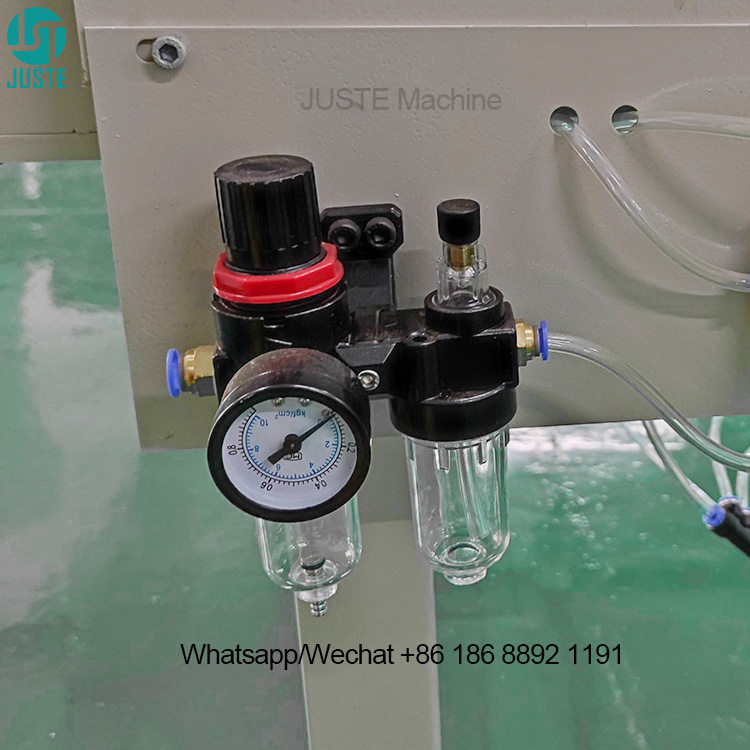

Air filtration for pneumatic silk screen stretching machine
The comprehensive Air Preparation System for pneumatic silk screen stretching machine ensures optimal
air quality and pressure stability for the entire pneumatic tensioning system. This multi-stage filtration
unit removes contaminants and moisture from the compressed air supply while maintaining consistent
pressure through precision regulation. The integrated water trap and automatic drainage features protect
sensitive pneumatic components from damage, ensuring reliable operation of this silk screen mesh stretching
machine in demanding production environments. Regular maintenance of this crucial subsystem guarantees
long-term performance consistency and protects your investment in this advanced screen stretching technology.
System Protection: Prevents damage to pneumatic components from contaminated air.
Consistent Performance: Maintains stable air pressure for reliable tensioning results.
Reduced Maintenance: Clean, dry air extends component lifespan and reduces downtime.
Quality Assurance: Stable air supply ensures consistent tensioning performance.

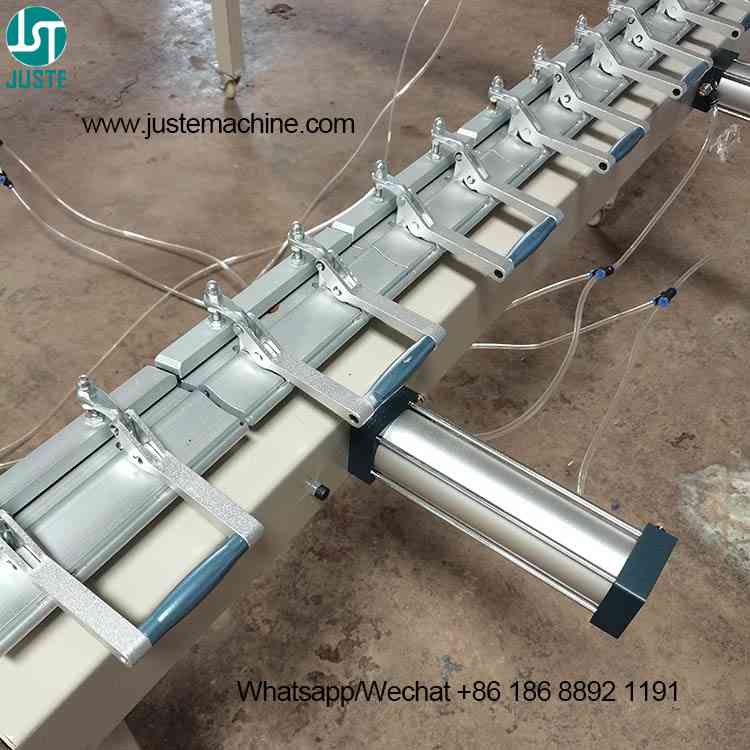

Double-head Clamping Assembly for silk screen frame mesh stretcher
The precision-engineered Clamping Assembly for silk screen printing mesh stretcher for frame mesh
features advanced double-head aluminum clamps that provide superior gripping force and stability during
high-speed pneumatic tensioning. These heavy-duty clamps utilize dual contact points to distribute holding
pressure evenly across the mesh edges, preventing slippage even at maximum tension settings.
The enhanced clamping security ensures consistent performance throughout automated stretching sequences,
making this screen printers stretcher particularly suitable for high-volume production environments where
reliability and consistency are paramount for maintaining production schedules and quality standards.
Enhanced Grip Security: Dual clamping points prevent mesh slippage during automated tensioning.
Superior Stability: Maintains precise mesh positioning throughout high-speed operation.
Durable Construction: High-strength aluminum build ensures long-term reliability.
Even Pressure Distribution: Two-point contact ensures consistent holding force.

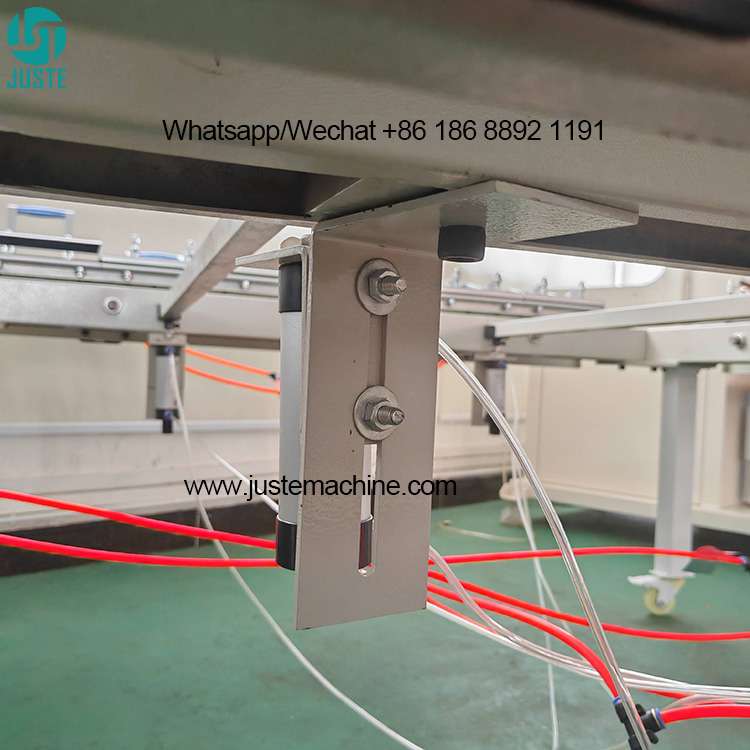

Pneumatic lifting mechanism for screen stretching machine
The robust Integrated Lifting System for screen printing frame stretcher combines pneumatic lifting
cylinders with precision guidance mechanisms to provide smooth, controlled elevation of screen frames
into tensioned mesh. Operating at 0.5-0.7Mpa, this heavy-duty lifting system delivers consistent upward
force that ensures perfect frame-to-mesh contact during adhesive application. The precision engineering
of this lifting mechanism maintains perfect alignment throughout the screen mounting process,
while thepneumatic operation significantly reduces operator effort and increases production speed,
making this stretching machine for screen printing ideal for high-volume production environments.
Automated Operation: Pneumatic lifting reduces manual labor and increases efficiency.
Precision Alignment: Maintains accurate frame positioning during adhesion process.
Consistent Performance: Reliable operation ensures repeatable results in production.
Time Efficiency: Faster operation significantly increases daily production capacity.
Juste Machines Application Area
Medical equipment, Energy equipment, Semiconductor industry. Such as Products for glassess,
lense, pen, PVC ball, mug, toy, doll eye, sun glass, gift item, T-shirt, baby cloth, bra, eyeglass, toys,
umbrella, underwear, fruit apple, shoe, insole, watch dial number, garment, face mask, plastic cap,
safety helmet, hard safe hat, metal lens industry fabric etc.
Juste Prints Machines Application Area
Food and beverage, Toys, Mask Protective Equipment, Tableware, Beauty Makeup products,
Sports equipment, Lights & lighting, Electronic products, Washing and Cleaning products,
Household appliances, Textiles and clothing, Communication equipment, Auto Motorcycle parts.
Machines Packaging
Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Machine will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea.
Company Information
About Shenzhen Juste Machine Co., Ltd.
Established in 2002, Shenzhen Juste Machine Co., Ltd. has established itself as an innovative Pre-press equipment
manufacturer with comprehensive expertise in automated printing preparation technology.
Our specialized manufacturing capabilities include developing advanced screen stretching machine
solutions and complete pre-press systems for high-volume production environments.
As a leading screen stretcher machine factory, we combine technical innovation with industrial
manufacturing excellence. The JST-SC1215P pneumatic screen stretching machine demonstrates our
commitment to providing automated, high-efficiency equipment for printing businesses requiring
maximum production throughput and consistent quality. Our engineering philosophy emphasizes
delivering tangible productivity benefits through automation and precision design.
We serve diverse industrial printing applications including SMT film pasting, PCB manufacturing,
large-format advertising, and commercial printing sectors. Our comprehensive support includes
customization options, OEM services, and complete technical assistance to ensure optimal performance
for international clients using our automatic screen stretching machine equipment in demanding
production environments.
How To Order
How To Place Pneumatic Screen Stretching Machine order?
Initial Consultation: Contact our technical team to discuss your pneumatic screen stretching machine
requirements and production volume needs.
Production Analysis: Provide details about your screen sizes, daily production targets, and specific automation
requirements.
Technical Proposal: Our engineering team reviews your specifications and provides detailed recommendations
for the optimal automatic screen stretching machine configuration.
Order Confirmation: Upon approving the proposal, we issue a Proforma Invoice outlining all costs and
delivery terms.
Manufacturing Initiation: After payment confirmation, we begin production of your pneumatic
silk screen stretching machine.
Quality Verification: Comprehensive testing ensures your machine meets performance standards for
high-volume screen printing mesh stretcher applications.
Pre-Shipment Preparation: We provide inspection reports and operational documentation.
Shipping Coordination: We arrange secure packaging and transportation from Shenzhen port.
Delivery Execution: Your equipment arrives within 10-30 working days with complete shipment tracking.
Commissioning Support: Remote technical assistance available for machine setup and production optimization.
FAQ
Q1: What production advantages does the pneumatic system offer?
The JST-SC1215P pneumatic screen stretching machine reduces stretching time by approximately 60%
compared to manual machines, with the automated system capable of handling multiple screen frames
simultaneously, significantly increasing daily production capacity for high-volume operations.
Q2: How does the pneumatic tensioning ensure consistent results?
This automatic screen stretching machine utilizes precisely controlled pneumatic pressure to deliver even
tension distribution across all mesh surfaces, eliminating operator variability and ensuring consistent
35-45N/cm tension results throughout extended production runs.
Q3: What is the power requirement for this automated system?
The advanced pneumatic screen stretcher operates on standard 220V power with minimal 50W
consumption, making it energy-efficient while delivering industrial-grade performance suitable for
continuous production environments.
Q4: Where is your manufacturing facility located?
Our screen stretching machine production facilities are based in Dongguan, Guangdong,with strategic
access to Hong Kong ports for efficient international shipping and logistics management for global clients.
Q5: What warranty coverage is provided with this automated machine?
We offer comprehensive 12-month warranty protection on all our equipment, including this pneumatic
silk screen stretching machine, covering manufacturing defects and ensuring reliable performance in
high-volume production environments.
Q6: Is this machine suitable for industrial-scale production?
Yes, the JST-SC1215P automatic screen stretching machine is specifically engineered for industrial-scale
operations, with pneumatic automation, heavy-duty construction, and high-speed operation capabilities
ideal for SMT, PCB, and large-format printing applications requiring maximum productivity and consistent quality.
All machines must be passed by our QA inspection department before shipping.
