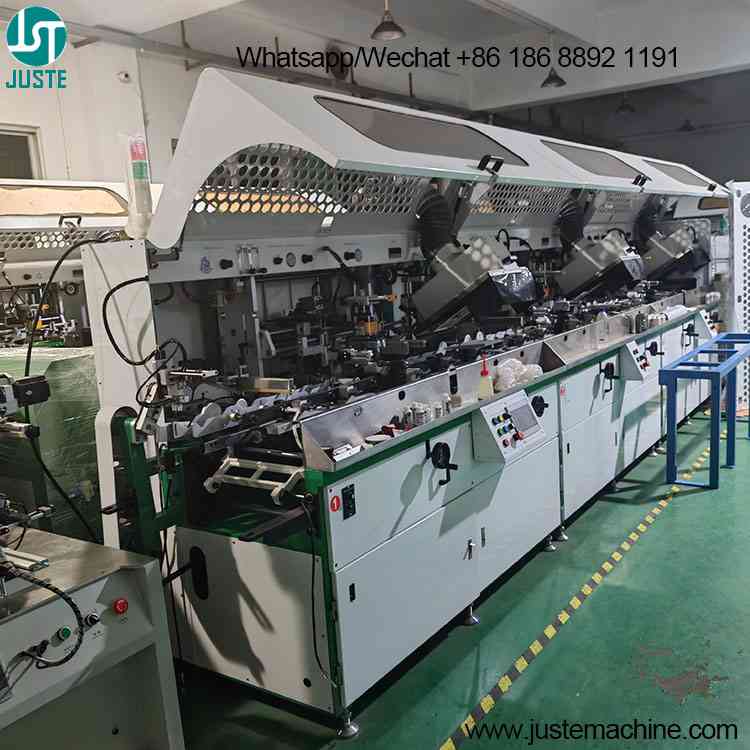

Bottle Screen Printing Machine
Fully Automatic Screen Printing Machine Bottle Cup Production Line
The JST-102 represents the pinnacle of efficiency in container decoration. This fully automatic lc bottle screen printing machine is engineered as a complete, turnkey production line designed specifically for high-volume bottle screen printing and cup screen printing. From the moment containers enter the automatic loading conveyor to the point they exit cured and ready for packaging, the JST-102 handles every step without manual intervention. It masters multi color screen printing with exceptional precision on cylindrical objects ranging from 90mm to 1000mm in diameter, achieving speeds up to 4,200 pieces per hour .
Ideal for plastic bottle screen printing , glass bottle screen printing, and cylindrical screen printing , this robust round screen printing machine integrates flame treatment for superior ink adhesion and instant UV curing for rapid drying, delivering a flawless, production-ready finish. It’s the ultimate high speed oval screen printing machine solution for beverage packaging, cosmetic industry, and promotional products manufacturers seeking to maximize output and minimize labor costs.
Maximize Production Efficiency & ROI : Achieve unparalleled output of up to 4,200 pieces per hour with our high speed curved screen printing machine . This continuous automatic operation drastically reduces cycle times and delivers a faster return on your investment.
Eliminate Labor Costs & Errors : The complete automatic loading and unloading system, guided by precision robotics and sensors, requires only one operator for oversight. This labor-saving design minimizes human errors and significantly reduces your long-term operational expenses.
Guarantee Consistent, High-Quality Prints : Experience zero registration error with our proprietary mechanical registration system. Unlike machines reliant on color sensors, the JST-102 uses custom fixtures for perfect alignment every time, ensuring brand-consistent quality on every plastic bottle, glass jar, or paper cup.
Enjoy Unmatched Operational Simplicity : Control the entire line with an intuitive Omron touchscreen interface. Set print parameters, monitor production, and perform changeovers with ease, reducing training time and empowering your team to manage complex multi color jobs confidently.
Products Description
| Brand | JUSTE |
| Model | JST-102 |
| Printing color | 1 Color / 2 Color / 3 Color / 4 Color |
| Max Printing diameter | Φ90mm-1000MM |
| Max Printing size | 200*300MM |
| Dynamic type | Pneumatic (need to connect air compressor) |
| Printing speed/hr | 4200 |
| Operation/hr | Automatic Loading, Locate Position, Unloading |
| Machine size | L1900xW1100xH1800MM |
| Weight | 1200KG |
| Wattage | 7.5KW |
| Power | AC380V 3Phase 50Hz |

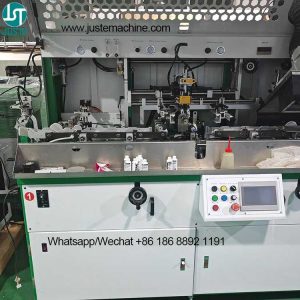

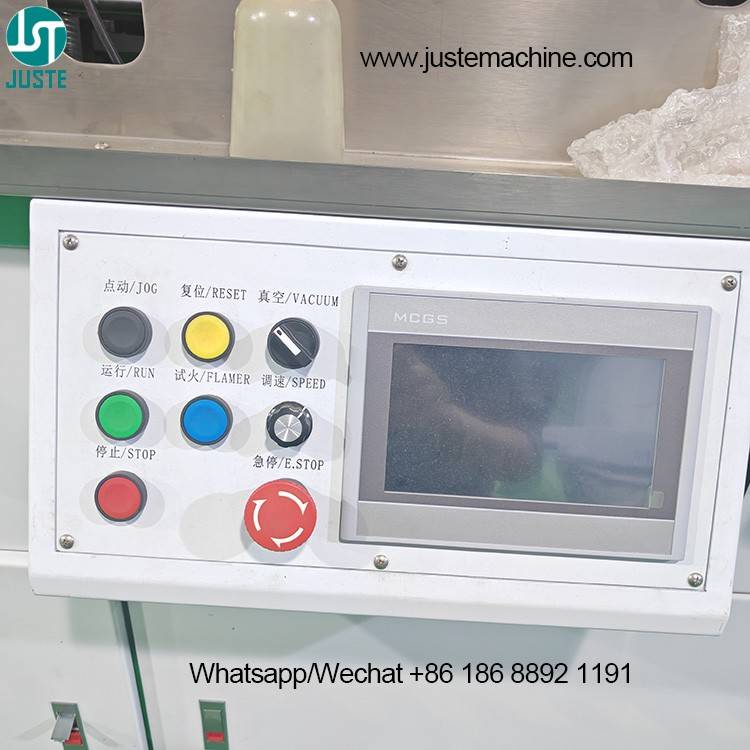

Control Panel for Automatic Plastic Bottle Screen Printer
This centralized touch screen control hub, powered by a Japanese Omron PLC, puts complete command of the square bottle screen printing machine at your fingertips. Intuitively set printing start/stop points, adjust speeds, monitor machine status, and manage job profiles without complex manual adjustments, ensuring rapid setup and consistent operation for cup or bottle production.
Omron PLC & Touchscreen Control : Features a high-reliability Omron programmable controller and user-friendly interface for precise, stable, and easy to operate machine management.
Simplified Job Setup : Enables quick configuration of printing parameters directly on the screen, drastically reducing changeover time between different paper cup or cosmetic bottle jobs.
Real-Time Production Monitoring : Provides live data on output counts, system status, and error alerts, allowing for proactive management of your screen printing production line.

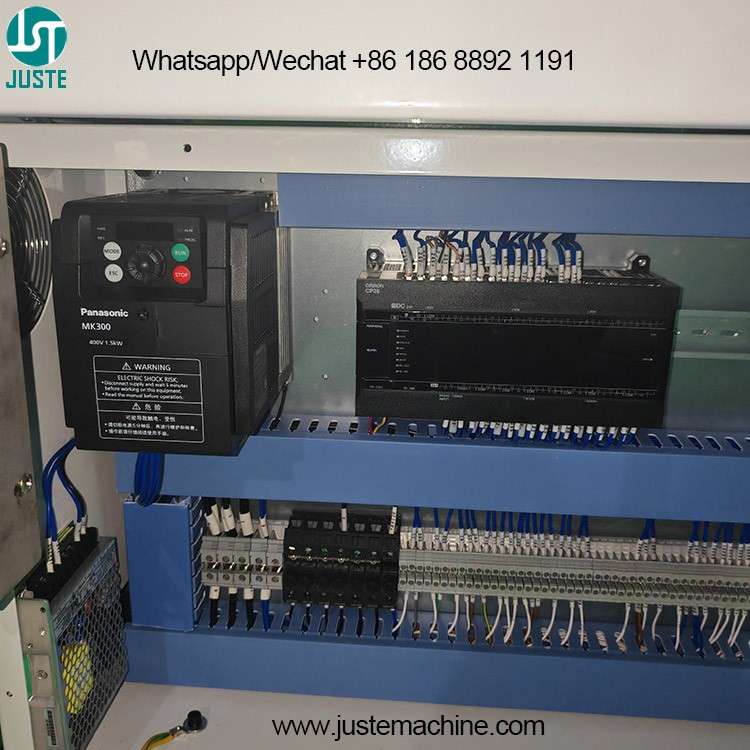

PLC Control System for PET Bottle Screen Printer Machine
The industrial-grade PLC control system is the reliable “brain” of the JST-102. It orchestrates the precise synchronization of the automatic loading robot, flame treatment, printing stations, and UV curing units , guaranteeing seamless, uninterrupted operation for high-volume cylindrical screen printing.
Precision Sequence Control : Ensures perfect timing between all mechanical actions, from part handling to ink application, which is critical for flawless multi color registration.
High Stability & Durability : Built with premium Omron components, this system guarantees long-term, trouble-free performance in demanding factory environments.
Facilitates Automation : This robust control core is what enables the machine’s fully automatic functionality, transforming your decorating process into a hands-off operation.

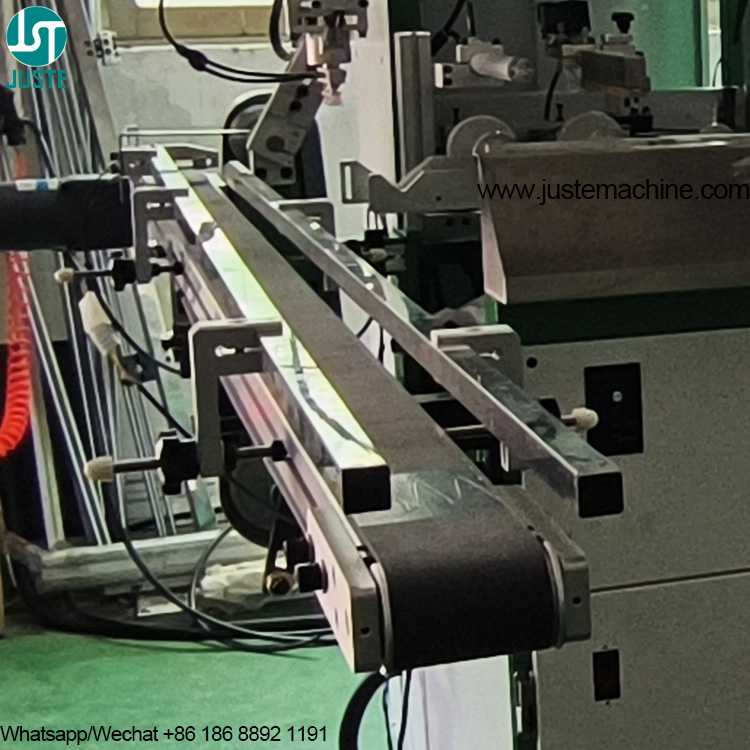

Automatic Loading Conveyor Shampoo Bottle Screen Printing Machine
This robust loading conveyor is the starting point of your automated production line. It reliably feeds a continuous stream of empty containers—be they plastic bottles, glass jars, or paper cups—in an organized queue towards the pick-up point, ensuring a non-stop supply for the fully automatic printing process and maximizing machine uptime.
Ensures Continuous Production Flow: Provides a steady, organized supply of products to the robotic arm, eliminating bottlenecks and enabling the machine to sustain its rated high-speed output.
Reduces Manual Handling: Automates the initial feeding process, a key contributor to the system’s overall labor-saving design by removing a repetitive manual task.
Highly Adaptable: Can be configured in length and speed to match your factory layout and production pace for seamless integration.

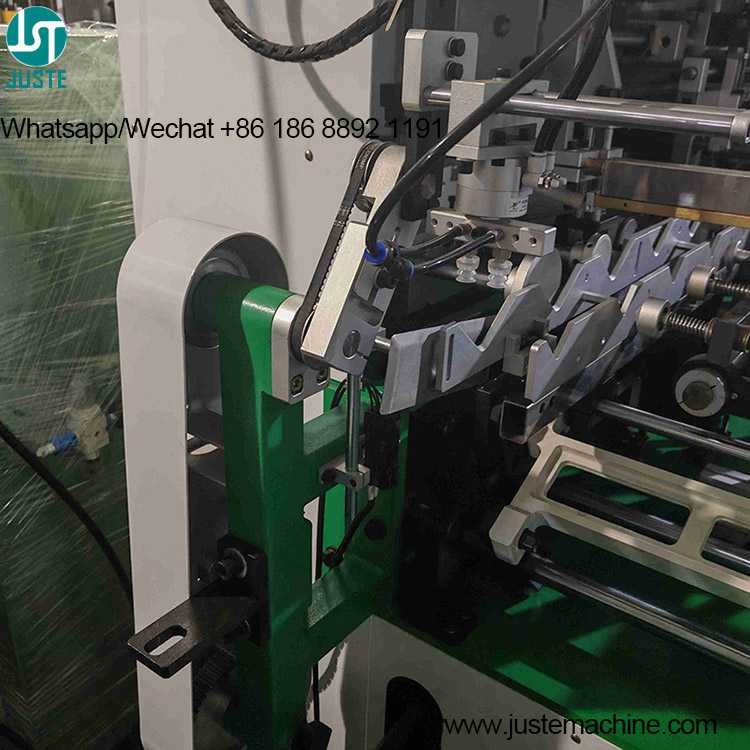

Automatic Loading Robotic Arm Detergent Bottle Screen Printing Machine
This precision pneumatic robotic arm performs the critical first transfer. It automatically picks up each container from the end of the loading conveyor and places it securely onto the machine’s rotating fixture with consistent accuracy, initiating the hands-free printing cycle for unparalleled efficiency.
Enables True Full Automation: This component is essential for achieving the fully automatic operation from start to finish, requiring no operator intervention for part loading.
Gentle and Precise Handling: Engineered with pneumatic control for soft yet secure gripping, it protects delicate items like cosmetic bottles or glass containers from damage during transfer.
Synchronized for Maximum Speed: Its fast, reliable cycle time is perfectly timed with the main machine, ensuring no loss in the overall production speed of up to 4,200 pieces per hour.

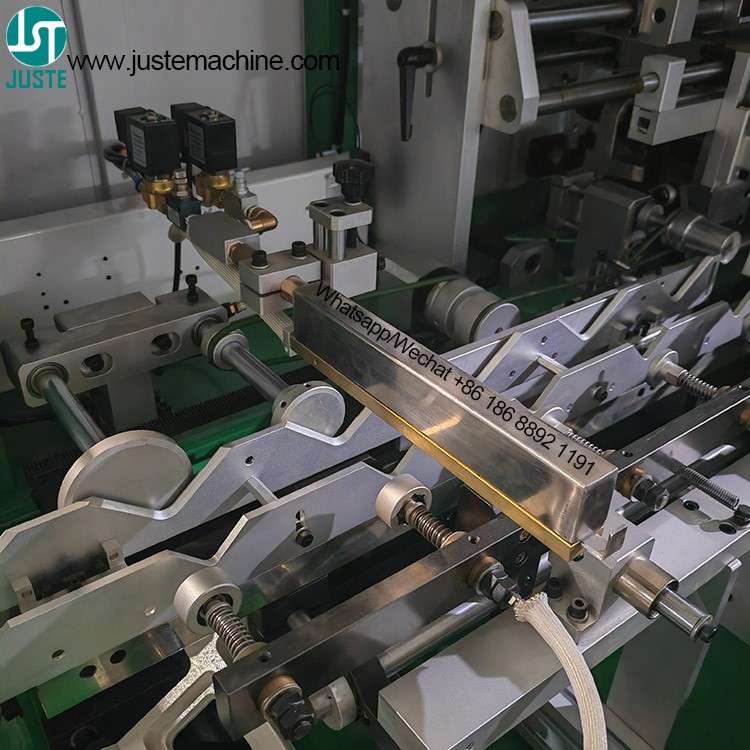

Flame Treatment Station for Lotion Bottle Screen Printing Machine
A critical pre-press process for non-porous materials like PET and PP. This station uses a controlled flame to modify the surface energy of containers, dramatically improving the adhesion and longevity of the UV ink. This step is essential for achieving scratch-resistant prints on plastic bottle and cosmetic tube applications.
Superior Ink Adhesion: Prepares plastic surfaces to ensure ink bonds permanently, reducing smudging or peeling in end-use conditions.
Adjustable Treatment: Features manual control knobs for precise adjustment of gas/air mix, allowing optimization for different plastic materials.
Enhanced Print Quality: This process is key to achieving the professional, durable print finish demanded by the beverage packaging and cosmetic industry.

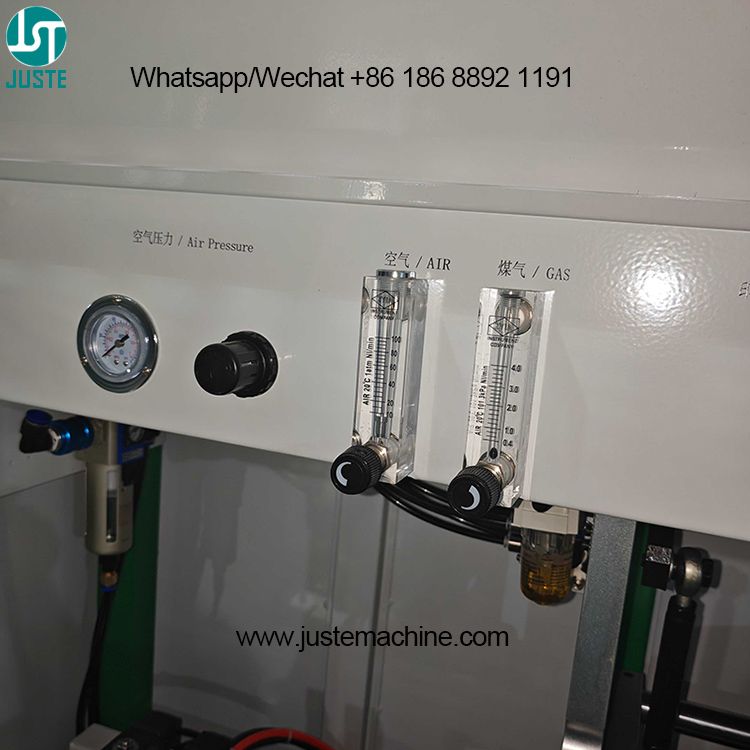

Manual Control Panel Adjustment Beverage Can Screen Printing Machine
This centralized manual control station puts critical process parameters at your fingertips. It allows operators to make fine-tuned adjustments to the pneumatic pressure of the printing squeegee and the gas/air mixture for the flame treatment station, enabling optimal setup for different inks and a wide range of plastic container materials.
Precise Print Quality Control: The pneumatic control valves let you adjust squeegee pressure and angle for perfect ink deposition on everything from delicate cosmetic bottles to sturdy buckets.
Optimized Surface Treatment: Independent knobs for gas and air allow precise calibration of the flame treatment intensity, which is crucial for ensuring superior ink adhesion on various PET and PP surfaces.
Simplified Process Tuning: Provides immediate, tactile feedback for process optimization without navigating digital menus, facilitating quicker job changeovers and high-precision results.

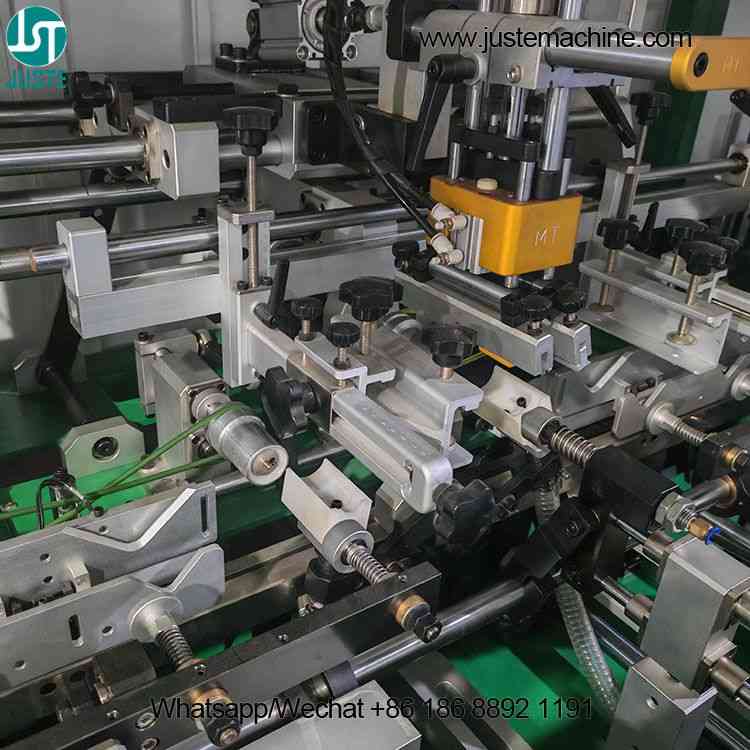

Printing Unit Cylindrical Glass Jar Screen Printing Machine
The heart of the conical screen printing machine. Here, a servo motor drives the precision left-right movement of the print head. The custom-designed fixture rotates the container while the squeegee descends, forcing UV ink through the mesh screen onto the product with exceptional accuracy and consistency.
Servo-Driven Precision: A Panasonic inverter and servo motor ensure exceptionally accurate and repeatable screen movement, which is fundamental for high-precision printing.
Mechanical Registration System: Achieves zero registration error by using product-specific fixtures rather than optical sensors, guaranteeing perfect alignment for multi color jobs.
Pneumatic Squeegee Control: Allows for precise adjustment of printing pressure and angle via manual valves, ensuring optimal ink transfer for different container shapes.

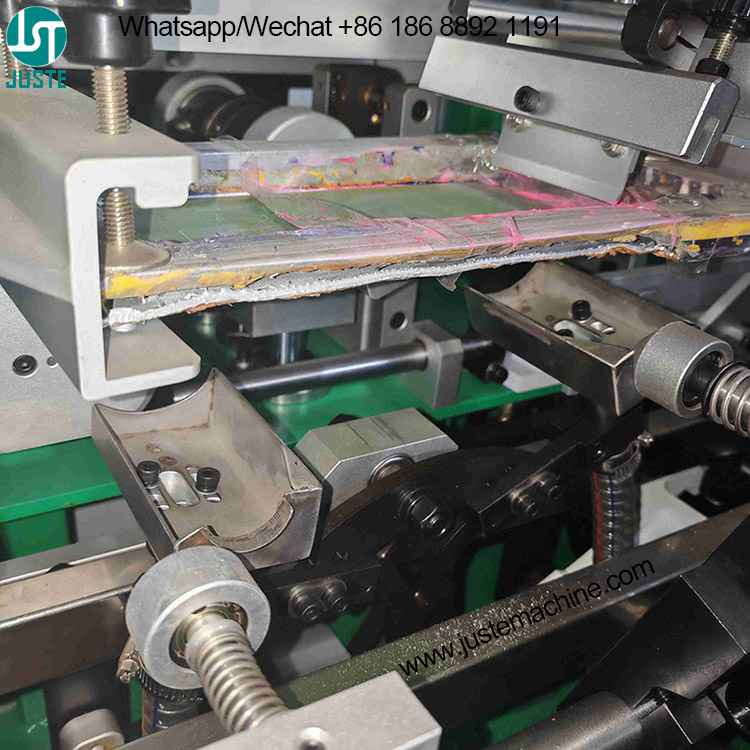

Screen Frame with UV Ink for Automatic Metal Tin Screen Printing Machine
This is the stencil that defines your print design. Mounted securely in the print head, the tensioned mesh screen holds UV ink, which is precisely deposited onto the container surface by the action of the squeegee. The design allows for vibrant, opaque prints ideal for branding cups, bottles, and tubes.
Vibrant Color Output: Holds and transfers UV ink efficiently, producing sharp, opaque logos and graphics that stand out on shelves.
Durable Construction: Built with a robust aluminum frame to withstand the repeated cycles of a high-speed production environment.
Customizable for Any Design: Each screen is made to your specific artwork, enabling complete customization for OEM and brand-specific needs.

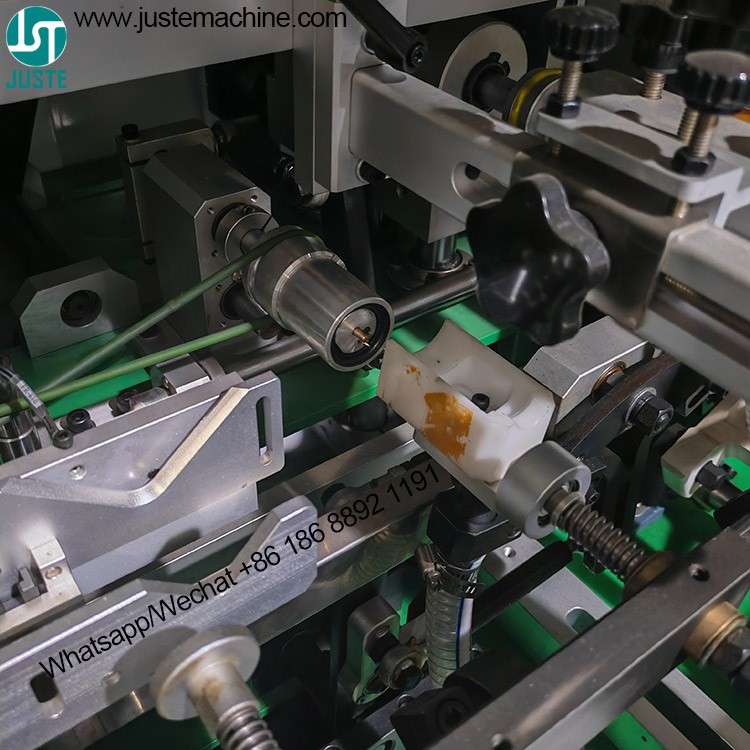

Custom Fixture for Medical Tube Screen Printer
The cornerstone of the JST-102’s legendary accuracy. We engineer these custom fixtures specifically to match the exact contours, grooves, or threads of your product—whether it’s a paper cup, perfume bottle, or paint bucket. It physically locates the part, eliminating reliance on fallible visual sensors.
Absolute Registration Accuracy: This mechanical registration method guarantees zero registration error between colors, a critical advantage for complex multi color designs.
Perfect for Odd Shapes: Can be tailored to securely hold conical, cylindrical, or irregular containers, demonstrating the machine’s versatile customized capability.
Enables High Speed: By providing a fast, physical locating method, it allows the machine to achieve its maximum 4,200 pcs/hr speed without sacrificing precision.

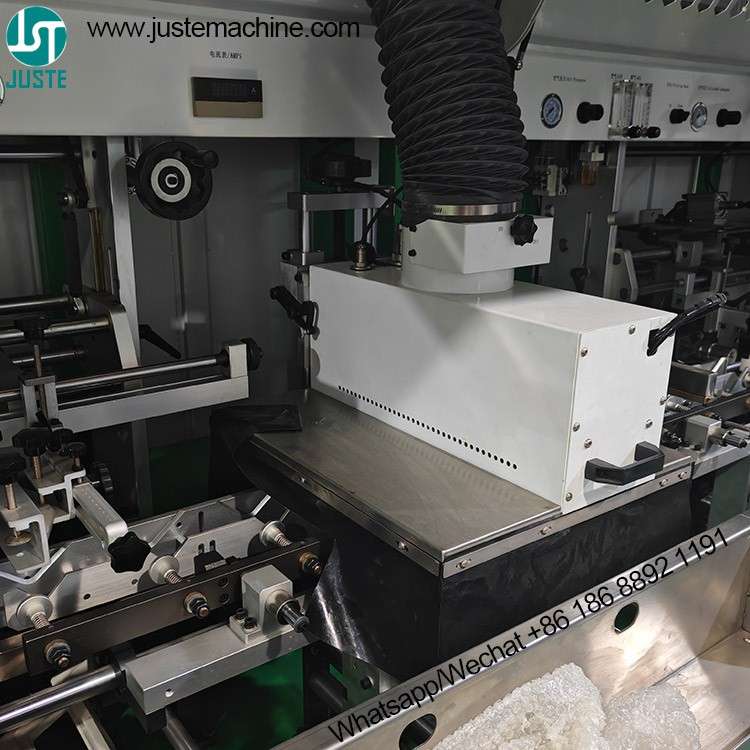

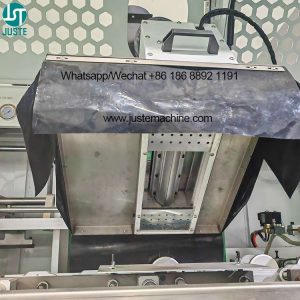

UV Drying Lamp for Chemical Bottle Screen Printing Machine
Instantly solidifies the printed UV ink as the product passes through. The UV curing station emits high-intensity UV light, which triggers a photochemical reaction in the ink, transforming it from a liquid to a solid, durable film in a fraction of a second.
Instant Drying: Cures ink on contact, allowing for immediate handling, stacking, or packaging, which is essential for high-speed inline production.
Space-Saving Design: Integrated directly into the machine footprint, eliminating the need for long, separate drying tunnels.
Produces Durable Finishes: Creates a hard, scratch-resistant, and solvent-resistant print layer, ideal for products in the cosmetic and beverage industries.

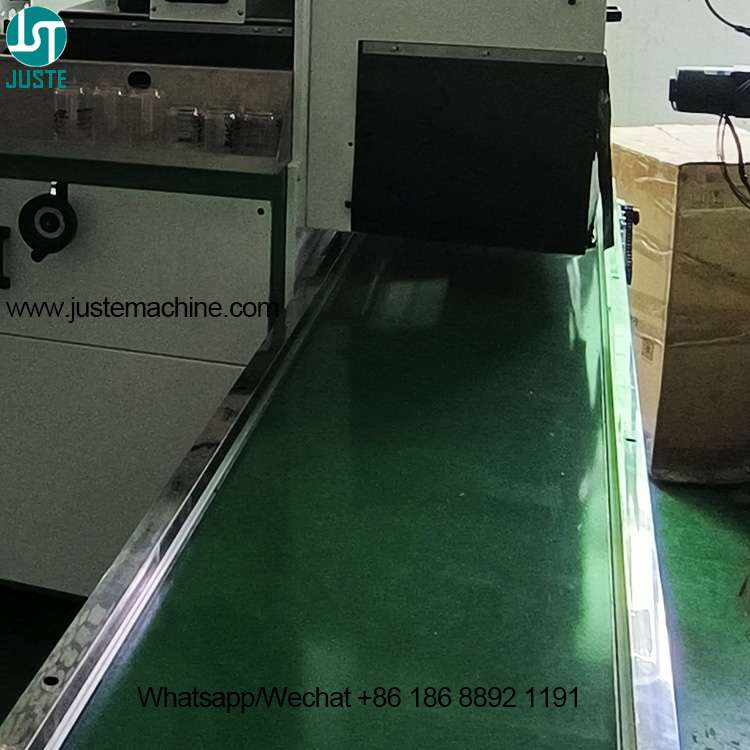

Automatic Unloading Conveyor UV Screen Printing Machine
The final stage of the automated workflow. Finished, cured products are gently transferred off the main carriage onto this unloading conveyor, which carries them away for packaging or further assembly. This completes the closed-loop, fully automatic production cycle.
Completes the Automated Line: Enables a true end-to-end production cell with no manual offloading required.
Organized Output: Presents finished goods in an orderly stream for easy collection, counting, or automated packaging system integration.
Maximizes Labor Efficiency: Along with auto-loading, this system is fundamental to the machine’s core promise of being a labor-saving solution.
JUSTE Machine Application Area
The JST-102 automatic screen printing machine is the versatile core of modern container decoration lines. Its unique combination of high-speed automation, high-precision mechanical registration, and compatibility with a vast range of sizes (Φ90mm-1000mm) makes it a single, cost-effective solution for diverse manufacturing needs. Whether you are printing vibrant logos on promotional products, batch codes on industrial containers, or elegant designs on cosmetic packaging, this machine transforms your decorating process into a reliable, high-output operation. It seamlessly integrates into existing production flows for beverage packaging, food container manufacturing, and home chemical product lines, delivering consistent quality that enhances brand value.
By Material:
Plastics: PET/PP Plastic Bottles, Cosmetic Tubes, Caps & Closures, Buckets & Jerry Cans, Cups (Plastic & PP), Food Containers.
Glass: Glass Bottles (perfume, beverage), Jars, Vials, Decorative Containers.
Metal: Aerosol Cans, Metal Tubes, Aluminum Bottles, Small Barrels.
Paper & Composite: Paper Cups, Cardboard Tubes, Fiber-based Containers.
By Industry:
Beverage Packaging: Water/Soda/Juice Bottles, Glass Bottles for beers and spirits, Cups for dairy and drinks.
Cosmetics & Personal Care: Perfume Bottles, Lipstick Tubes, Cream Jars, Shampoo Bottles, Deodorant Containers.
Food & Dairy: Yogurt Cups, Sauce Bottles, Spice Jars, Paper Cups for takeaway.
Promotional Products & Gifts: Custom Mugs, Travel Bottles, Candles in jars, Corporate gift items.
Chemicals & Home Care: Detergent Bottles, Paint Buckets, Lubricant Cans, Fire Extinguisher labeling.
Machines Packaging
Print Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Information
Shenzhen Juste Machine Co., Ltd.
As a leading screen printer manufacturer and factory based in Dongguan, China, JUSTE has been at the forefront of printing innovation since 2002. We are not just a supplier; we are your strategic partner in automation. Our core expertise is developing high-quality, reliable custom screen printer solutions, from automatic cylindrical screen printing machines to complete pre/post-press systems.
We understand your challenges: the need for higher production efficiency, lower labor costs, and flawless print quality to stay competitive. That’s why every JST-102 is engineered with premium global components (Omron, SMC, Schneider) and built to deliver stable performance day in, day out. We support full OEM services and customized machine design to fit your exact product line—whether you need a plastic cup screen printer or a system for glass bottle decoration. Our dedicated engineering and QA teams work with you from concept to installation, backed by a comprehensive 1-year warranty and lifelong technical support. Choose JUSTE for a partnership that delivers more than a machine—we deliver a measurable return on investment and peace of mind.
Pad Printer, Screen Printer, UV Dryer, Post-Press and Pre-Press equipment for you to choose.
How To Order
How to place customize High Precision Screen Printing Machine order?
Step 1: Initial Inquiry: Contact our sales team via email or WhatsApp. Share details about your product, desired output, and any special requirements.
Step 2: Solution & Quotation: Our engineers will analyze your needs and provide a detailed proposal for a custom screen printer solution, including a transparent price estimate.
Step 3: Approval & PI: Review and approve the quote. We will then issue a Proforma Invoice (PI) with clear payment terms.
Step 4: Secure Payment: Confirm the PI and complete the payment to initiate the manufacturing schedule.
Step 5 : Production & QA: We source materials and build your machine. Before shipment, our QA department performs rigorous testing and provides a video inspection report for your review.
Step 6 : Shipping & Delivery: We professionally pack and ship your machine from Shenzhen port. Expect delivery within 10-30 working days, with full documentation support.
FAQ
Q1 : Are you a factory or a trading company?
A: We are a professional manufacturer with our own factory in Dongguan, China. We specialize in producing automatic rotary screen printing machine and offer OEM services directly to global clients.
Q2 : Can this machine print on both bottles and cups?
A: Absolutely. The JST-102 is a versatile cylindrical water bottle printing machine . By using our customized fixtures, it can perfectly handle plastic bottles, glass bottles, paper cups, and various tubes, making it a cost-effective solution for multiple product lines.
Q3 : What is the guarantee for print registration accuracy?
A: We guarantee zero registration error through our proprietary mechanical registration system. It uses precision custom fixtures that physically locate the product, eliminating the inaccuracy common in sensor-based systems and ensuring perfect multi color alignment.
Q4 : Do you provide a warranty and after-sales support?
A: Yes. We provide a comprehensive 1-year warranty on the entire machine. We also offer lifelong technical support, remote assistance, and supply genuine spare parts like squeegees and pneumatic components to ensure your stable performance.
Q5 : How do we handle machine setup and training?
A: We provide detailed English manuals, installation guides, and HD video instructions. For complex setups, we offer professional installation and on-site training services to ensure your team can operate the fully automatic line efficiently and safely.
Q6 : What is the lead time for a customized machine?
A: Standard model lead time is 15-20 working days after deposit. For fully customized solutions involving specific fixtures or special functions, lead time is typically 25-35 working days. We always provide a clear timeline upon order confirmation.
All machines must be passed by our QA inspection department before shipping.
