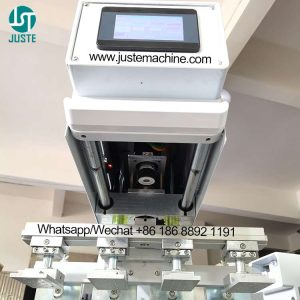

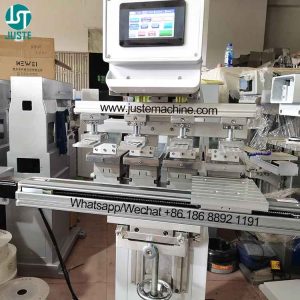

Fully Electric 4 Color Pad Printer With Servo Shuttle Ink Tray
Meet the JUSTE JST-P4-FE175, a precision-engineered 4 color pad printing machine designed to revolutionize your production line. This fully electric pad printer delivers exceptional registration accuracy for complex multi-color jobs on a vast range of products, from cosmetic containers and promotional products to electronic components. Engineered for reliability and ease of use, this semi auto pad printer significantly boosts your production efficiency while reducing operational costs.
Its robust construction and advanced servo motor drive system ensure consistent, high-quality output shift after shift. Ideal for pad printing machine for bottles, eyewear, toys, and LED bulbs, this machine is your cost-effective solution for achieving professional, durable prints and maximizing your return on investment.
Products Description
| Brand | JUSTE |
| Model | JST-P4-FE175 |
| Machine Type | 4 Color Ink tray |
| Printing color | 4 Color / customize |
| Jig/Mould QTY | 1 / customize |
| Max plate size | 100*150 / 100*200 / Custoimize |
| Max print size | 70*120mm / 70*170mm/ Custoimize |
| Pad Slide distance | 145MM / 200MM |
| Printing speed/hr | 500-2500 |
| Mode of operation | Semi auto |
| Machine size | 700*850*1380MM |
| Pad Print Weight | 140KG |
| Wattage | 3KW |
| Power | 220V/ 50HZ-110V/60HZ |

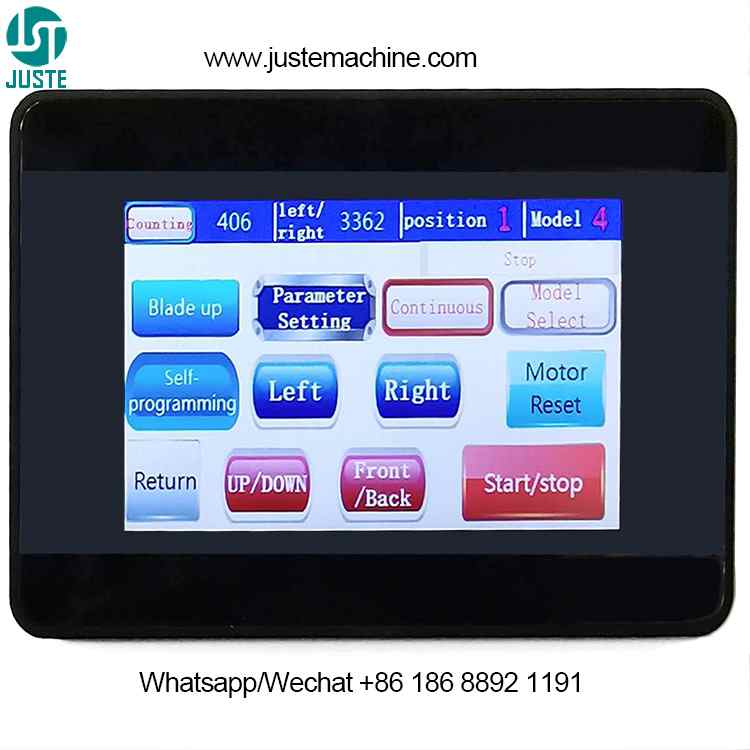

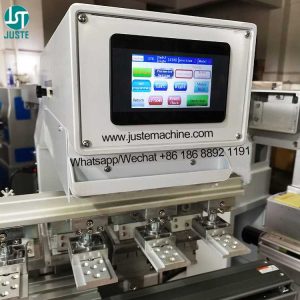

Control Panel With Counter Display For Fully Electric Pad Printer
The central command unit of the JST-P4-FE175, this control panel features a digital counter and intuitive interface, allowing for precise adjustment of printing parameters and easy monitoring of production counts. It puts complete command over your semi auto pad printer at your fingertips, ensuring repeatable settings and streamlined operation for enhanced workflow efficiency.
Precision Cycle Control: Easily set and monitor print cycles with the integrated digital counter, ensuring consistent batch production for items like medical tubes or bottle caps.
User-Friendly Interface: The logically arranged controls minimize operator learning curve, allowing for quick setup and adjustment of this 4 color pad printing machine.
Operational Data at a Glance: Keep track of total production output directly, facilitating accurate production planning and management.

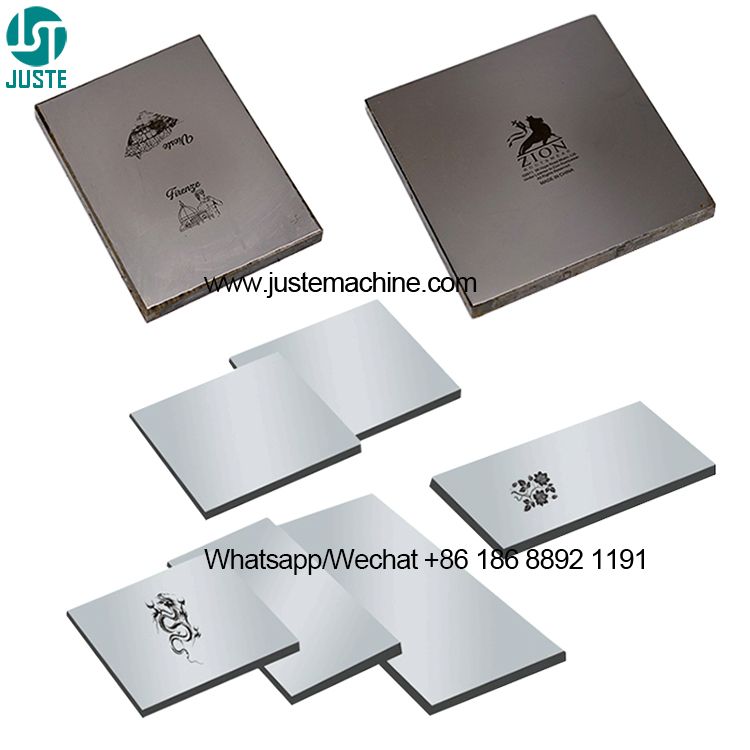

Customizable Cliche Plate For Pad Printing Machine
This is the heart of your design transfer. The cliche plate, made from high-grade steel, is precisely engraved with your logo or artwork using laser or etching technology. It is fully customizable to accommodate any pattern up to the machine’s maximum plate size, ensuring your designs are reproduced with sharp detail and accuracy on every product.
Laser-Engraved Precision: Guarantees crisp, clean, and durable artwork cavities for high-definition printing on toys and electronic parts.
Wide Customization Scope: Available in standard sizes (100x150mm / 100x200mm) or made-to-order, perfectly adapting this pad printing machine for eyewear or other specific applications.
Long Service Life: Manufactured from durable materials to withstand prolonged use, providing a reliable and cost-effective printing solution.
Silicone Printing Pad Head For Pad Printer
The silicone pad is the key component that picks up ink from the engraved cliche plate and transfers it perfectly onto the target object. Its flexibility allows it to conform to curved, textured, or irregular surfaces, making this pad printing machine for golf balls or cosmetic containers highly effective.
Superior Material Elasticity: Ensures complete ink pickup from the plate and consistent release onto various product contours, from flat surfaces to complex shapes.
Custom-Formed Designs: Silicone pads can be tailored in shape, size, and hardness to match the specific requirements of your product, be it a phone case or a keyboard key.
High Durability & Chemical Resistance: Withstands repeated use and contact with various inks, maintaining its performance and integrity over time.
Height Adjustable Printing Work Table
This robust work table is engineered to securely hold your products during the printing process. Its height is easily adjustable via a manual screw mechanism, allowing you to perfectly align different product heights with the silicone pad for optimal pressure and print quality.
Precise Vertical Adjustment: The fine-threaded screw allows for micro-adjustments, ensuring the perfect print contact distance for everything from thin labels to tall bottles.
Secure Product Placement: Provides a stable and level platform for your jig or product, crucial for achieving high-precision registration in multi-color printing.
Universal Compatibility: Designed to accommodate a wide range of custom fixtures, making the machine adaptable for pad printing machine for shoes or industrial components.

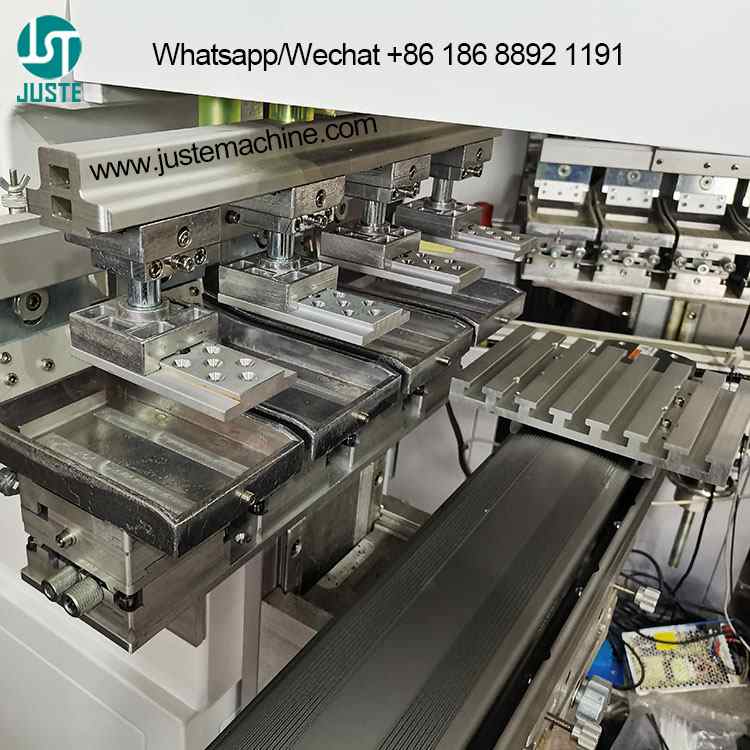

Servo Driven Shuttle System For Multi Color Printing
This is the core of the multi-color printing capability. The servo shuttle accurately moves the product-bearing jig between different color stations. After the first color is applied, the shuttle seamlessly transports the fixture to the next printing head position, ensuring perfect alignment for subsequent colors.
High-Speed Precision Movement: The servo motor driven shuttle ensures fast and accurate positioning, critical for maintaining high production efficiency in a 4 color pad printing machine.
Perfect Color Registration: Enables precise multi color pad printing by reliably moving the product between stations with minimal vibration or deviation.
Smooth & Reliable Operation: Enhances the overall stability and speed of the printing cycle, contributing to consistent output quality.
High Precision Servo Motor For Pad Printer
The servo motor is the powerhouse behind the machine’s accuracy and reliability. It provides precise control over the movement of the shuttle and other mechanical functions, eliminating the inconsistencies associated with pneumatic systems and ensuring smooth, repeatable operation.
Exceptional Positioning Accuracy: Delivers the pinpoint precision required for complex multi color pad printing on items like watch dials and promotional products.
Energy Efficient & Quiet: As a fully electric pad printer, it consumes power only during movement, leading to lower energy costs and a quieter working environment compared to pneumatic machines.
Enhanced Durability & Low Maintenance: With fewer mechanical wear parts than pneumatic systems, it ensures long-term reliability and reduces maintenance needs.
Manual Lifting Screw For Worktable Height Adjustment
This simple yet vital component allows for the fine-tuning of the worktable height. By rotating the handle, operators can easily raise or lower the platform to achieve the ideal print gap for different product sizes, ensuring optimal ink transfer from the silicone pad to the object.
Effortless Manual Control: Provides quick and tool-free adjustment of the worktable, facilitating fast changeover between different production runs.
Stable and Secure Locking: Once set, the mechanism maintains the height setting securely throughout the printing operation, preventing any drift or misalignment.
Robust Construction: Built to withstand constant use, ensuring long-term precision and reliability in your printing process.

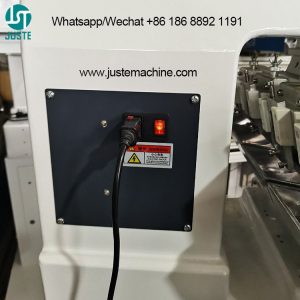

Accessories Set Hex Wrench Power Cable
We ensure your pad printing machine is ready for operation upon arrival. The package includes a comprehensive set of accessories such as hex wrenches for maintenance and a power cable, providing everything you need to get started with basic setup and upkeep.
Quick Setup: Includes all essential tools for initial assembly and routine maintenance, minimizing machine downtime.
Convenience: Having the correct tools on hand simplifies the process of changing silicone pads or performing minor adjustments.
Factory Support: Supplying these accessories reflects our commitment to providing a complete and user-friendly pad printer solution.
Foot Pedal Switch For Hands Free Operation
The foot pedal allows the operator to initiate a print cycle without using their hands, thereby increasing operational efficiency and safety. This leaves the operator’s hands free to load and unload products, streamlining the workflow for the semi auto pad printer.
Hands-Free Cycle Activation: Improves workflow efficiency by allowing the operator to focus on product handling while controlling the machine with a foot press.
Enhanced Operational Safety: Reduces the need to reach into the machine’s working area, minimizing potential risks.
Durable Ergonomic Design: Built for heavy-duty use and designed for comfort during extended operation periods.
Silicone Printing Pad For Various Shapes
The silicone pad is the key component that transfers ink from the plate to your product. Its flexible nature allows it to pick up ink from the flat cliche plate and then conform to curved, textured, or irregular surfaces on items like led bulbs or cosmetic containers.
Superior Material Elasticity: High-quality silicone ensures excellent ink release properties and long-lasting durability without deformation.
Custom Shapes Available: We offer customizable pads in various shapes and hardness levels to perfectly match the contour of your specific product for optimal ink transfer.
Essential for 3D Objects: This component makes the pad printer uniquely capable of decorating complex, non-flat surfaces that other printing methods cannot handle.

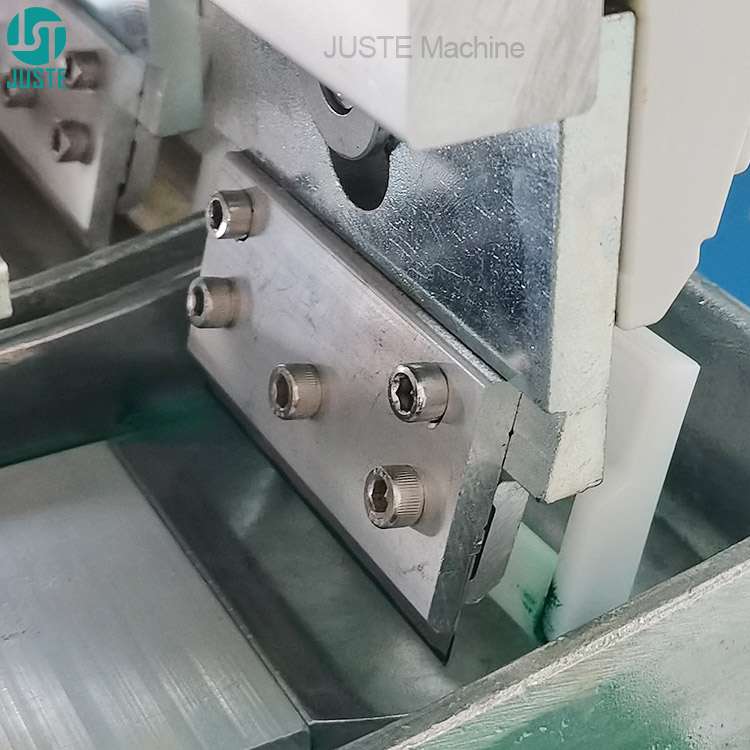

Ink Blade For Pad Printing Machine
The Ink Blade is a critical part of the inking system. After the ink knife covers the cliche plate with ink, the Ink Blade moves across the plate, meticulously removing all excess ink and leaving it only within the etched cavities of the design.
Clean Ink Removal: Ensures a perfectly clean printing surface by scraping away all excess ink, which is crucial for achieving sharp, defect-free prints.
Precision-Ground Blade: Manufactured to a exact tolerance for a perfect fit and consistent performance against the cliche plate.
Long-Lasting Performance: Made from high-wear-resistant materials to maintain its sharp edge and effectiveness over a long service life.

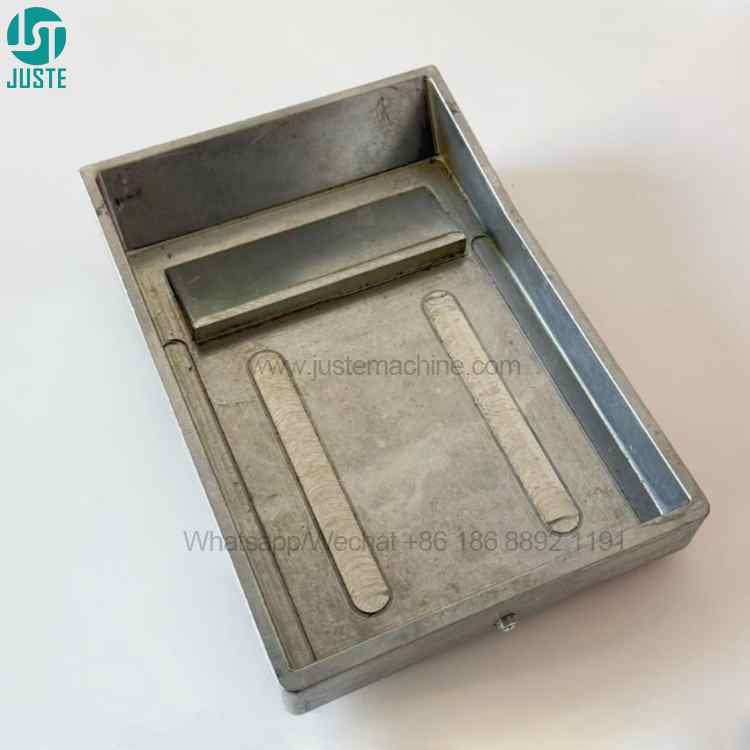

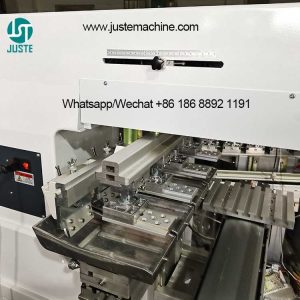

Ink Tray For 4 Color Pad Printing Machine
The ink tray holds the printing ink for each color station. In this machine’s design, it serves as the reservoir from which the ink knife draws to flood the cliche plate, ensuring a consistent and controlled supply of ink for each print cycle.
Controlled Ink Supply: Provides a consistent volume of ink to the printing process, contributing to uniform color density and print quality.
Easy to Clean & Maintain: Designed for simple removal and cleaning, facilitating quick ink color changes and routine maintenance.
Corrosion-Resistant Material: Typically made from stainless steel or other non-reactive materials to prevent contamination and degradation of inks.
Ink Retrun Blade For Flooding Cliche Plate With Ink
The Ink Retrun Blade functions to flood the engraved cliche plate with a fresh layer of ink from the ink tray before each printing cycle. This ensures the design cavities are fully and evenly filled with ink, ready for pickup by the silicone pad.
Uniform Ink Coverage: Spreads a consistent and even layer of ink across the entire cliche plate, which is fundamental for achieving high-quality, consistent prints.
Durable and Stable Construction: Engineered to maintain its flatness and integrity for reliable performance cycle after cycle.
Seamless System Integration: Works in perfect harmony with the scraper and ink tray to create a highly efficient and reliable inking system.
Juste Prints Machines Application Area
The JST-P4-FE175 4 color pad printing machine is the ultimate versatile printing solution, engineered to decorate an immense variety of materials and products across numerous industries. Its ability to handle curved, uneven, and fragile surfaces with consistent, high-quality prints makes it an indispensable asset for businesses aiming to enhance their product branding and decoration capabilities with a single, cost-effective investment.
By Material:
Plastics: Ideal for plastic bottle caps, cosmetic containers, syringes, toys, keyboards, phone cases, LED bulb housings, and various promotional products.
Metals: Perfect for printing on aluminum bottles, lighter casings, tools, watch dials, and industrial components.
Glass: Effectively decorates perfume bottles, glass jars, beverage bottles, and laboratory glassware.
Ceramics: Capable of printing on ceramic plates, mugs, tiles, and decorative items.
Rubber & Silicone: Used for printing on silicone bracelets, hockey pucks, shoe soles, and various rubber parts.
By Industry:
Beverage & Cosmetic Packaging: A perfect pad printing machine for bottle labeling (neck, body), cosmetic tube decorations, and lipstick case printing.
Promotional Products & Gifts: The go-to machine for pad printing on pens, keychains, golf balls, poker chips, and other custom corporate gifts.
Electronics & Appliances: Used for printing logos and indicators on remote controls, keyboards, washing machine panels, and USB drives.
Medical & Pharmaceutical: Suitable for printing graduations and logos on medical tubes, syringes, and catheter housings.
Apparel & Accessories: Effectively prints on eyeglass frames, sunglasses, hard hats, and safety gloves.
Machines Packaging
Print Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Information
Shenzhen Juste Machine Co., Ltd.
As a professional pad printing machine manufacturer and supplier based in Shenzhen, China, we have built our reputation since 2002 on delivering innovative and reliable printing equipment. Our core expertise lies in the development and production of a comprehensive range of automated machinery, including Pad Printing Machines, Silk Screen Printing Machines, and UV Curing Systems.
We understand that your business needs more than just a machine; it needs a solution that boosts productivity, ensures quality, and delivers a strong return on investment. That’s why we focus on creating high-precision, durable, and user-friendly equipment like the JST-P4-FE175 fully electric pad printer. Whether you need a standard model or a custom solution, our engineering team is dedicated to providing the right equipment for your specific application, be it for beverage packaging, cosmetic containers, or electronic components.
We pride ourselves on offering factory-direct prices, comprehensive OEM support, and a solid 1-year warranty, backed by a global logistics network for efficient delivery. Choose JUSTE as your strategic partner to elevate your production capabilities.
How To Order
How To Place customize Fully Electric 4 Color Pad Printing Machine order?
Phase 1: Consultation & Quotation
Initial Contact: Reach out to our sales team via email, WhatsApp, or other provided channels to discuss your project.
Specify Your Needs: Provide details about the products you will be printing (e.g., bottles, toys, eyewear), desired printing speed, and any specific functional requirements.
Receive Your Quote: Our engineers will review your specifications and provide a detailed price estimation and solution recommendation.
Phase 2: Order Confirmation & Production
Proforma Invoice (PI): Upon your approval of the quote, we will issue a PI outlining all costs and terms.
Secure Payment: Confirm the PI and proceed with payment to officially place your order.
Production Start: We immediately book materials and begin the assembly of your semi auto pad printer.
Phase 3: Quality Assurance & Delivery
Rigorous Quality Inspection: Before shipping, our QA department conducts a thorough inspection and performance test. We provide a video report for your peace of mind.
Pre-Shipment Documentation: You will receive all necessary manuals and operation guides.
Global Shipping: We arrange secure shipment from the port of Shenzhen, China.
Delivery: Expect to receive your goods within 10-30 working days, depending on your location.
Ready to boost your printing capabilities? Contact us today for a free consultation and quotation!
FAQ
Q1: Are you a direct manufacturer or a trading company?
A: We are a professional and experienced pad printing machine manufacturer and factory located in Shenzhen, China. We oversee the entire process from R&D and production to sales and support, ensuring high quality and competitive pricing.
Q2: Can the machine be customized with our logo and specifications?
A: Absolutely. We strongly support OEM and customized solutions. We can print your brand logo on the machine and tailor various aspects, including the cliche plate size, silicone pad shape, and jig design, to meet your specific product needs, whether for plastic bottles or cosmetic containers.
Q3: What is the warranty on your machines?
A: We offer a comprehensive 1-year warranty on all our machines, including this fully electric pad printer. This warranty covers manufacturing defects and ensures you receive a reliable and durable piece of equipment for your small business or industrial needs.
Q4: How do you ensure the quality of the machines before shipment?
A: We implement strict quality control processes. Every machine undergoes rigorous testing and a final inspection by our dedicated QA department. We can provide a video outgoing-inspection report to demonstrate the machine’s functionality and print quality before it is shipped.
Q5: What is your nearest shipping port?
A: We ship globally from our nearest port in Shenzhen, China, which allows for efficient and cost-effective logistics to our international clients.
Q6: Is the machine easy to set up and operate?
A: Yes. Our semi auto pad printer is designed for easy operation. It comes with a detailed manual, and we provide instructional videos and remote support if needed. The control panel is user-friendly, and the foot pedal operation simplifies the workflow.
All machines must be passed by our QA inspection department before shipping.
