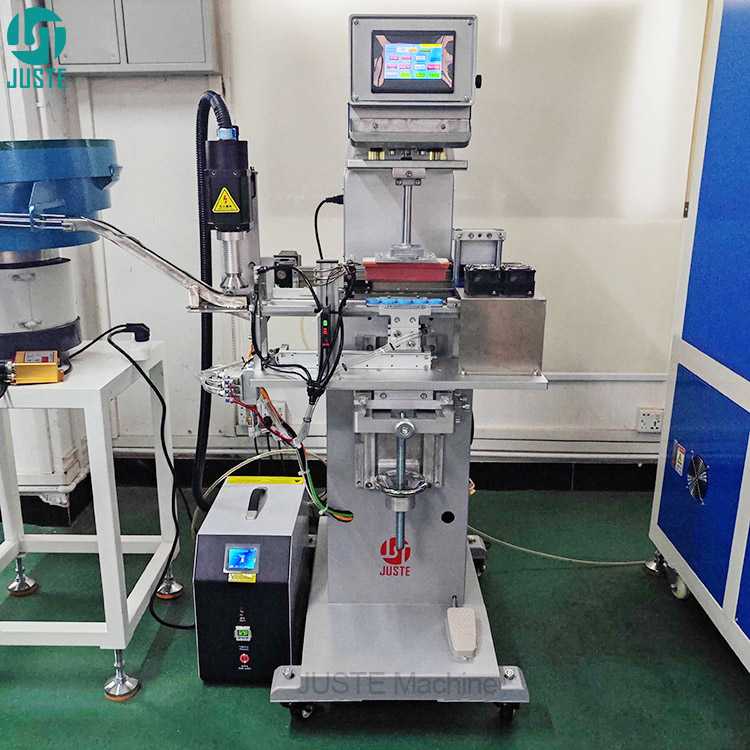

Fully Automatic Pad Printer Machine with Plasma & Curing
Fully Automatic Bottle Cap Pad Printing Machine Production Line
In the competitive world of packaging, achieving consistent, durable, and high-quality printing on bottle caps is paramount. The JST-VP-C125 represents the pinnacle of automatic pad printing machine technology, engineered specifically as a fully automatic production line for bottle cap printing. This integrated tampo printing machine seamlessly combines automatic feeding, plasma surface treatment, precision printing, and post-printing curing into one robust pad printing machine.
Designed for plastic bottle cap producers in the beverage and cosmetic industries, it eliminates manual handling, dramatically boosts your production efficiency, and guarantees superior ink adhesion on various closure types. This fully automatic pad printing machine is your ultimate solution for reducing labor costs, minimizing defects, and maximizing your return on investment with a reliable, high-speed printing machine.
Maximize Production Efficiency & Output : Achieve consistent speeds of 500-2500 pieces per hour with our fully automatic pad printing machine. The integrated vibratory bowl feeder and robotic handling ensure non-stop operation, significantly increasing your production throughput and meeting tight deadlines effortlessly.
Slash Labor Costs & Dependency : This automatic pad printing machine transforms a multi-operator process into a single-person oversight task. From automatic feeding to curing and counting, the machine handles it all, reducing your workforce requirements and associated costs.
Guarantee Unmatched Print Quality & Durability : The integrated plasma surface treatment station is a game-changer. It activates cap surfaces (especially PP/PE) ensuring ink bonds permanently, eliminating smudges or washes. Combined with the servo-driven closed ink cup system, every print is sharp, consistent, and built to last.
Enjoy Simplified Operation & Quick ROI : With PLC control, the machine offers intuitive operation and stable performance. Easy changeovers for different cap sizes and designs mean less downtime. This cost-effective pad printing machine is engineered for durability and low maintenance, ensuring a rapid return on your investment.
Products Description
| Brand | JUSTE |
| Model | JST-VP-C125 |
| Machine Type | Ink Cup Customize |
| Function | With Vibrating Bowl Feeder |
| Printing color | 1 Color / customize |
| Jig/Mould QTY | 1 / customize |
| Max plate size | 100*100*10mm |
| Max print size | 50*70MM / customize |
| Ink cup diameter | Φ90mm |
| Pad Slide distance | 110mm / 160mm / Customize |
| Printing speed/hr | 500-2500 |
| Mode of operation | Fully Automatic |
| Pad Printer Size | 1580x890x1610MM |
| Pad Printer Weight | 85KG |
| Vabrating Feeder Size | Customize |
| Vabrating Feeder Weight | Customize |
| Air pressure (bar) | 4-6 |
| Wattage | 2KW |
| Power | 220V/50HZ-110V/60HZ |

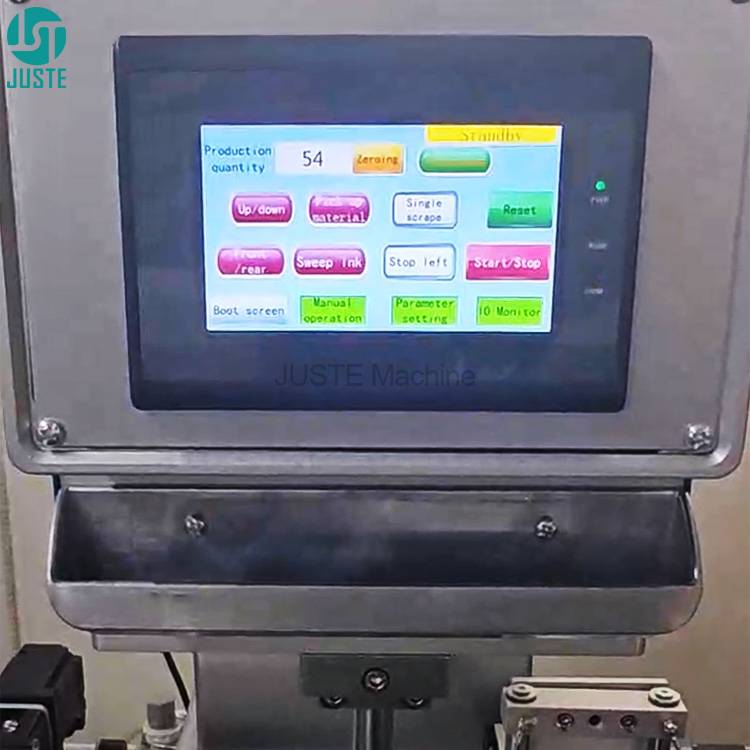

PLC Control Panel for Automatic Pad Printing Machine
The nerve center of the JST-VP-C125, this advanced PLC control panel provides unparalleled command over the entire pad printing machine line. It features a user-friendly interface that allows operators to easily set parameters, monitor production speed, track counts, and diagnose issues. This system ensures the fully automatic process runs with precision and stability , minimizing human error and maximizing uptime for your bottle cap printing operations.
Intuitive User Interface : Simple touchscreen or button controls make operation straightforward, requiring minimal training for your staff to manage this automatic pad printing machine.
Precision Process Control : The PLC precisely coordinates the timing of the feeder, plasma, printer, and curing oven, ensuring each closure moves through the line flawlessly for consistent high-quality printing.
Stable & Reliable Performance : Industrial-grade components guarantee continuous 24/7 operation, providing the dependable performance needed for high-volume production environments.

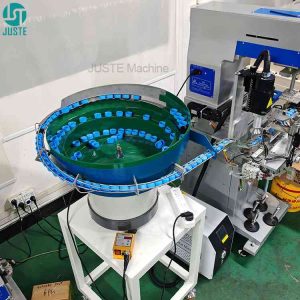

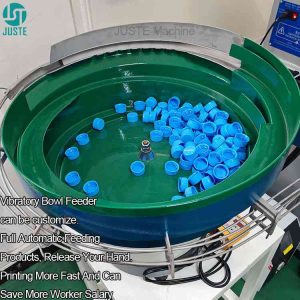

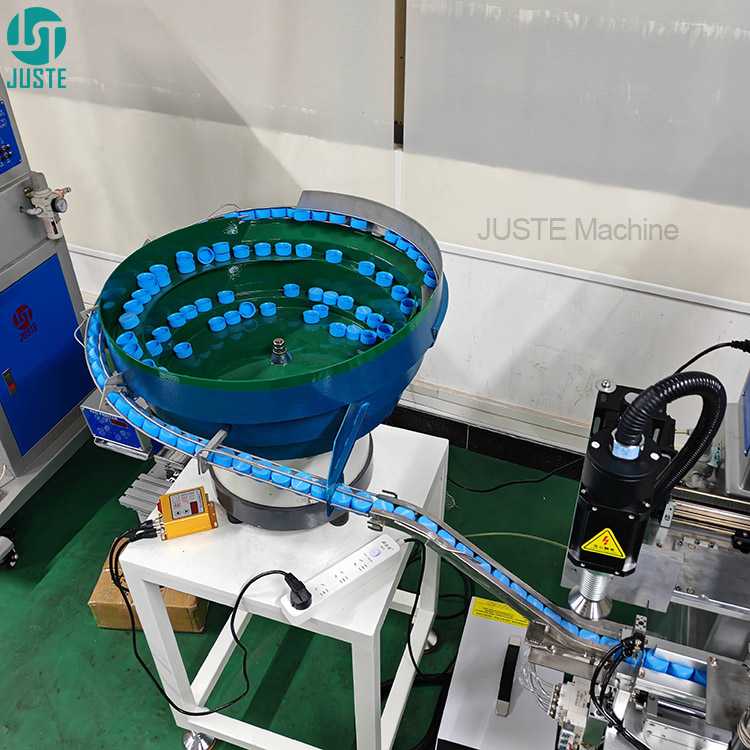

Automatic Feeder for Bottle Cap Printing Machine
This automatic vibratory bowl feeder is the first step in streamlining your production. It automatically organizes and orients bulk bottle caps, conveying them in a single-file queue to the pickup point. This eliminates the slow, inconsistent, and labor-intensive process of manual feeding, ensuring a continuous and reliable supply of caps to the printing machine.
Hands-Free Feeding : Completely automates the initial loading process, saving significant labor and preventing bottlenecks in your automatic pad printing machine line.
Gentle & Reliable Orientation : Custom-designed bowls and tracks gently handle your specific plastic bottle caps, ensuring they are correctly positioned for the robotic arm without damage.
Customizable Design : The feeder can be tailored to the exact size, shape, and material of your closures, making it a versatile component of your customized solution.
Robotic Arm for Automatic Tampo Printing Machine
A critical component for automation, the pneumatic robotic arm accurately picks up individual caps from the feeder and securely places them into the custom printing fixture. It applies gentle, consistent pressure to hold the closure firmly during the pad printing process, guaranteeing perfect registration and eliminating movement that could cause blurred or misaligned prints.
Precision Pick-and-Place: Ensures every cap is transferred and positioned with exact accuracy, which is crucial for maintaining high-precision print registration on every piece.
Secure Fixturing During Print: Holds the cap immobile under optimal pressure, a key factor in achieving the crisp, clean results expected from a professional tampo printing machine.
Seamless Line Integration: Works in perfect synchrony with the feeder, printer, and conveyor to create a smooth, uninterrupted fully automatic workflow.

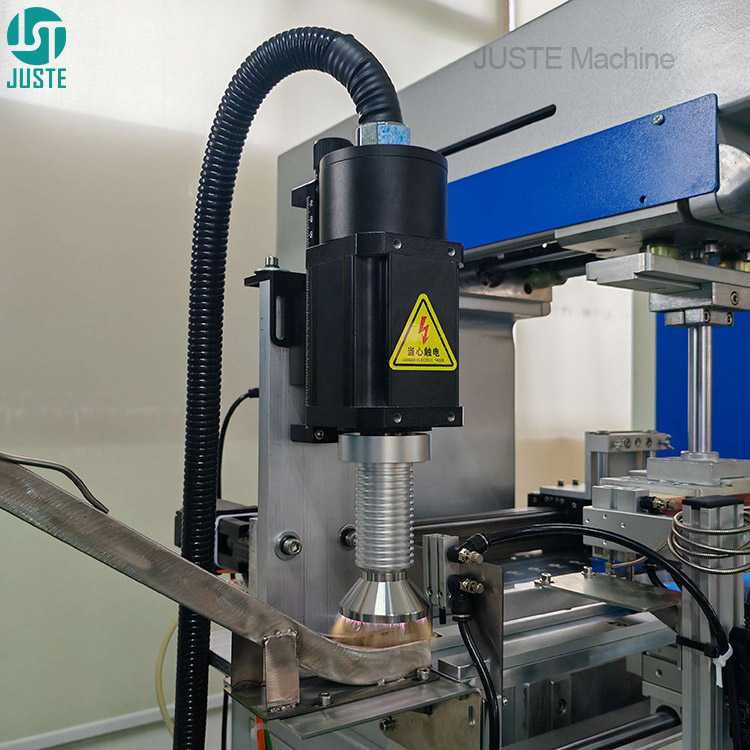

Plasma Treatment Station for Pad Printing Adhesion
This stage is the secret to unparalleled ink adhesion. The plasma surface treatment station bombards the surface of each bottle cap with ionized gas. This micro-cleans and activates the surface energy of plastics (like PP and PE), transforming it from ink-repellent to ink-receptive. This process is essential for creating a permanent bond and is a major advantage of this integrated printing machine line.
Revolutionary Adhesion Strength: Solves the #1 challenge in printing on polyolefin plastics, virtually eliminating ink peeling, scratching, or washing off finished closures.
Consistent & Controllable Process: Provides uniform treatment to every cap, ensuring consistent surface conditions for the ink, which leads to reliable and repeatable high-quality printing results.
Compact In-Line Design: Integrated directly into the production line, it adds a critical quality step without requiring extra floor space or manual intervention.

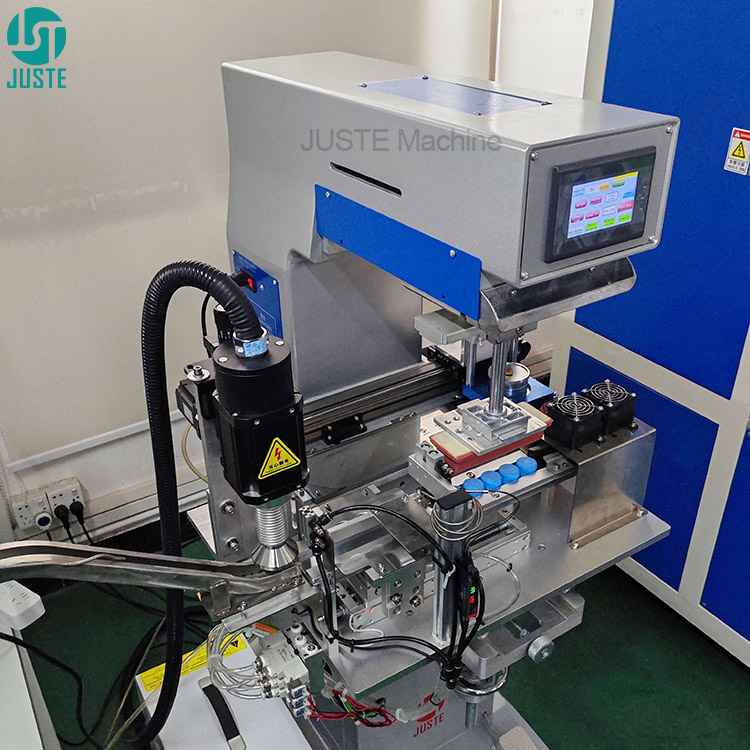

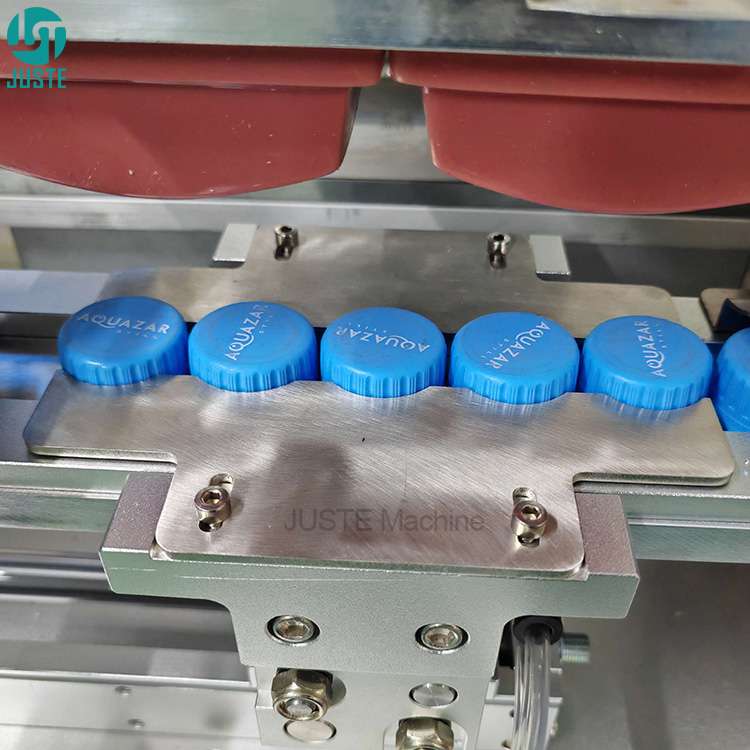

Pad Printing Station with Custom Fixture for Closures
The heart of the decoration process. This station features a custom-machined fixture that securely cradles your specific bottle cap shape. The servo-driven closed ink cup (Φ90mm) moves over the engraved cliche plate, filling the artwork grooves with ink and doctoring away the excess. The silicone pad then picks up the ink image and transfers it perfectly onto the held cap. Every element here—fixture, pad, and plate—is customized for your product.
Fully Customized Tooling: The fixture, silicone pad, and cliche plate are all engineered specifically for your closure design and logo, guaranteeing optimal contact and print quality.
Servo-Driven Closed Ink Cup: This servo-driven system ensures precise, repeatable ink doctoring for sharp detail and consistent color, a hallmark of a professional automatic pad printing machine.
Versatile Printing Area: Accommodates a max print area of 60x120mm (customizable), suitable for large logos or multi-line text on various cap sizes.

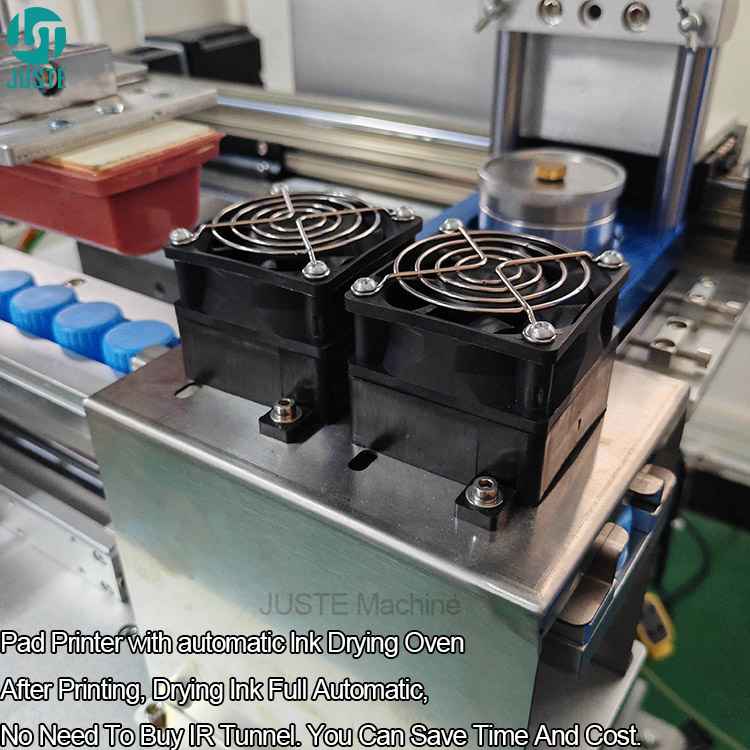

Ink Curing Oven for Pad Printing Machine Line
Directly after printing, caps are conveyed through this curing oven. Applying controlled heat, it rapidly dries and sets the ink, making the print smudge-proof and ready for immediate packaging or further handling. This step is crucial for production speed and final product durability, completing the value offered by this fully automatic line.
Rapid Ink Drying: Significantly speeds up the production cycle by固化 ink within the line, removing the need for extended air-drying racks or time.
Durable Finish: Ensures the printed design is resistant to abrasion and handling immediately after production, enhancing the perceived quality of your bottle caps.
Configurable Option: Can be supplied as a hot air or IR curing system based on your specific ink chemistry and production requirements.

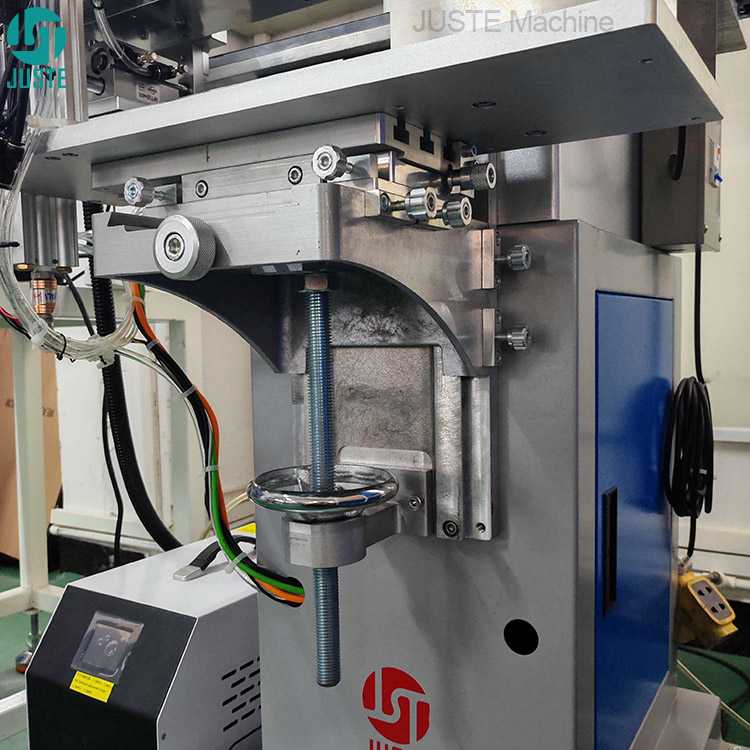

Lifting Screw Rod for Automatic Pad Printer
This manually-operated lifting mechanism allows for quick and precise vertical adjustment of the printing worktable. By simply rotating the handle, operators can fine-tune the height to perfectly match different bottle cap profiles, ensuring optimal contact between the silicone pad and the product for a crisp, fully-transferred print every time.
Precise Z-Axis Adjustment: Enables micro-adjustments to the worktable height, which is crucial for achieving perfect print pressure and clarity on various closure heights in your pad printing machine.
Ergonomic & Simple Operation: The large hand wheel allows for easy adjustments without tools, facilitating quick changeovers and minimizing machine setup downtime.
Stable & Lockable Position: Once set, the mechanism locks securely to maintain a stable printing platform, ensuring consistent quality throughout the production run.

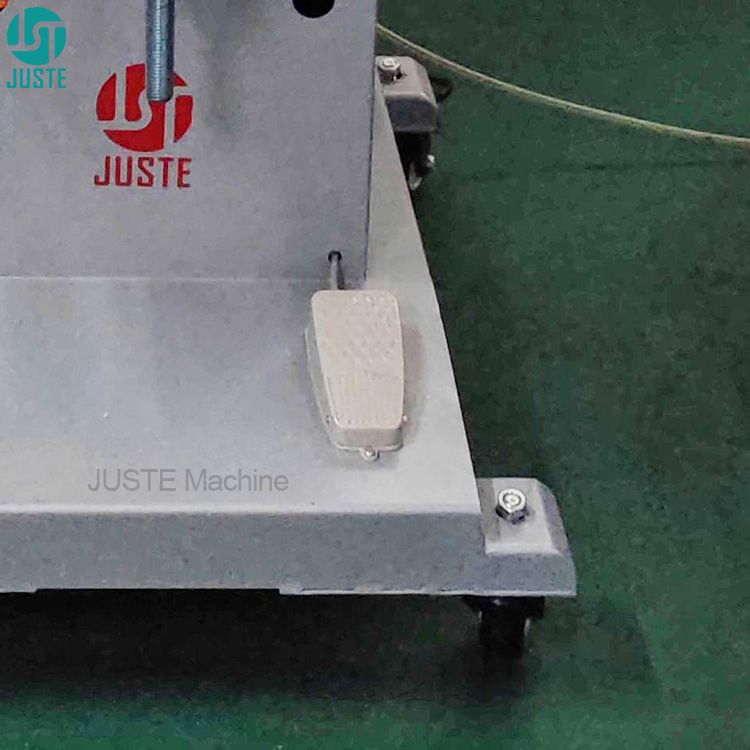

Foot Pedal Switch for Fully Automatic Pad Printing Machine
This industrial-grade foot pedal provides a safe and convenient way for the operator to manually trigger a single printing cycle. It is essential during machine setup, testing new cliche plates or ink, or for low-volume production runs, offering full manual control without interrupting the PLC’s automatic programming.
Hands-Free Cycle Activation: Allows the operator to keep both hands free for part handling or inspection while controlling the printing machine, enhancing both safety and workflow efficiency.
Durable Industrial Design: Built to withstand continuous use in a factory environment, ensuring reliability for frequent manual operation as part of your pad printing process.
Safety-Enhanced Operation: Reduces the need to reach into the machine’s working area with hands, aligning with good safety practices in an automatic production setting.

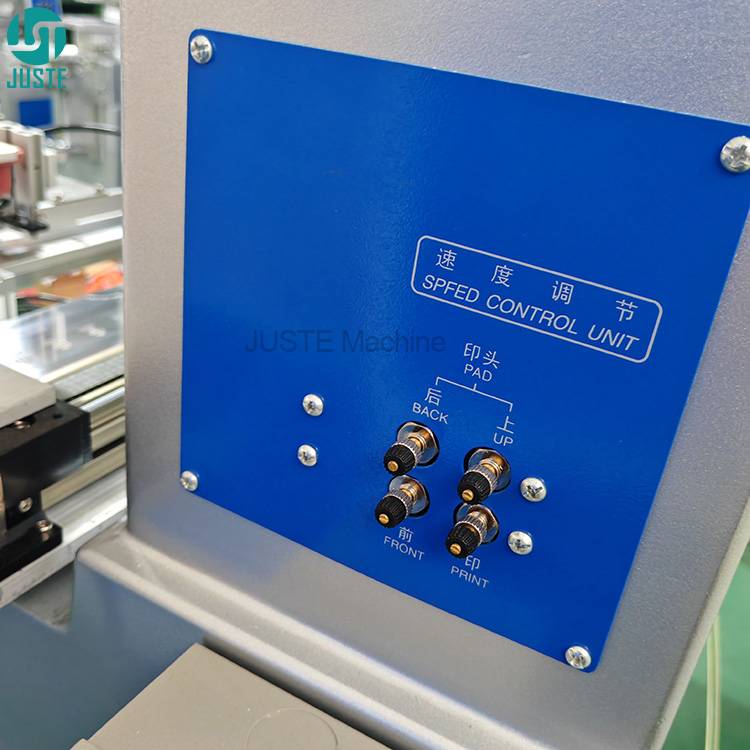

Pneumatic Control Buttons for Printing Machine Machine
This centralized control unit houses regulators and gauges for managing the pneumatic system. It allows precise adjustment of air pressure (4-6 bar) supplied to key components like the robotic arm and cylinder drives, ensuring consistent force and speed for smooth, reliable operation of the automatic pad printing machine.
Centralized Pressure Management: Provides a single point to monitor and adjust air pressure for all pneumatic actions, simplifying maintenance and troubleshooting of your tampo printing machine.
Ensures Consistent Performance: Stable air pressure is critical for repeatable pick-and-place movements and printing head actions, directly contributing to high-precision and consistent output quality.
Visual Pressure Monitoring: Integrated gauges offer at-a-glance verification that the system is operating within the specified parameters, preventing issues related to under- or over-pressure.

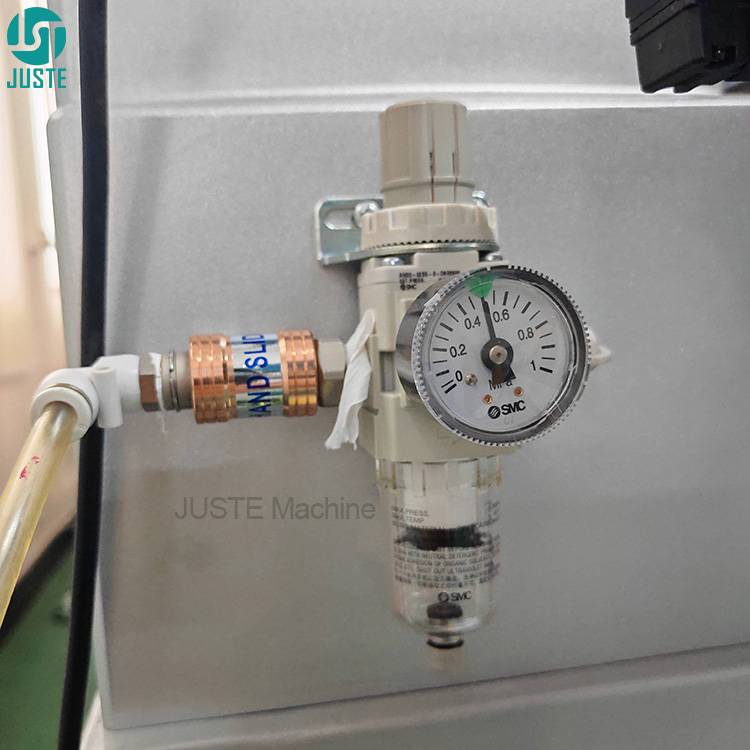

Air Filter Regulator Lubricator Unit for Fully Automatic Pad Printer
Known as an FRL (Filter, Regulator, Lubricator) unit, this component is vital for protecting your machine’s pneumatic system. It cleans compressed air of moisture and contaminants, regulates its pressure, and adds a fine mist of lubricant to extend the lifespan of valves, cylinders, and the robotic arm.
Protects Critical Components: Clean, lubricated air prevents corrosion and wear inside pneumatic cylinders and valves, significantly reducing maintenance needs and ensuring the long-term durability of your pad printing machine.
Maintains System Reliability: By ensuring a consistent supply of clean air, it prevents pneumatic failures that could cause unplanned downtime in your automatic production line.
Easy Maintenance: Typically features a transparent bowl for easy visual inspection of filter condition and simple drainage of accumulated moisture.
Custom Silicone Pad for Bottle Cap Printing
This is the key transfer medium, custom-molded from silicone to perfectly match the contour of your specific bottle cap. It picks up the ink image from the cliche plate and deposits it onto the curved or irregular surface of the closure with precision, enabling high-quality printing on challenging 3D shapes.
Product-Specific Design: Each pad is customized to your cap’s exact shape and size, ensuring maximum surface contact for a complete, distortion-free ink transfer in your pad printing process.
Optimal Material Properties: Made from high-grade silicone with the right hardness and ink release characteristics to produce sharp, well-defined images on your plastic bottle caps.
Durable & Long-Lasting: Designed to withstand thousands of printing cycles while maintaining its shape and performance, a crucial factor for high-volume production cost-effectiveness.

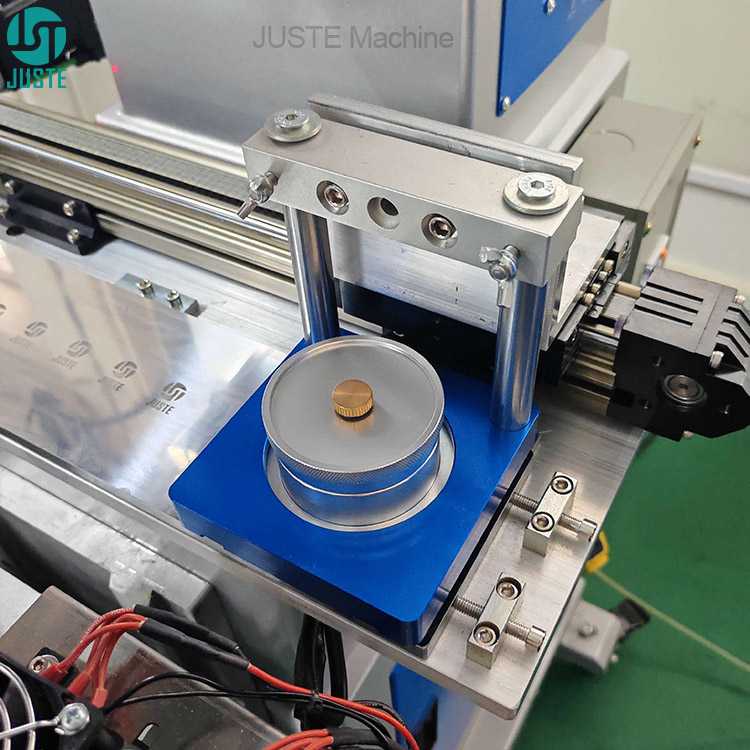

Servo Driven Ink Cup for High Precision Pad Printing Machine
This servo-driven closed ink cup (Φ90mm) is the core of the inking system. It holds the ink and houses the doctoring ring. As it moves precisely over the cliche plate, it floods the etched artwork with ink, then the sharp ring doctors away the excess, leaving ink only in the grooves. This ensures exceptionally sharp and consistent prints.
Servo-Driven Precision: Servo motor control allows for highly accurate and repeatable movement and doctoring pressure, which is fundamental for high-precision and consistent print quality in an automatic pad printing machine.
Closed System Benefits: The sealed cup minimizes solvent evaporation, keeping ink viscosity stable for longer periods, reducing waste, and improving working conditions compared to open inkwell systems.
Low Maintenance & Reliable: This robust system requires less frequent adjustment and cleaning than traditional open inkwell and doctor blade setups, enhancing overall machine efficiency.
Custom Engraved Cliche Plate for Cap Pad Printing Machine
Also known as the printing plate or cliché, this is a hardened steel plate laser-etched with your specific logo or artwork. The depth and quality of the engraving directly determine the ink volume transferred and the sharpness of the final print on your bottle caps. We supply these as part of your customized solution.
Precision-Laser Engraved: Produces clean, sharp cavities for accurate ink holding, which translates to detailed, high-definition prints on your closures, essential for brand integrity.
Durable Steel Construction: Made from high-quality tool steel and hardened to withstand prolonged contact with the doctoring ring, ensuring a long service life and consistent output.
The Heart of Your Design: Each plate is custom-made to your provided artwork, enabling you to print complex logos, text, or graphics on your cosmetic or beverage caps with ease.
Tool Kit and Spare Parts Accessories for Full Automatic Cap Pad Printer
We provide a comprehensive accessory kit with every machine to ensure you have everything needed for installation, basic maintenance, and immediate operation. This includes essential tools, connection cables, and commonly used spare parts, reflecting our commitment to a complete turnkey solution and minimizing your initial setup time.
Ready for Immediate Setup: Includes all necessary wrenches (like hex key sets) and tools for assembling the machine and performing basic adjustments, getting your production line up and running faster.
Essential Spares Included: Provides a selection of common spare parts (e.g., fuses, seals) to address minor wear items quickly, helping to reduce potential downtime.
Complete Package: Supplied with power cords and air hoses as standard, ensuring you receive a fully-packaged printing machine solution ready for connection to your plant utilities.
Juste Printer Machine Application Area
The JST-VP-C125 fully automatic pad printing machine is engineered as a versatile champion for the packaging industry. Its core design for bottle cap printing makes it an indispensable asset for any business that needs to decorate closures with logos, batch codes, instructions, or decorative patterns. This automatic pad printing machine excels on a wide range of materials and serves multiple high-demand sectors, offering a single, cost-effective solution to diversify your production capabilities and meet various market needs. From carbonated drinks to luxury perfumes, this line ensures your caps stand out with durable, professional-grade decoration.
Materials Perfectly Suited for Printing:
Plastics: PP (Polypropylene), PE (Polyethylene), PET, ABS. The integrated plasma treatment is particularly effective on low-surface-energy plastics like PP and PE.
Metals: Aluminum, tinplate (commonly used for crown caps on beer and soda bottles).
Target Industries & Specific Products:
Beverage Packaging: Water bottle caps, soda bottle caps, juice bottle caps, sports drink caps, beer bottle caps (crowns and twist-off).
Cosmetics & Personal Care: Cosmetic bottle caps for perfumes, lotions, shampoos, cream jars, lipstick cases, and deodorant caps.
Food & Pharmaceutical: Sauce bottle caps, spice jar lids, medicine bottle caps, supplement containers.
Home & Industrial Chemicals: Caps for detergent bottles, oil containers, lubricant cans, and agrochemical packaging.
Machines Packaging
Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Printer Machines will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Information
Shenzhen Juste Machine Co., Ltd.
When you invest in a pad printing machine, you need more than just equipment; you need a reliable partner. Shenzhen Juste Machine Co., Ltd. is a leading manufacturer and supplier of industrial printing solutions with over two decades of expertise. As a professional factory based in China’s industrial heartland, we specialize in engineering automatic pad printing machines and integrated lines that solve real production challenges.
Our core strength lies in providing custom solutions. We understand that every product is unique. That’s why the JST-VP-C125 is offered with full OEM and customized support—from the feeder bowl to the printing fixture and silicone pad. We are not just a supplier; we are your production partner, dedicated to delivering machines that ensure high-quality printing, high-efficiency, and long-term durability for your business. We support our global clients with comprehensive technical guidance, a solid 1-year warranty, and factory-direct value, ensuring you get a superior return on investment.
Pad Printer, Screen Printer, UV Dryer, Post-Press and Pre-Press equipment for you to choose.
How To Order
How To Place customize Full Automatic Pad Printers order?
Step 1: Initial Inquiry – Contact us via email, WhatsApp, or our website. Share your closure samples or drawings.
Step 2: Requirement Review – Discuss your needs: cap dimensions, desired print area, hourly output, and preferred options (e.g., UV vs. IR curing).
Step 3: Quotation & Proposal – Our engineers will analyze your project and provide a detailed quote for the complete customized pad printing machine line.
Step 4: Proforma Invoice (PI) – Upon your approval, we issue a PI with clear terms, costs, and timeline.
Step 5: Payment & Confirmation – Secure your production slot with a deposit. We order all custom components.
Step 6: Production & Assembly – Our skilled technicians assemble and pre-test your machine with your custom tooling.
Step 7: Quality Assurance – Our strict QA team performs thorough inspections and records a video test run for your review.
Step 8: Pre-shipment Documentation – We prepare all manuals, packing lists, and commercial invoices.
Step 9: Shipping & Logistics – We arrange secure packing and shipment from Shenzhen port, providing tracking details.
Step 10: Delivery & Support – Your machine arrives. We provide remote setup support and detailed operational training.
Ready to transform your cap printing operation? Contact us today for a personalized quote and see how our automatic solution can boost your productivity.
FAQ
Q1: Are you a direct manufacturer of this pad printing machine?
A: Yes, we are a professional manufacturer and factory specializing in automatic pad printing machines. We control the entire production process in our Shenzhen facility, ensuring quality and enabling true customization and competitive pricing.
Q2: Can this machine print on all types of bottle caps?
A: Absolutely. The JST-VP-C125 is a fully automatic pad printing machine designed specifically for closures. With our customized fixtures and silicone pads, it can handle various shapes and sizes of plastic bottle caps, beverage caps, and cosmetic caps made from PP, PE, or metal.
Q3: How does the plasma treatment improve my print quality?
A: The integrated plasma surface treatment is crucial for high-quality printing on plastics. It activates the cap’s surface, dramatically increasing ink adhesion. This results in a durable, scratch-resistant print that won’t fade or peel, solving the biggest challenge in bottle cap printing.
Q4 : What is your warranty and after-sales service policy?
A: We provide a comprehensive 1-year warranty on the entire automatic pad printing machine, covering parts and workmanship. We offer lifetime technical support via email, video call, and phone. Detailed manuals and video guides are provided for easy maintenance.
Q5 : Can we get a test video before shipment?
A: Yes. Our quality control process includes a full video inspection of your machine running with a sample batch of your closures. This “pre-shipment confirmation” video allows you to verify performance and print quality before it leaves our factory.
Q6 : Do you provide the custom printing fixtures and silicone pads?
A: Yes, we provide a complete turnkey solution. As part of your order, we design and manufacture the custom vibratory bowl tracks, part fixtures, silicone pads, and etched cliche plates specifically for your product and logo. This ensures optimal performance from day one.
