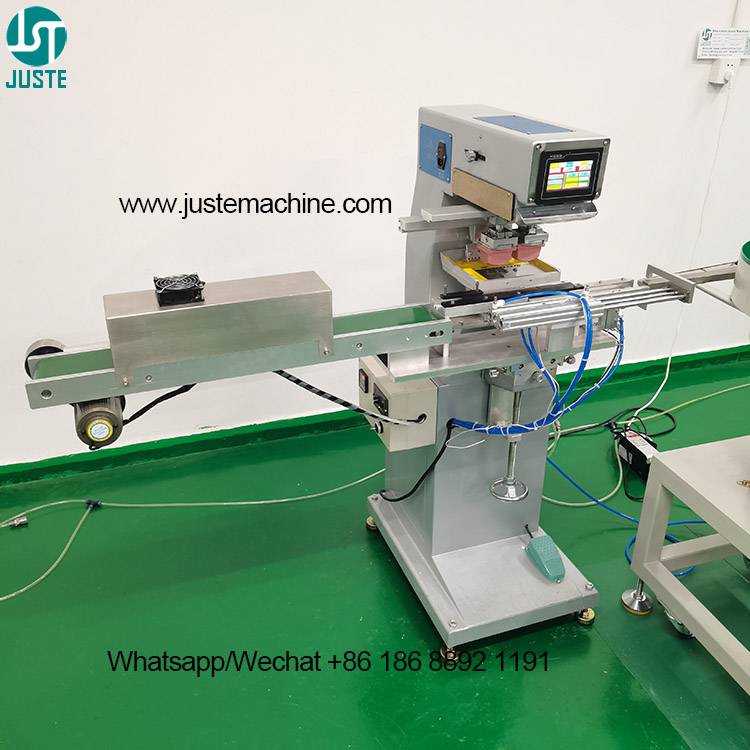

Vibrating Bowl Feeder Pad Printer 1 Color Full Automatic Pad Printing Machine
Industrial Automatic Pad Printing Machine Complete Production Line
Discover the JST-VP-T150, a comprehensive fully automatic pad printing system engineered for manufacturers requiring high-volume, precision decoration of three-dimensional items. This integrated automatic pad printing line combines part feeding, robotic handling, PLC-controlled imprinting, and instant curing into one continuous workflow.
Specifically designed as a custom pad printing machine, its components—from the silicone transfer pad to the feeding mechanism—are tailored to your exact product specifications, enabling flawless application on diverse substrates like plastic, metal components, glassware, and ceramic items. Capable of outputs up to 2500 impressions hourly, this robust pneumatic printing system delivers unwavering consistency, offering a superior return on investment for businesses scaling their automatic pad printing capabilities.
Dramatically Accelerate Output: Leverage high-speed automated printing up to 2500 cycles/hour with continuous automatic feeder integration, significantly boosting production capacity and throughput for faster order fulfillment.
Substantially Reduce Operational Costs: This hands-free automatic system minimizes manual labor to a single supervising operator, eliminating costs and errors linked to manual processes or semi-automatic pad printers, while ensuring perfect registration every time.
Achieve Flawless Results on Intricate Geometries: From syringe barrels and watch faces to promotional tokens and electronic housings, the custom-configured silicone pad and dedicated fixtures guarantee precise, repeatable decoration on curved, recessed, or uneven surfaces.
Deploy a Ready-to-Run Production Cell: As a complete turnkey automation solution encompassing feeding, printing, and curing, the JST-VP-T150 is operational upon installation. Its straightforward PLC interface streamlines both daily operation and product changeovers.
Products Description
| Brand | JUSTE |
| Model | JST-VP-T150 |
| Machine Type | Ink Cup / Ink Tray / Customize |
| Function | With Vibrating Bowl Feeder |
| Printing color | 1 Color / customize |
| Jig/Mould QTY | 1 / customize |
| Max plate size | 100*100*10mm |
| Max print size | 50*70MM / customize |
| Ink cup diameter | Φ90mm |
| Pad Slide distance | 110mm / 160mm / Customize |
| Printing speed/hr | 500-2500 |
| Mode of operation | Fully Auto |
| Pad Printer Size | 650x620x1380MM |
| Pad Printer Weight | 85KG |
| Vabrating Feeder Size | Customize |
| Vabrating Feeder Weight | Customize |
| Air pressure(bar) | 4-6 |
| Wattage | 20-50W |
| Power | 220V/ 50HZ-110V/60HZ |

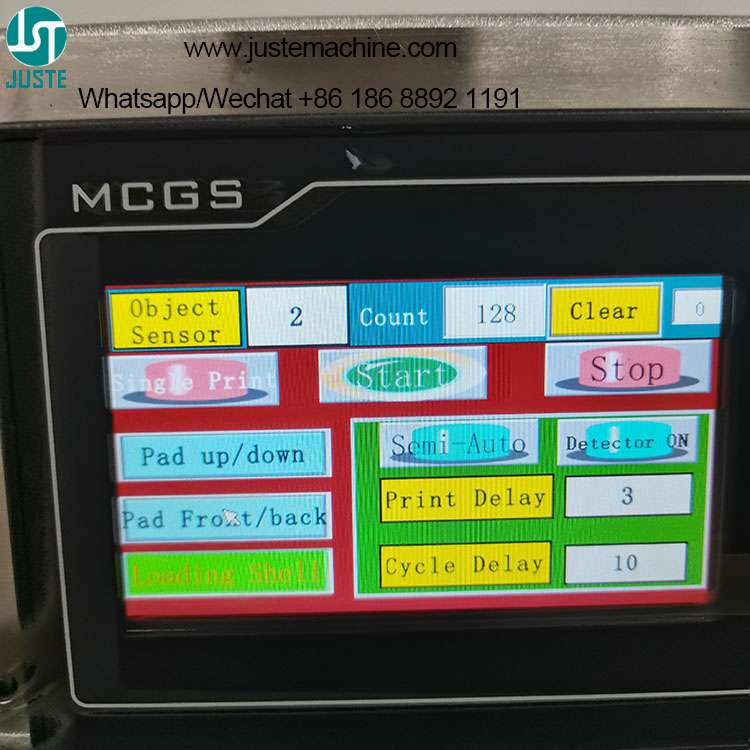

Touch Screen PLC Control Panel Automatic Pad Printer
Command your production line with this intuitive PLC control panel. It serves as the central hub for configuring print parameters, monitoring cycle status, and managing the synchronized operation of all system components, putting total control of your automated decoration cell within easy reach.
Streamlined Process Management: Simplifies operation and reduces training requirements, allowing quick proficiency in running the fully automatic pad printing system.
Guaranteed Cycle Consistency: Advanced PLC control ensures precise timing and coordination between all machine movements, which is foundational for maintaining rated high-speed production.
Proactive System Monitoring: Offers real-time diagnostics and alerts for efficient troubleshooting, helping to prevent unexpected production interruptions.

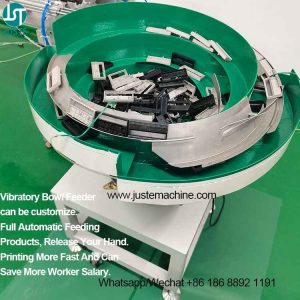

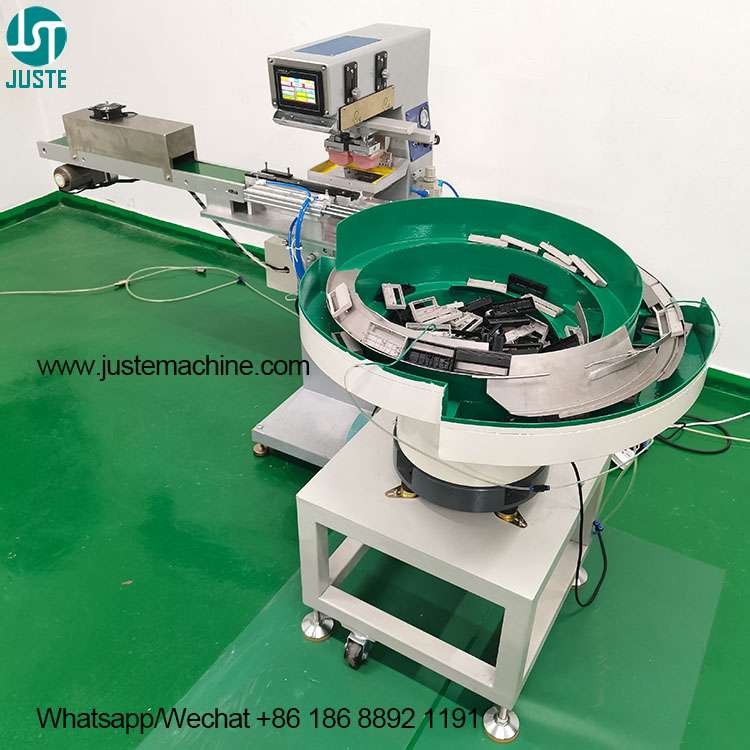

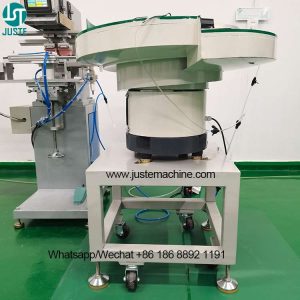

Custom Vibratory Feeder Automatic Parts Loading
The custom-engineered vibratory bowl feeder automates the first crucial step. It accurately orients and supplies your specific components—such as cosmetic caps, toy parts, or medical connectors—directly to the pick-up point, ensuring a reliable and consistent flow into the printing process without manual sorting.
Application-Specific Engineering: Each feeder is uniquely designed for your part’s geometry, guaranteeing reliable orientation and transfer for items like small electronics or irregular souvenirs.
Component-Safe Handling: Gentle vibration mechanics prevent scratches or damage to sensitive surfaces, which is vital for finished goods like decorative plates or polished metal items.
Enables Uninterrupted Flow: Provides a non-stop supply of components to the robotic unit, allowing the fully integrated line to maintain peak operational tempo.

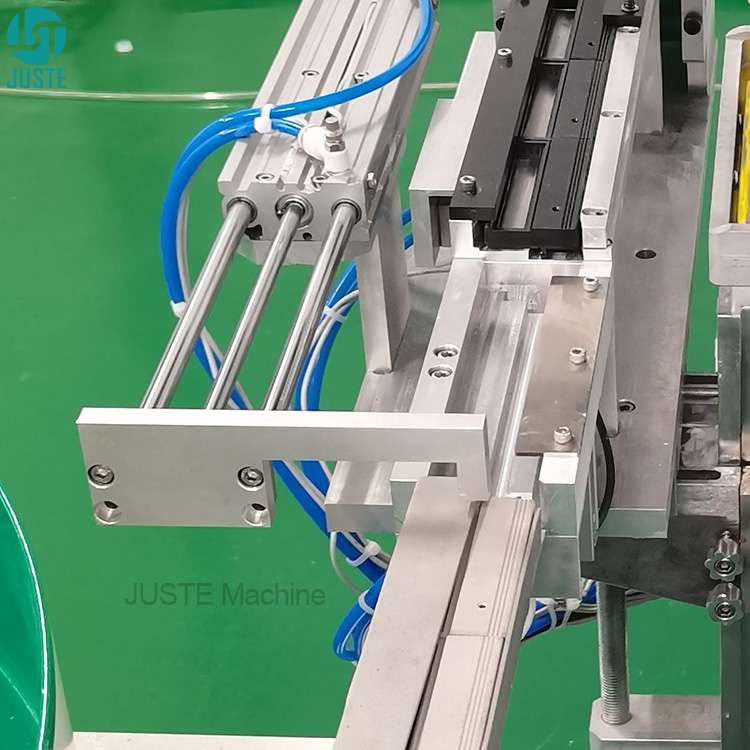

Precision Robotic Arm Gripper Pad Printing Automation
A dependable pneumatic robotic manipulator with a custom end-effector. It consistently extracts each part from the feeder, positions it accurately at the printing station, secures it during the imprint cycle, and finally transfers it to the conveyor system, all with exceptional repeatability.
Guaranteed Part Stability: Bespoke grippers and holding fixtures immobilize your product (e.g., curved bottles, appliance knobs, or tool handles) during printing to eliminate defects.
Rapid and Accurate Transit: Ensures exact placement for every cycle, a critical factor for achieving uniform print alignment on high-mix production runs.
Seamless Process Integration: Perfectly synchronizes with the feeder, printer, and conveyor to establish a smooth, labor-minimizing automated sequence.

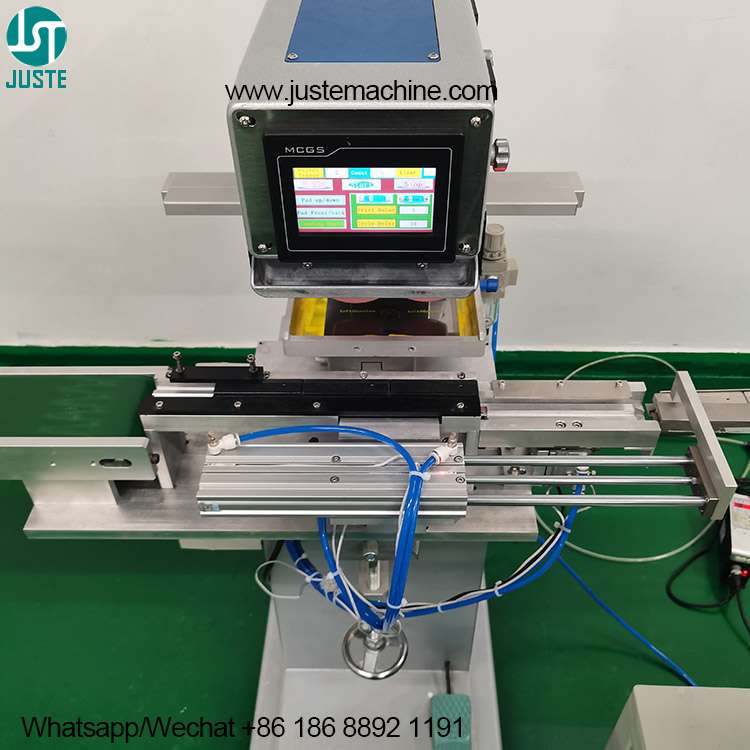

Precision Pad Printing Station for Custom Pad Printing Machine
This is where your design comes to life. The station houses the custom-etched cliché plate, the sealed ink cup assembly, and the forming silicone pad. A pneumatic actuator drives the pad to collect ink from the plate and deposit it perfectly onto the product secured by the robot.
Complete Bespoke Tooling: Includes a dedicated product holder, a contour-matching silicone pad, and your artwork-specific cliché plate—all crafted for your unique application, whether keycap printing, shoe decoration, or industrial part marking.
Advanced Sealed Inking: The 90mm diameter ink cup system promotes cleaner operation, reduces solvent loss, and provides exceptional ink transfer efficiency compared to traditional open troughs.
Repeatable Impression Quality: The pneumatic actuation delivers consistent pressure and stroke, resulting in sharp, high-density prints on every piece.

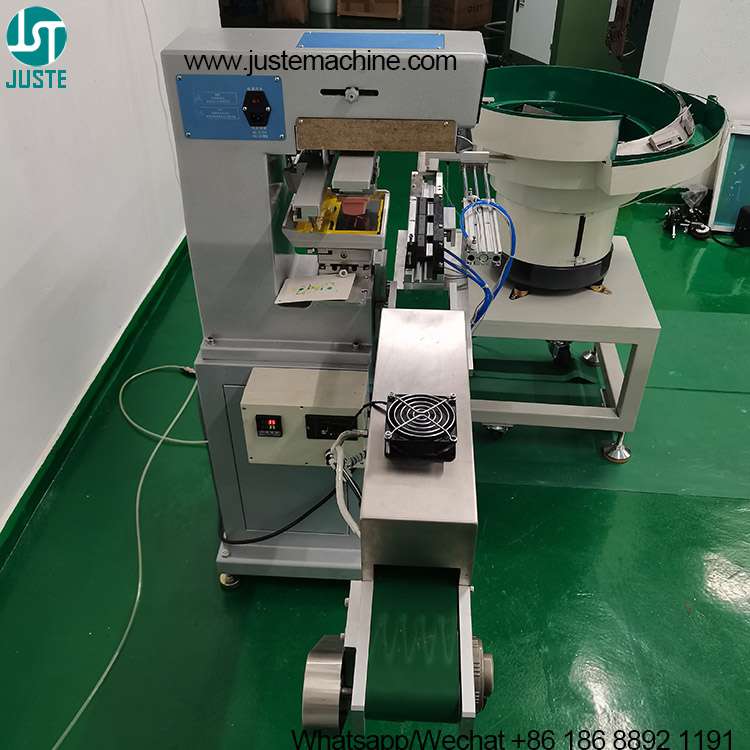

Powered Conveyor Belt for Full Automatic Pad Printing Machine
Post-printing, the robot deposits the decorated item onto this motorized conveyor belt. It reliably transports components through the optional post-print curing zone (UV or IR) and onward to the collection area, finalizing the touch-free manufacturing sequence.
In-Line Finish Processing: Engineered to carry products through attached UV curing lamps or IR drying ovens, ensuring inks are fully set before further handling or packaging.
Synchronized Speed Control: Conveyor velocity is integrated with the machine cycle, allowing optimization based on cure time requirements or desired production pace.
Automated Unloading: Enables the automatic printing line to operate continuously by removing finished goods autonomously, ready for the next step.

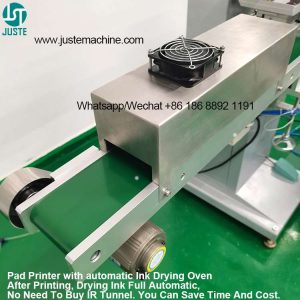

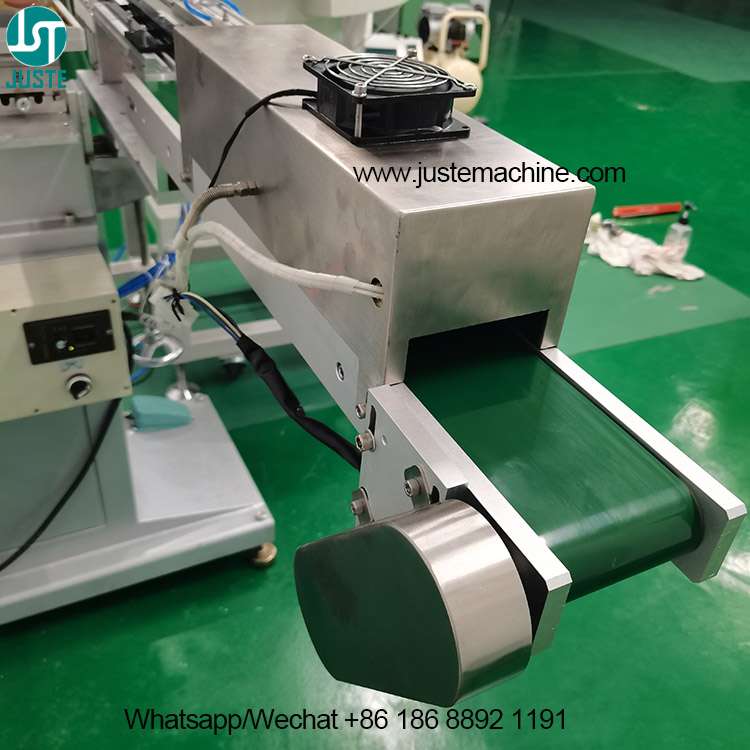

Integrated UV Curing System for Fully Automatic Pad Printer
This optional add-on module ensures inks dry instantly and permanently. Select UV curing for ultraviolet-reactive inks or IR curing for traditional solvents, guaranteeing a smudge-proof, durable finish as products exit the line.
Instantaneous Drying for Throughput: Cures ink in moments, permitting immediate handling or secondary processing, which is essential for supporting the system’s maximum output speed.
Enhanced Product Durability: Creates a hard, resistant surface ideal for functional parts, frequent-handling items, or products like tools, device interfaces, or control panels.
Configurable to Your Process: Can be equipped as a UV curing or IR drying unit based on your ink chemistry, providing a tailored solution for your specific needs.

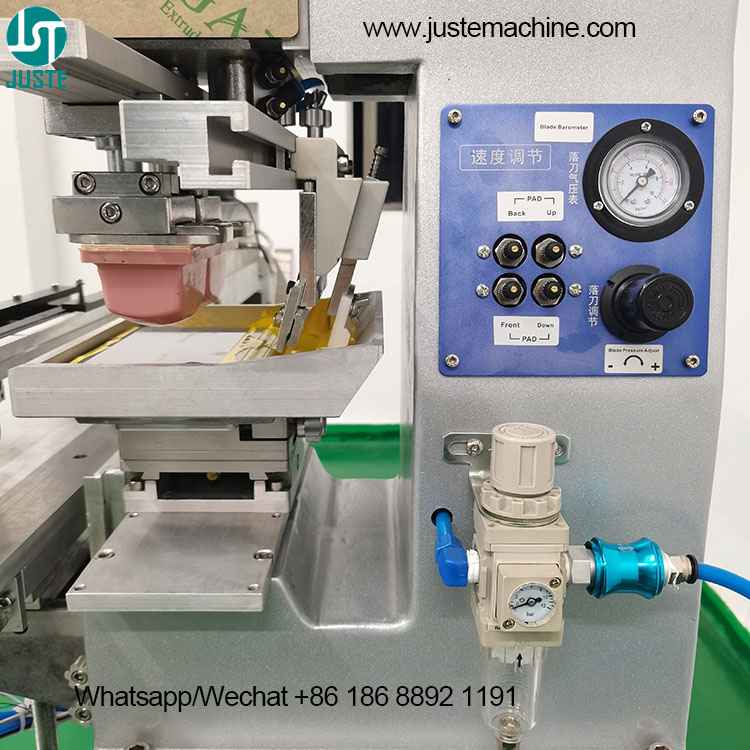

Air Pressure Control and Filtration Unit for Fully Automatic Pad Printing Machine
This vital unit houses the air pressure control regulators and the air filter. It ensures clean, dry, and pressure-stable air is supplied to all pneumatic components (cylinders, grippers), which is critical for the machine’s smooth, reliable, and long-lasting operation.
Stable Pneumatic Power: Precise air pressure control (4-6 bar) guarantees consistent force for printing, gripping, and movement, directly impacting print quality.
System Protection: The air filter removes moisture and contaminants from the air supply, protecting sensitive pneumatic valves and cylinders from damage and reducing maintenance.
Centralized Control: Allows for easy adjustment and monitoring of the machine’s pneumatic power, simplifying setup and troubleshooting.
Custom Molded Silicone Transfer Fully Automatic Pad Printing Machine
This is the custom-molded silicone transfer pad, the critical component that physically carries ink from the plate to your product. Engineered with a specific Shore hardness and shape to match your item’s contour, it compresses and rolls to pick up the complete etched image and then uniformly deposits it onto curved, angled, or textured surfaces with exceptional fidelity.
Precision-Contoured Design: Each pad is uniquely manufactured to perfectly mate with your product’s 3D geometry, ensuring full image transfer without distortion or gaps, ideal for golf balls, cosmetic lids, or irregular promotional items.
Optimal Material Properties: Selected silicone compounds offer the right balance of flexibility, ink release, and durability, providing consistent performance and longevity across thousands of cycles.
Key to Versatile Decoration: Enables the pad printing process to address applications where other printing methods fail, particularly on concave, convex, or detailed surfaces.
Steel Ink Blade for Full Auto Pad Printer
The steel ink blade is a precision-ground component responsible for wiping the cliché plate clean after it is flooded with ink. It travels across the plate with consistent pressure, removing all excess surface ink and leaving ink only within the recessed areas of your artwork, which defines the final printed image.
Guarantees Print Clarity and Sharpness: By providing a perfectly clean plate surface, it ensures that only the intended design is transferred, resulting in crisp edges and fine detail reproduction.
Manufactured for Consistency and Wear Resistance: Made from high-grade tool steel and ground to a exacting edge, it maintains its effectiveness over long periods, supporting stable high-volume production.
Fundamental to Process Control: This step is non-negotiable for achieving high-quality, repeatable prints and is a hallmark of professional pad printing equipment.
Sealed Ink Cup Assembly Pad Printing Machine
This sealed ink cup assembly represents the modern standard for ink management in pad printing. It combines an ink reservoir with a sealing ring and an integrated blade. As it moves over the cliché plate, it simultaneously floods fresh ink and doctors it clean, all within a closed environment that minimizes exposure.
Superior Ink Management and Cleanliness: The closed system drastically reduces solvent evaporation, maintains ink viscosity, and contains fumes, creating a cleaner and more controlled working environment.
Integrated and Efficient Design: Combines the flooding and doctoring functions into one reliable component, simplifying the mechanism and improving print consistency.
Reduces Operational Costs: Minimizes ink waste and solvent usage compared to open ink wells, contributing to a lower cost per printed piece over time.
Ink Retrun Blade for 1 Color Pad Printing Machine
Functioning as the flood bar, this component is responsible for distributing a smooth, even layer of ink across the entire surface of the cliché plate after each printing cycle. It ensures the etched cavities are completely re-filled with ink, preparing the image for the next pick-up by the silicone pad.
Ensures Uniform Image Replenishment: Provides consistent, bubble-free ink coverage over the artwork, which is essential for achieving solid color fills and preventing weak or incomplete prints.
Smooth and Reliable Operation: Its design allows for a fluid, even spread of ink, critical for maintaining the integrity of detailed graphics and fine text.
Maintains Printing Rhythm: A key actor in the repetitive cycle that enables the automatic pad printer to maintain a steady, high-speed output.
Laser Engraved Steel Cliche Plate for Custom Pad Printer
This is your custom laser-engraved steel cliché plate, the master template of your design. Created using precision laser or chemical etching technology, its recessed areas hold the ink that forms your logo, text, or graphic. It is the definitive source of image quality for your entire production run.
High-Fidelity Image Master: Produced with micron-level accuracy to capture every detail of your artwork, ensuring brand identity is reproduced perfectly on every single item.
Engineered for Durability: Crafted from hardened steel to withstand prolonged contact with the doctor blade, guaranteeing a long service life even under high-speed continuous operation.
Core Deliverable of Customization: Supplied as part of your initial tooling package, this plate transforms your digital artwork into a physical production-ready asset for the automatic printing system.

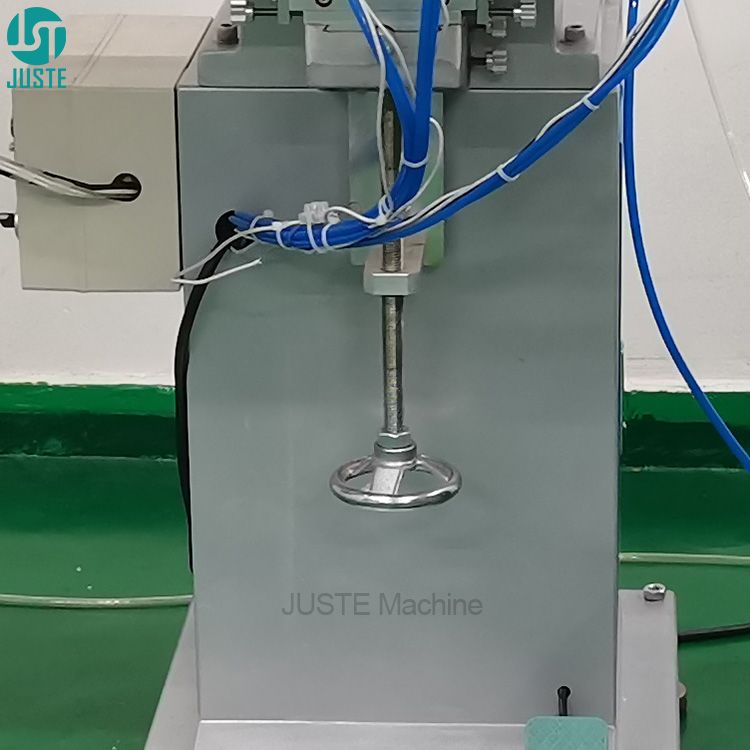

Manual Height Adjustment Screw Mechanism for Fully Auto Pad Printer
The manual height adjustment screw provides precise vertical calibration of the printing head assembly. By turning the handwheel, operators can finely raise or lower the entire print head to achieve the perfect contact pressure between the silicone pad, the cliché plate, and the product fixture.
Critical for Print Quality Setup: Enables fine-tuning to eliminate issues like shadowing or weak impressions, directly impacting the final decorative result.
Simple and Direct Mechanical Control: Offers reliable, backlash-free adjustment without relying on complex electronics, ensuring long-term stability and ease of use.
Facilitates Efficient Changeovers: Allows for quick recalibration when switching between different product setups or fixtures, supporting flexible manufacturing.

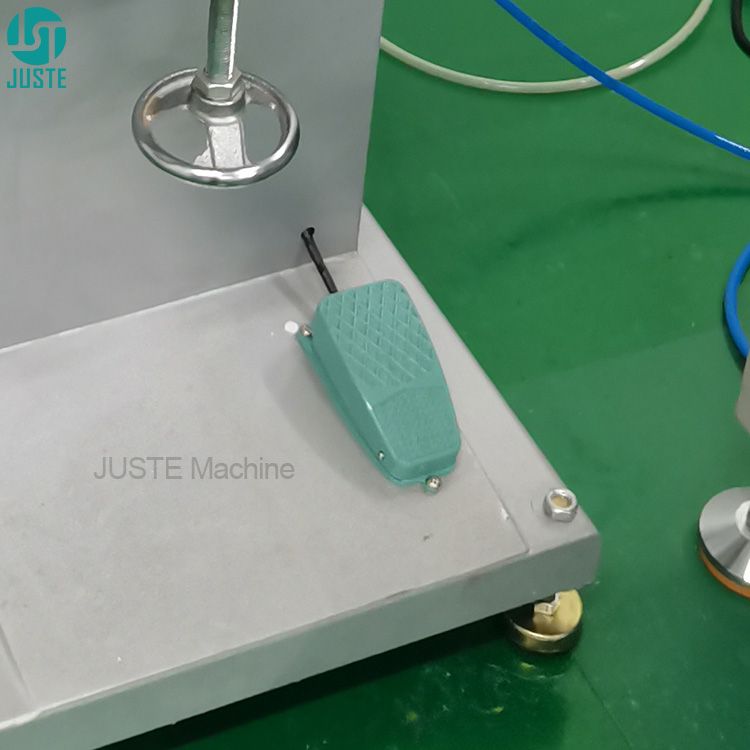

Industrial Foot Switch for Automatic Loading pad Printer
This robust industrial foot switch gives the operator direct, hands-free control to initiate a single machine cycle. It is used for setup verification, test printing, or running small batches, providing operational flexibility alongside the main fully automatic production mode.
Enables Flexible Production Modes: Perfect for job setup, quality checks, or low-volume orders without needing to engage the full automated sequence.
Promotes Safe and Efficient Operation: Allows technicians to keep hands on the product or tools while controlling the machine cycle, enhancing workflow safety.
Integrated Safety Feature: Typically includes a protective guard to prevent accidental actuation, aligning with industrial equipment safety standards.
Complete Installation Tool Kit and Spare Parts for Automatic Pad Printer
This collection represents the complete installation and maintenance tool kit provided with your machine. It includes essential items such as hex key wrench sets, regional-specific power connection cables, assorted fasteners, and other necessary consumables to facilitate initial setup and routine upkeep.
Ensures Immediate Deployment: Contains all basic tools and connectors needed for uncrating, assembly, and power-up, minimizing delay before production starts.
Supports Proactive Maintenance: Empowers your team to perform basic adjustments, part replacements, and preventative maintenance, promoting machine longevity and uptime.
Reflects Turnkey Delivery Philosophy: Supplying these installation accessories underscores our commitment to delivering a complete, ready-to-produce solution, not just machinery.
Juste Machine Application Area
The JST-VP-T150 fully automatic pad printing system is engineered as a universal platform for applying logos, text, and graphics to a vast array of manufactured goods. Its primary advantage is extraordinary adaptability; by customizing the tooling package, this single, robust system can efficiently handle diverse product families, maximizing your capital equipment utility.
By Industry Sector:
Packaging & Containers: Decoration of plastic bottle caps, cosmetic tubes and jars, lipstick cases, aerosol cans, and premium drinkware.
Consumer Electronics & Housewares: Printing on remote controls, keyboard keys, appliance handles, switch plates, and USB drive housings.
Promotional & Specialty Products: Branding for golf balls, poker chips, pen barrels, keychains, souvenir coins, and toy elements.
Automotive & Industrial: Marking on connectors, tool grips, control knobs, instrument faces, and valve bodies.
Medical & Healthcare: Applying scales or logos to syringes, vial caps, catheter hubs, and hand-held device housings.
By Substrate Material:
Polymers: ABS, PP, PE for bottles, caps, toys, and electronic enclosures.
Metals: Aluminum, stainless steel for lighter casings, watch components, medical instruments, and nameplates.
Glass & Ceramics: Perfume bottles, drinking glasses, ceramic mugs, tiles, and porcelain ornaments.
Elastomers: Silicone for kitchenware and wristbands; Rubber for shoe soles and seals.
Machines Packaging
Printing Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Information
Shenzhen Juste Machine Co., Ltd.
Since our founding in 2002, JUSTE has established itself as a premier Chinese manufacturer and factory dedicated to advanced printing automation technology. We focus on delivering engineered solutions that address the precise productivity challenges faced by modern manufacturers worldwide. Our portfolio includes sophisticated automatic pad printing machines, screen printing systems, and complementary pre-press and post-press equipment, serving sectors from pharmaceutical packaging to consumer electronics.
Operating as your direct factory source, we oversee the entire value chain from R&D to final testing, guaranteeing robust, high-precision, and value-engineered machinery. We recognize that your competitive edge relies on equipment uptime and output quality. Therefore, every JST-VP-T150 is supported by our commitment to comprehensive OEM/ODM services, responsive technical support, and a transparent 12-month parts and workmanship warranty. Choose JUSTE for a true partnership and a productivity-enhancing asset designed for your unique component decoration requirements.
How To Order
How To Place customize Vibrating Bowl Feeder Pad Printer order?
Phase 1: Consultation & Planning
Project Submission: Share your product samples, CAD files, or photos along with your annual volume and target output speed.
Technical Dialogue: Our engineering team will engage to understand your specific challenges regarding part material, geometry, and production environment.
Proposal Development: We will provide a detailed technical and commercial proposal for a custom-configured pad printing line, including all necessary tooling and options.
Phase 2: Order Execution
Contract Finalization: Upon approving the proposal, a formal Proforma Invoice (PI) with all terms will be issued for your confirmation.
Order Activation: Secure your production slot with the agreed deposit to commence the build of your bespoke printing system.
Build & Custom Fabrication: We manufacture the machine and concurrently produce your custom silicone pads, etched plates, and holding fixtures.
Phase 3: Quality Assurance & Delivery
Stringent Factory Acceptance Test: Your completed system undergoes rigorous testing, documented with a video report for your review.
Knowledge Transfer: You receive digital copies of the operator manual, maintenance guide, and parts list.
Logistics Coordination: We handle all export documentation and arrange secure shipping from Shenzhen, China.
Commissioning Support: Your machine arrives, and we provide remote support to ensure a smooth launch into your production.
FAQ
Q1: What level of customization do you offer for different products?
A: We provide complete OEM/ODM solutions. The entire system—vibratory feeder rails, robotic grippers, product nests, silicone transfer pads, and cliché plates—is custom-designed for your specific item, whether it’s complex medical devices or standard bottle caps.
Q2: How does your quality control process work before shipment?
A: Every automatic pad printing machine undergoes a mandatory 48-hour continuous run-off test under load. We conduct a pre-shipment inspection and provide a video recording of this test, demonstrating machine performance with your actual product samples or proxies.
Q3: What are the primary power and utility requirements for this line?
A: The main unit requires 220V/50Hz or 110V/60Hz single-phase power (20-50W) and a clean compressed air supply of 4-6 bar. The optional UV curing station may require standard 3-phase power, detailed in the technical specs.
Q4: Can you assist with ink selection and technical process setup?
A: Absolutely. As a full-system supplier, we offer guidance on compatible ink chemistries for different materials (e.g., adhesion on PP plastic or glass) and provide initial process parameters to ensure you achieve optimal results from day one.
Q5: What is the typical installation and setup timeframe at our facility?
A: The system is designed for straightforward installation. With a pre-leveled floor and utilities in place, physical setup typically takes 1-2 days. Process fine-tuning and operator training require an additional 2-3 days, often supported via video call for efficiency.
Q6: Do you keep common spare parts in stock?
A: Yes, we maintain an inventory of critical spare parts—such as common pneumatic solenoid valves, sensors, and mechanical components—to ensure rapid dispatch in the unlikely event a replacement is needed, minimizing your downtime.
All machines must be passed by our QA inspection department before shipping.
