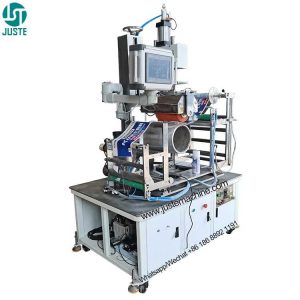

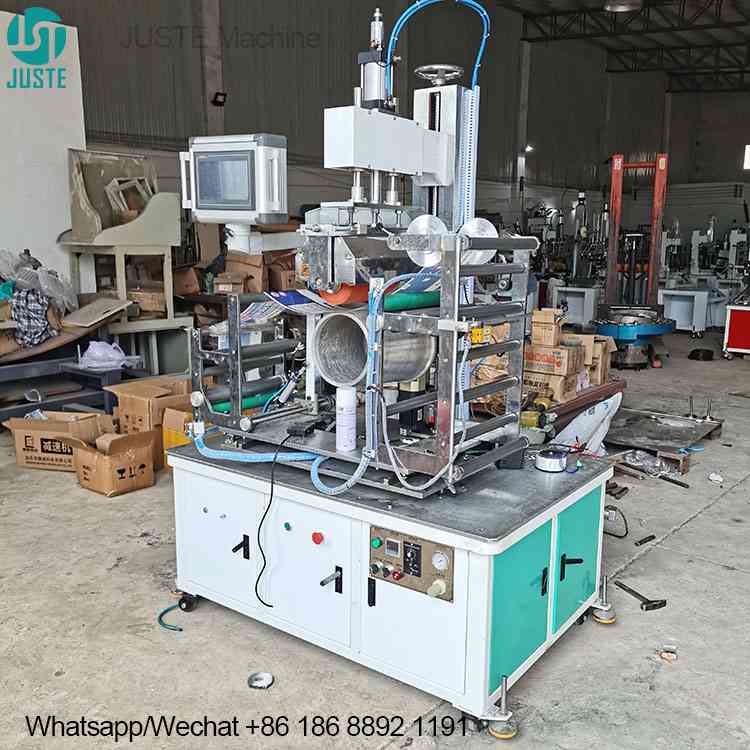

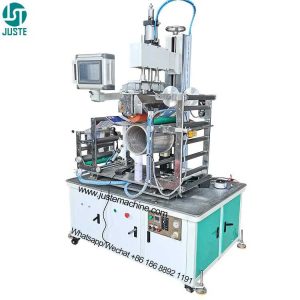

Heavy-Duty Precision: Industrial Custom Fixture Bucket Heat Transfer Machine

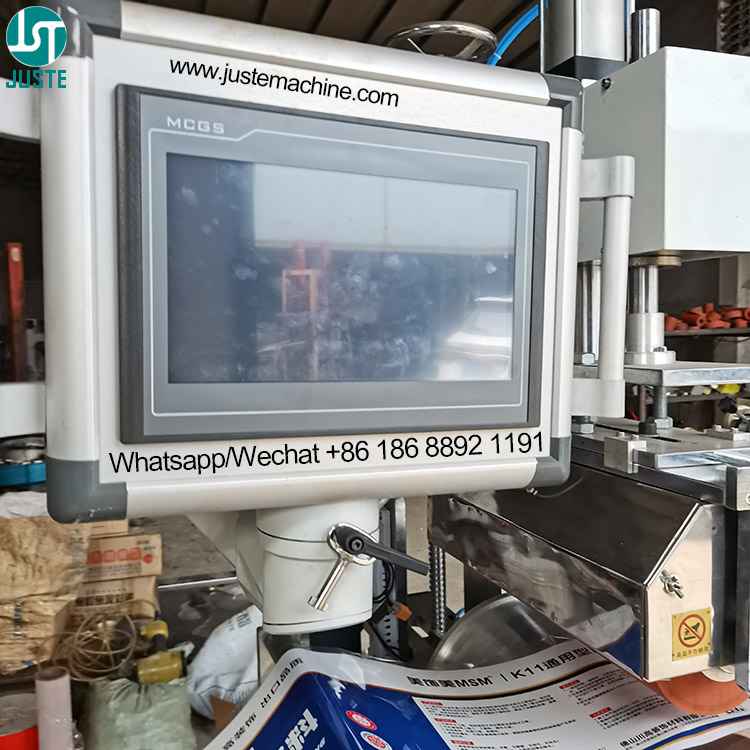

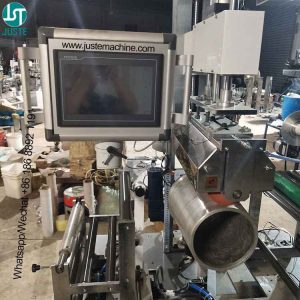

Control Panel for Automatic Hot Stamping Machine

The nerve center of the JST-H400 is its advanced PLC digital touchscreen control panel. This interface provides unparalleled command over every machine parameter, from temperature and speed to pressure and timing. It simplifies operation with its user-friendly layout, allowing for quick setup and seamless recipe management for different products, ensuring consistent results batch after batch.

User-Friendly PLC Interface: Easily set and monitor printing speed, temperature, and time with the digital touchscreen for precise control.

Recipe Memory Function: Save optimal settings for different drum sizes and designs, enabling fast changeover and reducing setup time.

Real-Time Monitoring: Instantly view operational status and diagnostics, allowing for quick troubleshooting and minimizing potential downtime.

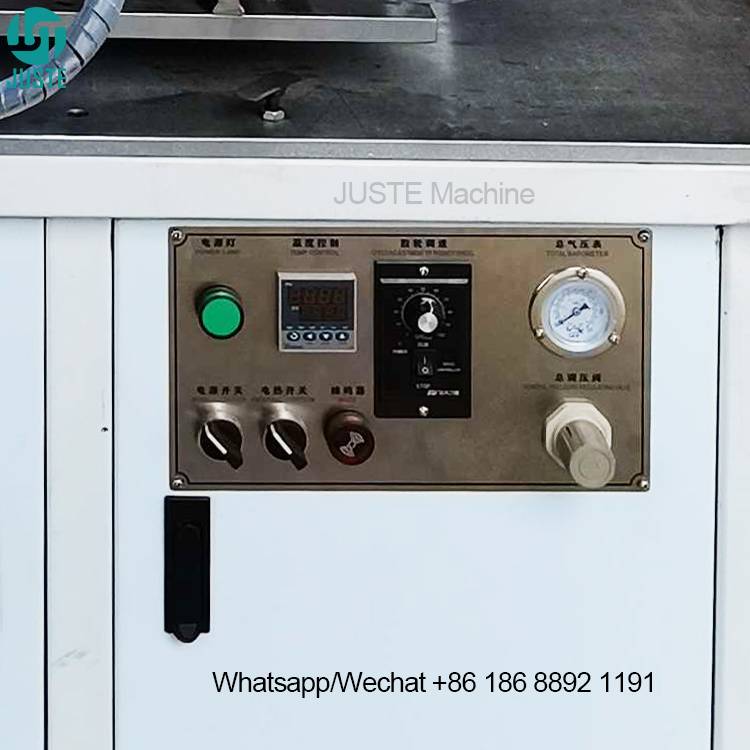

Power Control Buttons for Heat Transfer Machine

Centralized for safety and convenience, the main control station houses the power switch, emergency stop, start button, and temperature controller. The prominently placed emergency stop ensures immediate shutdown for operator safety, while the dedicated temperature controls allow for fine-tuned heat management critical for perfect transfers.

Instant Emergency Stop: Ensures immediate machine halt for maximum operator safety during any unforeseen circumstance.

Dedicated Temperature Regulation: Provides precise control over the heating furnace temperature, which is crucial for clean and consistent foil release.

Centralized Operation Hub: Groups all essential controls in one accessible location for streamlined and efficient machine management.

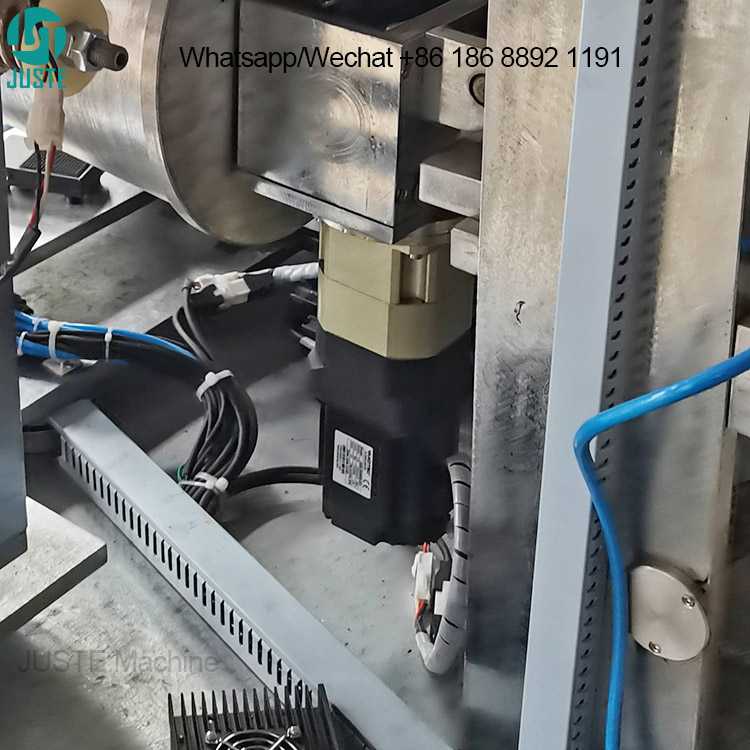

Servo Motor for High Precision Fixture Rotation

This high-precision servo motor is responsible for the accurate rotation of the product fixture. It ensures that the drum rotates at a perfectly controlled speed during the transfer process, which is vital for applying distortion-free, high-resolution images even on conical surfaces.

High-Precision Positioning: Guarantees exact fixture rotation, eliminating image distortion and ensuring perfect registration on every print.

Smooth & Variable Speed Control: Allows for precise adjustment of the rotation speed to match the specific requirements of different drum sizes and designs.

Consistent Repeatability: Delivers reliable and identical performance for every cycle, ensuring uniform quality across all your production runs.

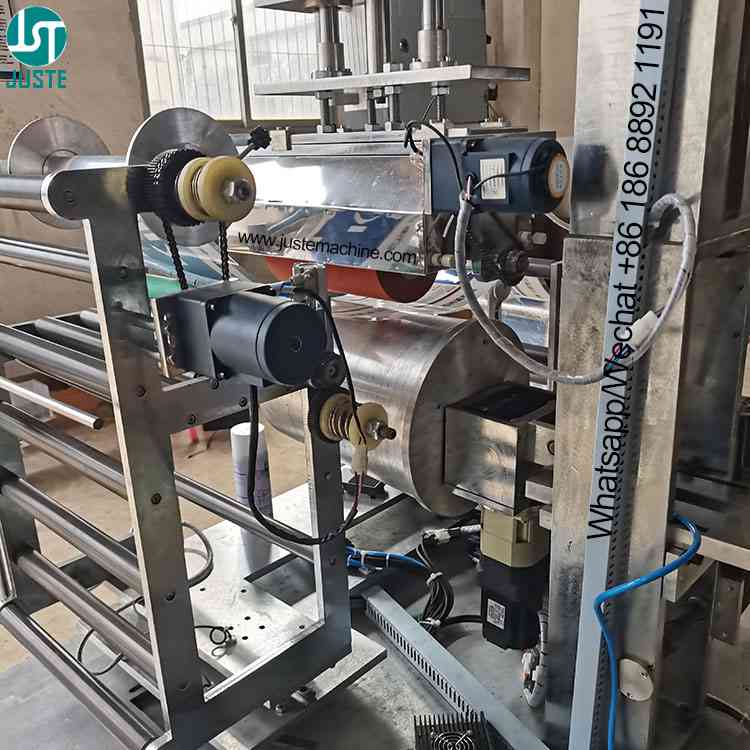

Adjustable Film Holding Frame with Tension Control

This versatile adjustable film frame can be modified in its tilt, vertical, and horizontal position. This flexibility is key to aligning the transfer film perfectly with the drum’s surface, ensuring the graphic is applied squarely and without stretching or warping.

Multi-Axis Adjustment: Fine-tune the vertical, horizontal, and tilt angles to achieve perfect film alignment with the product surface.

Secure Film Unwinding: Provides a stable and controlled pay-out for the roll of transfer foil, which is essential for a smooth process.

Enhanced Application Accuracy: Precise alignment prevents skewed graphics and ensures the design is applied exactly as intended.

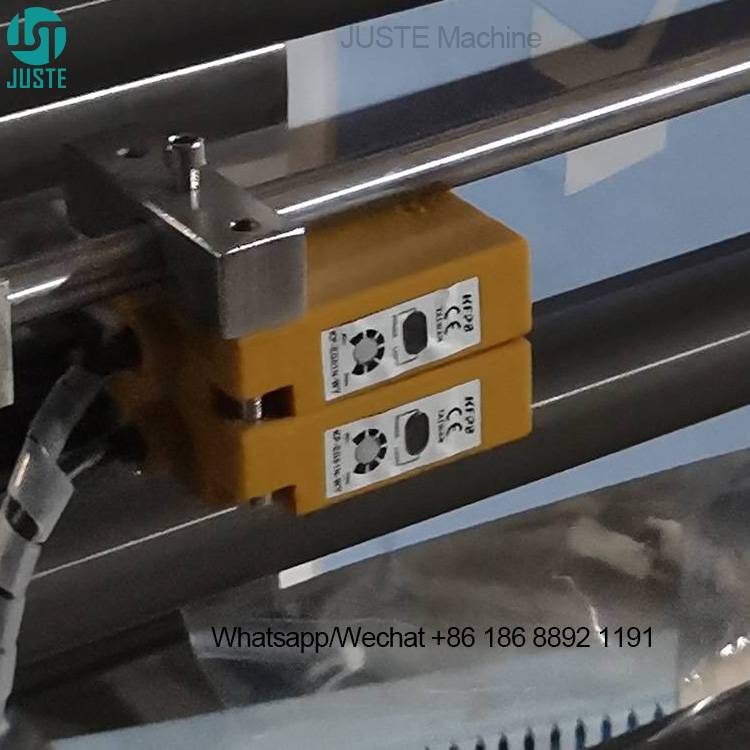

Film Detector Sensor for Automatic Hot Stamping

This smart film detector automatically identifies the blank gaps between patterns on the transfer film. Upon detection, it signals the machine to complete a single printing cycle, preventing the application of a partial image and ensuring each drum receives a complete, perfectly positioned graphic while minimizing film waste.

Automatic Pattern Recognition: Detects the blank gaps between designs on the film roll, automating the print cycle initiation.

Reduces Material Waste: Ensures that every impression uses a viable pattern section, optimizing your consumable usage.

Ensures Complete Transfers: Prevents the machine from stopping mid-design, guaranteeing every drum gets a full and perfect print.

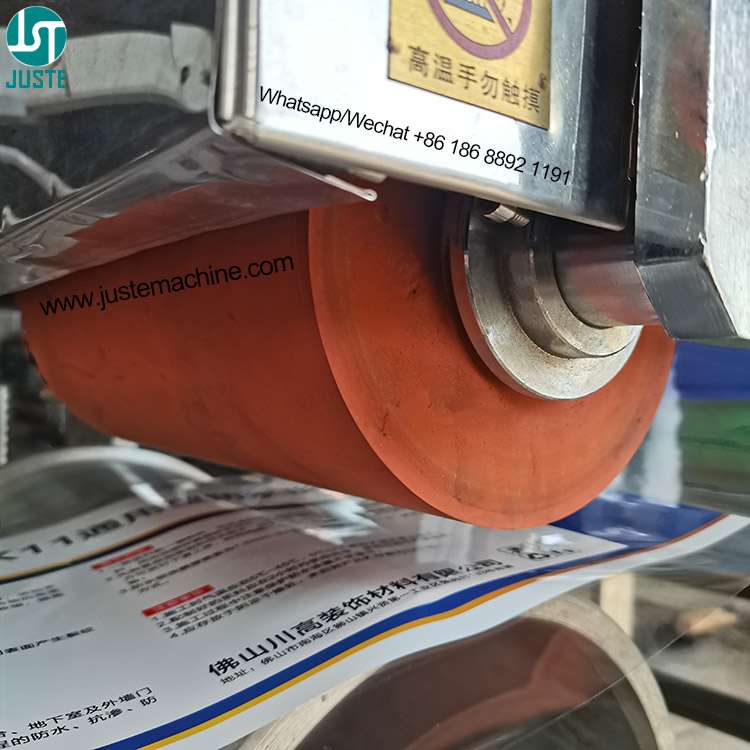

Heating Furnace for Silicone Roller Hot Stamping

The core of the heat transfer process, this powerful heating furnace brings the massive silicone roller up to the set working temperature. Its efficient and stable heating is crucial for uniformly softening the transfer foil’s adhesive layer, allowing it to cleanly release from the carrier film and bond to the drum’s surface.

Rapid Heat-Up Time: The industrial-grade heating elements quickly bring the silicone roller to the optimal operating temperature.

Stable Temperature Control: Maintains a consistent temperature across the entire roller surface for uniform transfers from the first drum to the last.

Robust Thermal Capacity: Designed to handle continuous operation without performance degradation, ensuring reliability in demanding production environments.

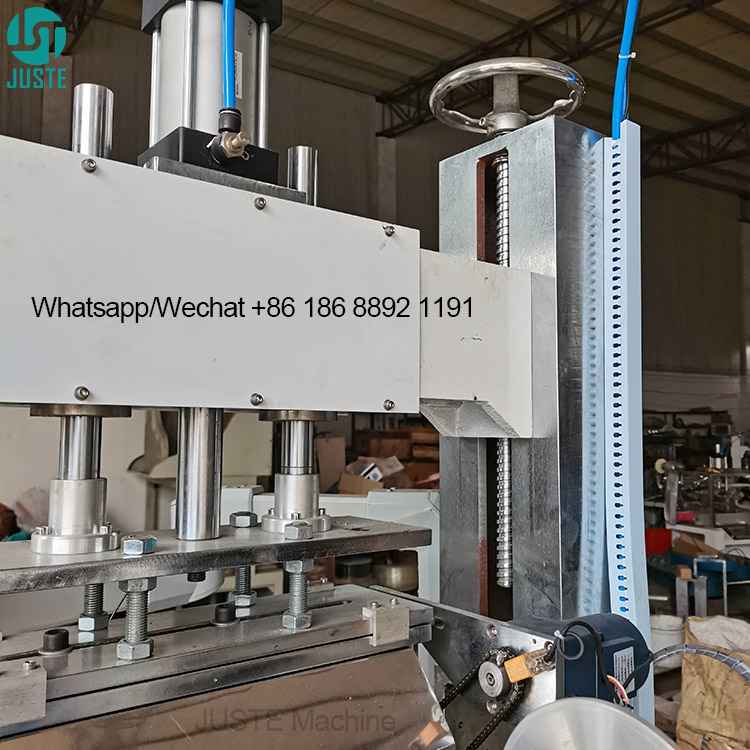

Printing Head Height Adjustment Mechanism

This robust mechanism allows for the vertical adjustment of the entire printing head assembly. This is a critical setup function that enables the machine to accommodate drums of varying heights and diameters, ensuring the silicone roller makes perfect contact with the product surface.

Macro-Height Adjustment: Allows for quick and easy setup to accommodate a wide range of product heights, from small pails to large drums.

Secure Locking System: Once the optimal height is set, the mechanism locks firmly in place to prevent any drift during operation.

Expands Machine Versatility: This adjustment is fundamental to making the machine suitable for a diverse range of container sizes.

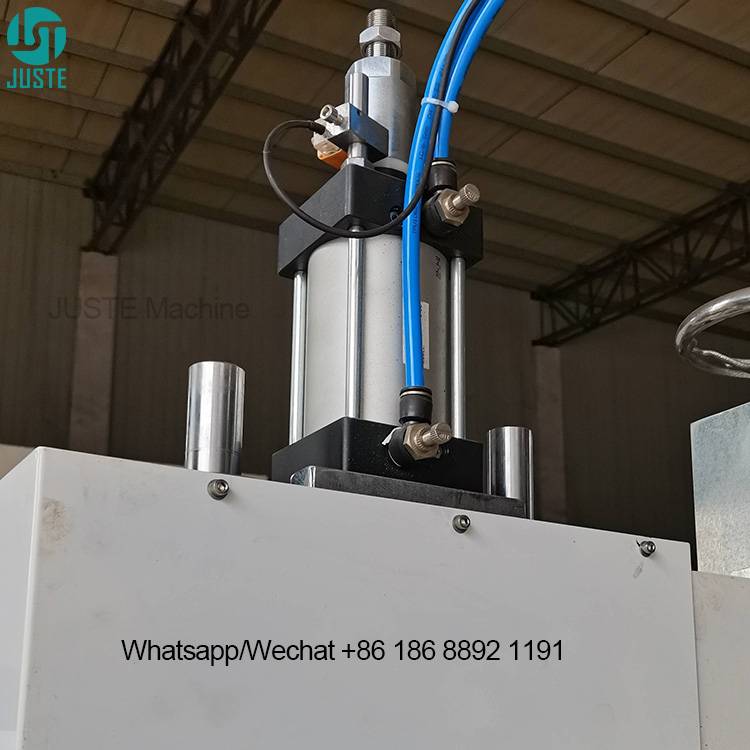

Pneumatic Cylinder for Printing Head Movement

These heavy-duty pneumatic cylinders provide the powerful and precise vertical movement of the printing head. They control the “downstroke” that applies the heated silicone roller to the drum and the “upstroke” that retracts it after the transfer is complete. The stroke length can be adjusted to suit different product profiles.

Powerful Pneumatic Pressure: Delivers the consistent and significant force needed for a perfect transfer onto tough container surfaces.

Adjustable Stroke Length: The up-and-down travel distance can be customized to optimize cycle times for different product heights.

Smooth & Reliable Action: Ensures precise and repeatable head movement cycle after cycle, contributing to consistent print quality.

Air Filter for Pneumatic Stamping Machine

This vital component protects your machine’s pneumatic system and the final print quality. The air filter removes moisture, oil, and other contaminants from the compressed air supply, preventing damage to the cylinders and valves and ensuring that no impurities affect the transfer surface.

Protects Pneumatic Components: Extends the lifespan of cylinders and valves by ensuring they receive only clean, dry air.

Safeguards Print Quality: Prevents oil or water spots from contaminating the drum surface or the transfer foil during application.

Essential for Reliability: A simple but critical component for maintaining consistent machine performance and reducing maintenance.

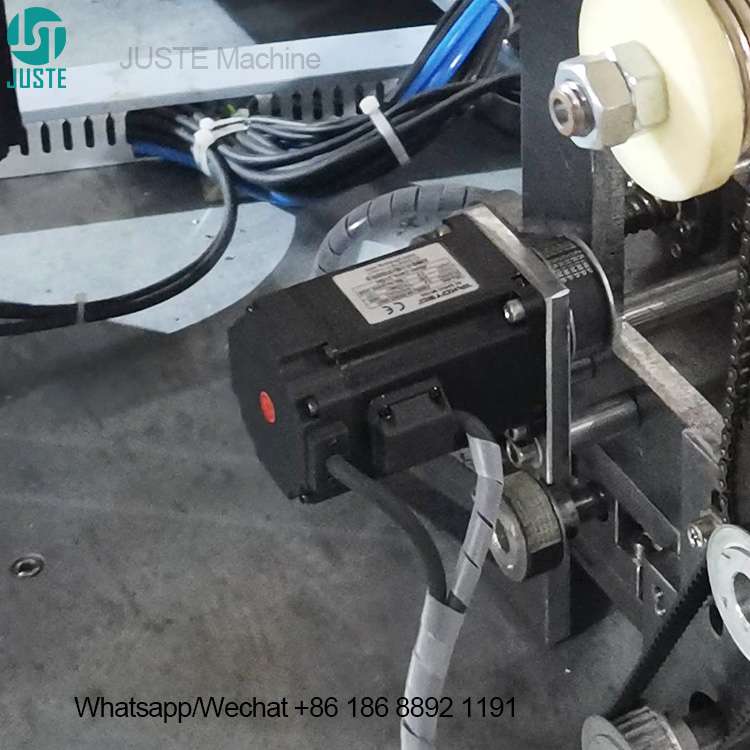

Film Rewinding Motor for Used Foil Collection

After the transfer is complete, this film rewinding motor automatically engages to wind the spent carrier film onto a collection roll. This keeps the work area tidy, prevents film from interfering with the machine operation, and streamlines the disposal of used material.

Automatic Waste Collection: Keeps the used transfer film neatly wound on a take-up roll, maintaining a clean and organized workspace.

Consistent Tension: Provides steady rewinding action to prevent film jams or breaks that could disrupt the automated process.

Hands-Free Operation: Once set up, the operator does not need to manually manage the used film, improving efficiency.

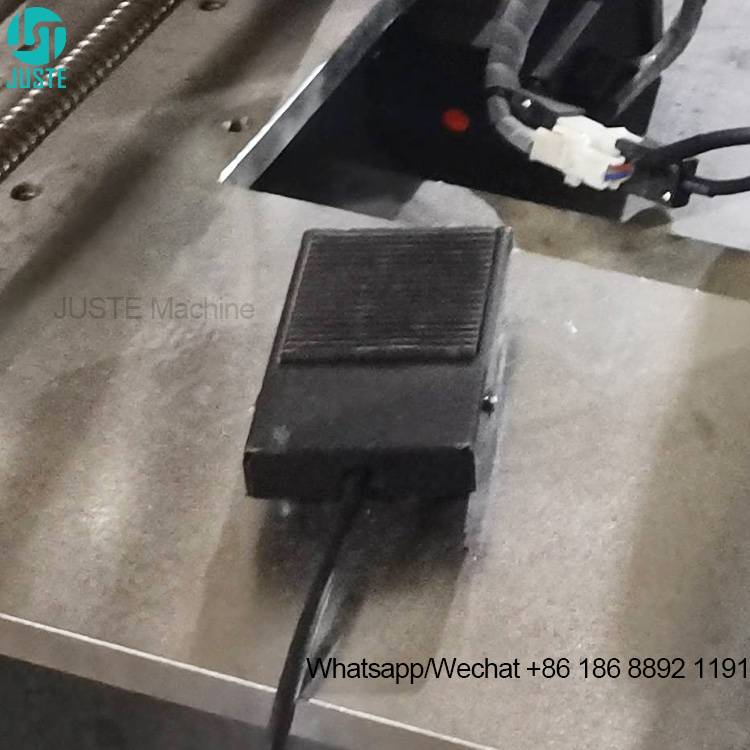

Foot Pedal Switch for Hands Free Operation

The foot pedal switch is a key ergonomic and efficiency feature. It allows the operator to initiate the printing cycle with a foot press, leaving both hands completely free to safely position and remove the large drums. This significantly speeds up the loading/unloading process and enhances operator safety.

Enables Hands-Free Cycling: Frees the operator’s hands to focus on product handling, increasing safety and speeding up the process.

Improves Production Rhythm: Allows the operator to control the machine cycle seamlessly while handling products, creating a smoother workflow.

Ergonomic Design: Reduces physical strain and upper body movement, minimizing operator fatigue over long shifts.

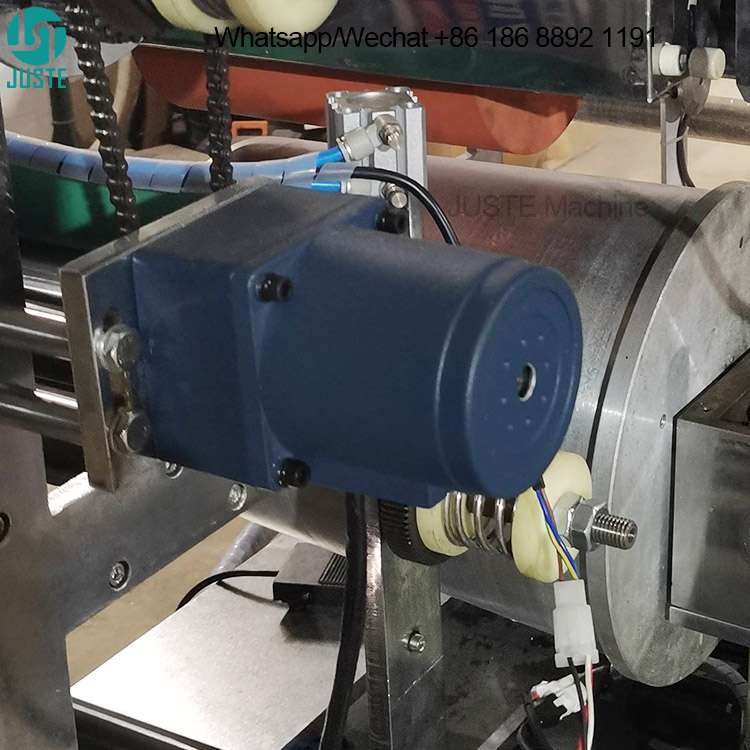

Film Tension Motor for Wrinkle Free Transfer

Working in conjunction with the unwinding frame, this tension motor applies a controlled reverse torque to the film roll. This creates consistent tension across the transfer film, preventing sagging, wrinkles, or misalignment as it feeds into the printing zone, which is essential for a flawless application.

Eliminates Film Wrinkling: Maintains optimal tension on the film web to prevent creases that would ruin the transferred image.

Ensures Precise Registration: Keeps the film stable and accurately positioned as it moves under the printing head.

Automated Tension Control: Provides a consistent, motorized solution that is more reliable than manual spring-based systems.

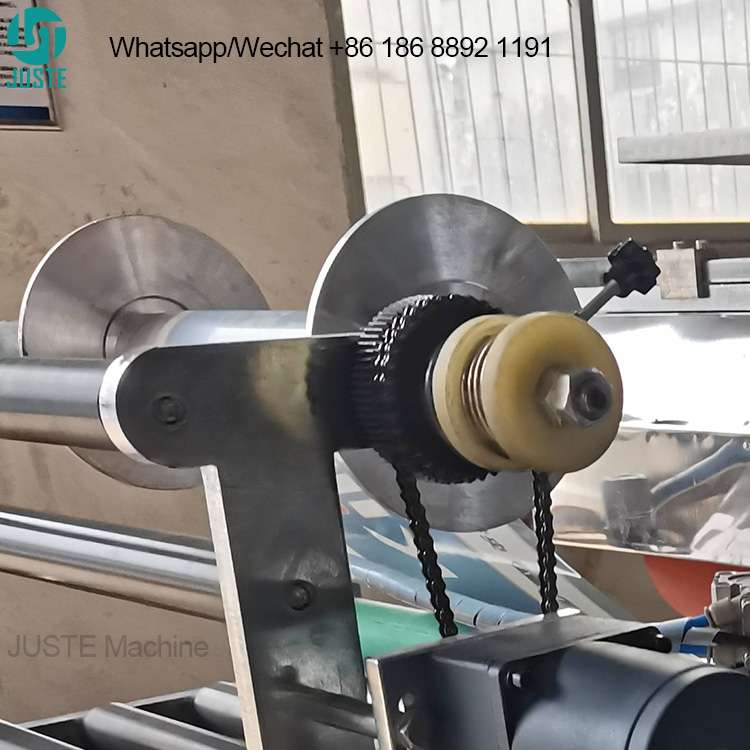

Film Roll Holder for Hot Stamping Machine

This is the sturdy mounting point for the new roll of transfer foil. It is designed to hold large, heavy rolls of film securely in place, allowing for smooth and unimpeded unwinding during the automated printing process.

Secure Roll Holding: Firmly grips the core of the transfer film roll, preventing slippage or misalignment during operation.

Accepts Large Roll Sizes: Designed to accommodate industrial-sized film rolls, maximizing uptime between reloads.

Smooth Unwinding Action: Ensures the film pays out evenly, which is a prerequisite for a trouble-free transfer process.

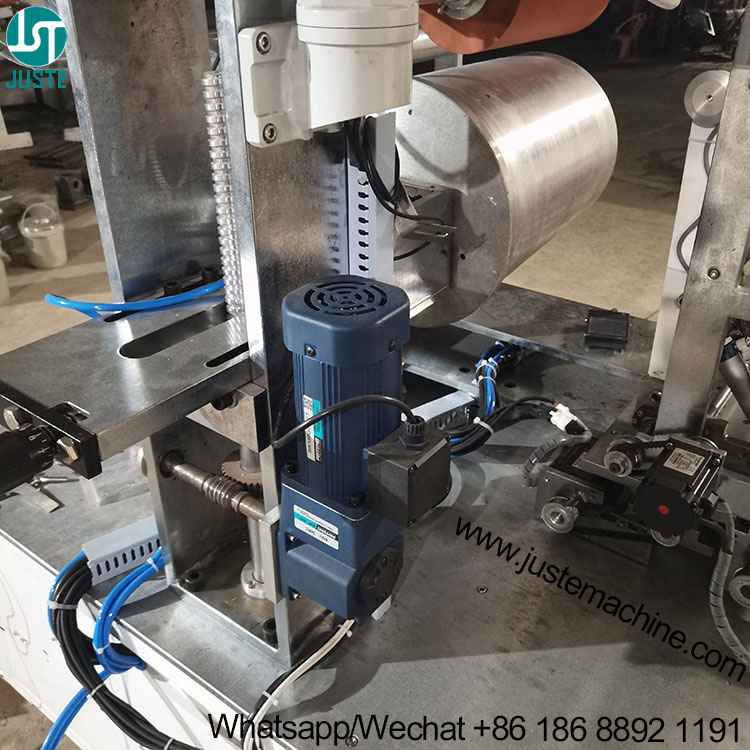

Fixture Lifting Motor for Oval Object Printing

For printing on oval or irregularly shaped containers, this fixture lifting motor provides vertical movement to the product fixture. It synchronizes the up-and-down motion of the drum with the rotation, ensuring the silicone roller maintains constant and perfect contact across the entire contoured surface.

Enables Complex Shape Printing: Essential for applying perfect prints on oval, tapered, or irregularly shaped drums and pails.

Synchronized Motion Control: Precisely coordinates the vertical movement of the fixture with the rotation for consistent contact.

Expands Application Range: Unlocks the ability to decorate a wider array of non-cylindrical product shapes.

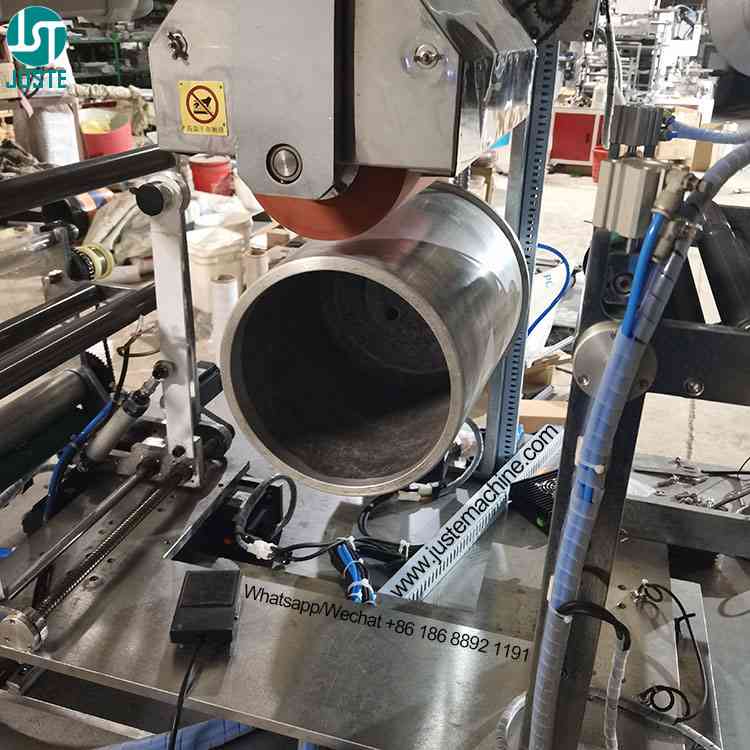

Customizable Fixture for Drum Printing Machine

The fixture is the custom mandrel that securely holds the drum in place during the printing process. Fixtures are typically customized to the specific internal dimensions of the customer’s container, ensuring a snug fit that prevents movement and guarantees precise, repeatable registration.

Customizable Design: Tailored to the exact dimensions of your specific drums, pails, or buckets for a perfect fit.

Secure Product Locking: Holds the container firmly in place to prevent any rotation or shifting during the transfer process.

Guarantees Print Accuracy: The precision of the fixture is directly responsible for the precise placement of the graphic on the product.
