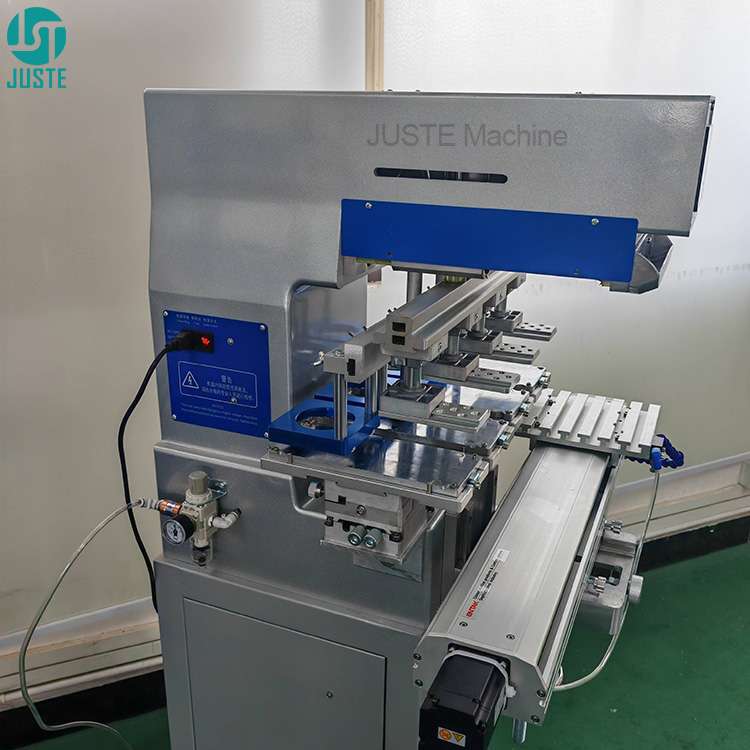

4 Color Ink Cup Pad Printer With Servo Shuttle Tampo Pad Printers For Toy

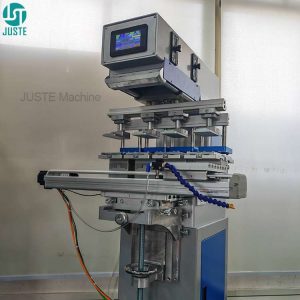

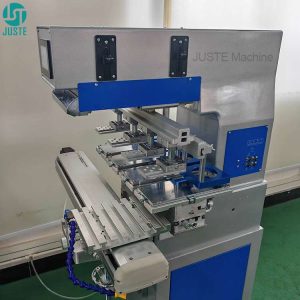

4 Color Ink Cup Pad Printing Machine With Servo Shuttle
Welcome to the next level of industrial pad printing precision. The JST-P4-SC175 is a professional-grade 4 color pad printing machine engineered for unmatched accuracy and efficiency in multi-color applications. This semi auto pad printer integrates an advanced servo motor driven shuttle system, ensuring perfect color registration every time. The innovative ink cup system guarantees clean, leak-free operation with minimal ink waste, making it an ideal cost-effective solution for decorating a wide range of products.
From cosmetic containers and medical parts to bottles, caps, and LED bulbs, this versatile machine delivers consistent, high-quality prints. Its compact footprint saves valuable factory floor space while its robust construction promises durable performance and a rapid return on investment. Designed for easy operation, it empowers your team to achieve professional results with minimal training.
Maximized Productivity & High ROI : Achieve printing speeds of 500-2500 cycles per hour, significantly boosting your output and ensuring a fast return on your investment. This multi color pad printing machine is built for high-volume production environments.
Unmatched Printing Precision : The servo pad printer shuttle system provides exceptional accuracy for complex 4 color pad printing tasks, eliminating misalignment and reducing reject rates for perfect branding on every item.
Remarkable Operational Simplicity & Space Efficiency : Featuring a user-friendly control panel and intuitive workflow, the machine reduces training time and operator error. Its compact pad printing machine design is ideal for workshops with limited space.
Superior Ink Management & Cleanliness : The sealed ink cup system prevents solvent evaporation, maintains ink viscosity, and creates a cleaner, safer working environment compared to traditional open-inkwell systems.
Extensive Customization & Versatility : We support OEM and custom solutions, including tailored jigs/moulds and silicone pads, to perfectly fit your specific product, whether it’s a golf ball, syringe, or phone case.
Products Description
| Brand | JUSTE |
| Model | JST-P4-SC175 |
| Machine Type | 4 Color Ink Cup |
| Dynamic type | Pneumatic / Servo Shuttle |
| Printing color | 4 Colors / Customize |
| Jig/Mould QTY | 1 / customize |
| Max plate size | 100*150 / 100*200mm / Customize |
| Pad Slide distance | 145MM / 200MM |
| Max print size | 70*120mm / 70*170mm/ Custoimize |
| Printing speed/hr | 500-2500 |
| Mode of operation | Semi Auto |
| Machine size | 700*780*1380MM |
| Pad Print Weight | 130KG |
| Air pressure(bar) | 4-6 |
| Wattage | 1KW |
| Power | 220V/ 50HZ-110V/60HZ |

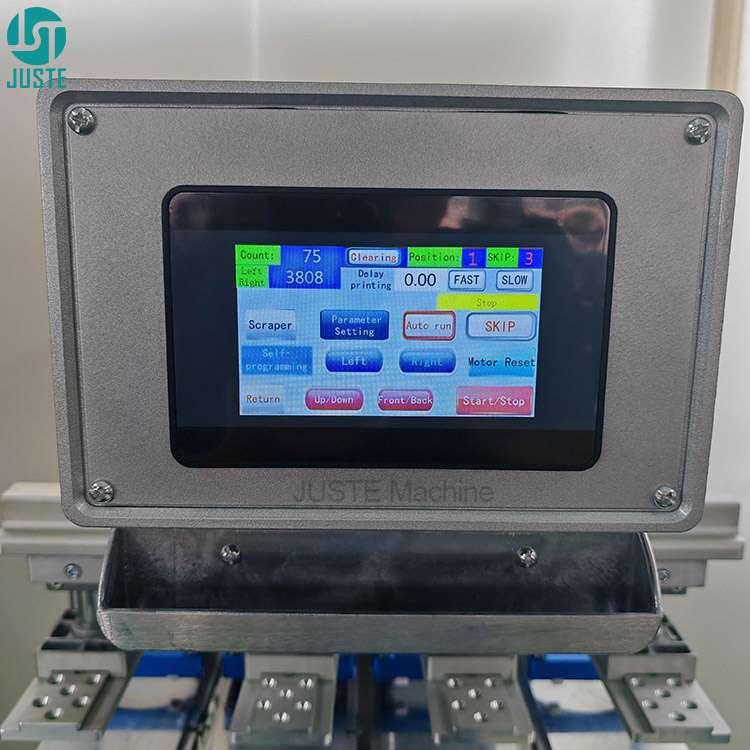

Counter Display Control Panel For 4 Color Ink Cup Pad Printer
The centralized control panel is the command center of your printing operation. It features a clear digital counter that tracks production volumes accurately for batch management. The intuitive interface allows for easy setup of printing parameters, ensuring consistent results and simplifying operator training. This enhances overall production control and efficiency.
User-Friendly Interface: Simplifies machine operation and reduces the learning curve for new operators, boosting productivity.
Precise Production Tracking: The integrated counter provides accurate data for production planning and quality control.
Centralized Command Hub: Allows for quick adjustments and monitoring of all key printing functions from one location.
Customizable Cliche Plate For Pad Printing Machine
This is the heart of your design—the custom cliche plate where your logo or artwork is precision-engraved via laser or etching. Made from high-grade steel, it ensures sharp definition and a long service life. We provide tailored plates to match your specific pattern requirements, guaranteeing that your brand identity is reproduced with perfect clarity on every product.
Laser-Engraved Precision: Guarantees sharp, detailed, and consistent reproduction of your most complex logos and graphics.
Durable Steel Construction: Withstands long-term use and provides a stable foundation for high-quality ink transfer.
Made-to-Order Customization: Each plate is customized to your specific artwork, ensuring your unique design is perfectly captured.

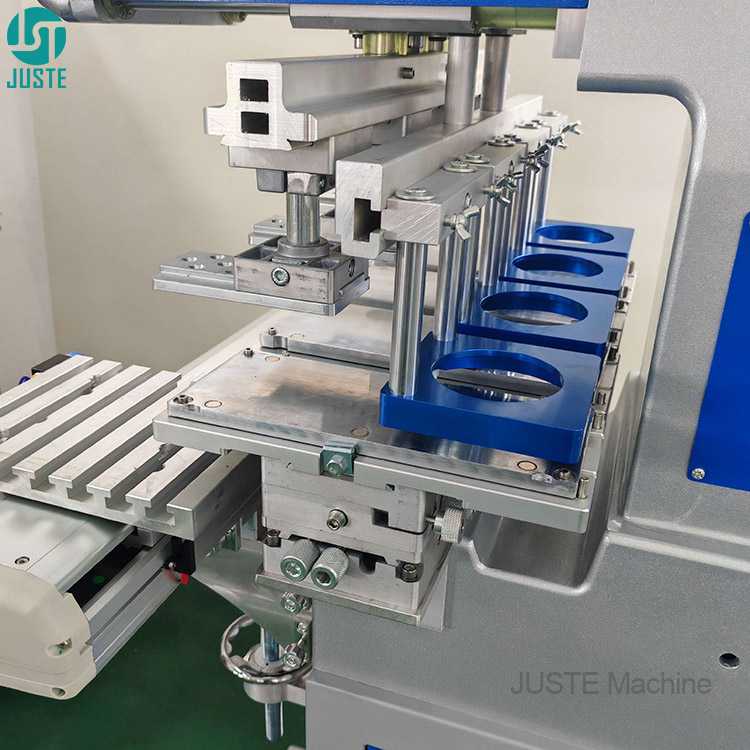

Printing Head Unit for Ink Cup Pad Printer
The printing head is the crucial component that picks up ink from the cliche plate and transfers it onto your product. Engineered for consistent movement and pressure application, it ensures a clean and complete ink pickup and release. Its robust pneumatic operation provides the reliable force needed for millions of cycles.
Consistent Transfer Action: Ensures uniform ink pickup and deposition for a flawless print finish on every single cycle.
Robust Pneumatic Drive: Provides reliable and consistent downward force for dependable operation in industrial environments.
Easy Maintenance Design: Simplifies service and part replacement to minimize potential downtime.

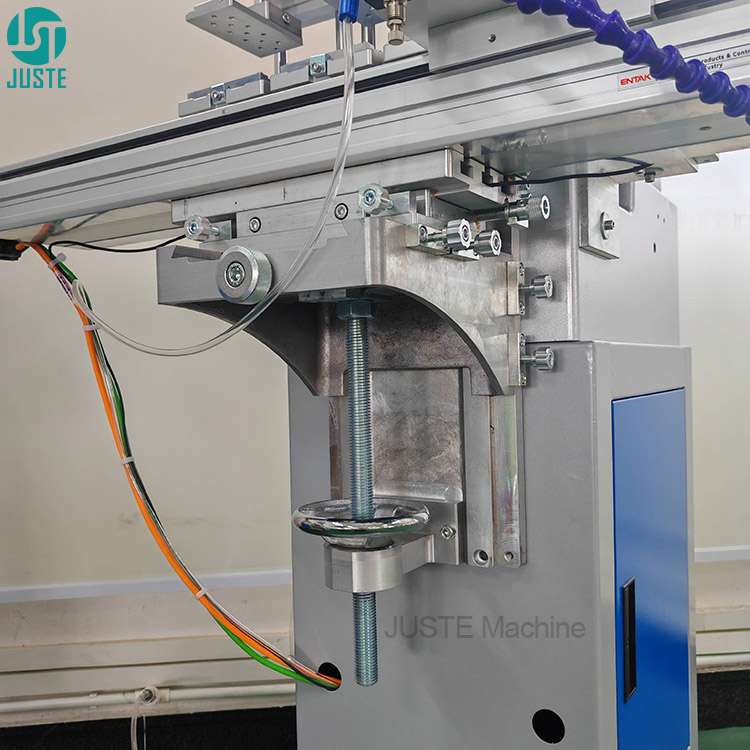

Height Adjustable Printing Station For Pad Printer
This height-adjustable worktable is designed to accommodate products of various shapes and sizes. It provides a stable and level platform for your jig/mould, ensuring consistent contact with the silicone pad. The easy adjustment mechanism allows for quick changeovers between different production runs, enhancing operational flexibility.
Versatile Height Adjustment: Easily adapts to products of different thicknesses and geometries, maximizing machine application.
Stable Product Platform: Ensures zero movement during the printing process, which is critical for achieving high print registration.
Quick Changeover Design: Allows for fast switching between different product lines, reducing setup time and increasing efficiency.

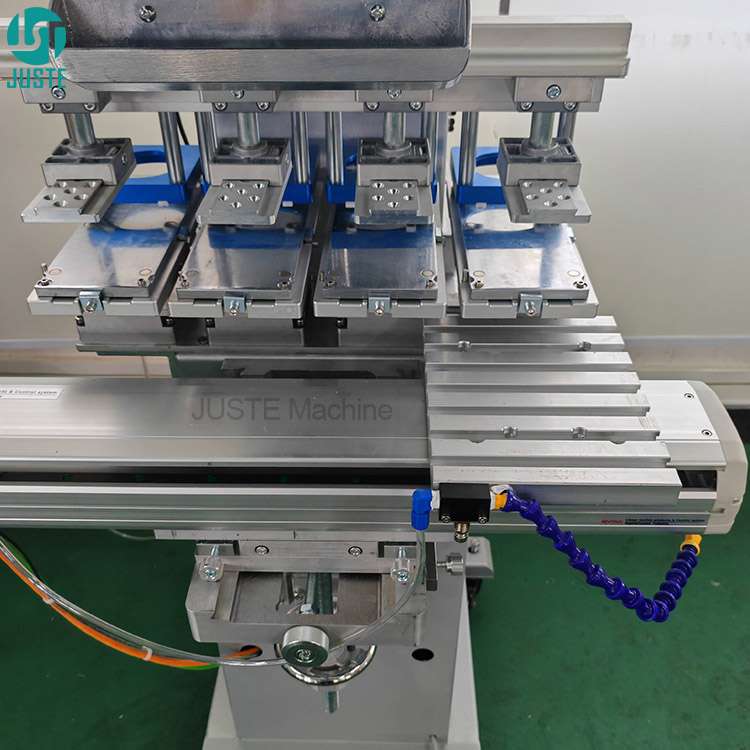

Servo Shuttle System For Multi Color Pad Printer
This is the core of the machine’s high-precision multi-color capability. The Servo Shuttle moves the worktable and fixture accurately between different printing stations. Unlike pneumatic systems, the servo-driven movement is extremely precise and programmable, ensuring perfect alignment (registration) between consecutive colors.
Perfect Color Registration: Enables precise alignment for complex multi color pad printing, producing professional-grade results.
Programmable Servo Control: Offers accurate and repeatable positioning, which is faster and more reliable than mechanical systems.
Smooth & Stable Motion: Reduces vibration during movement, contributing to higher print quality and machine longevity.

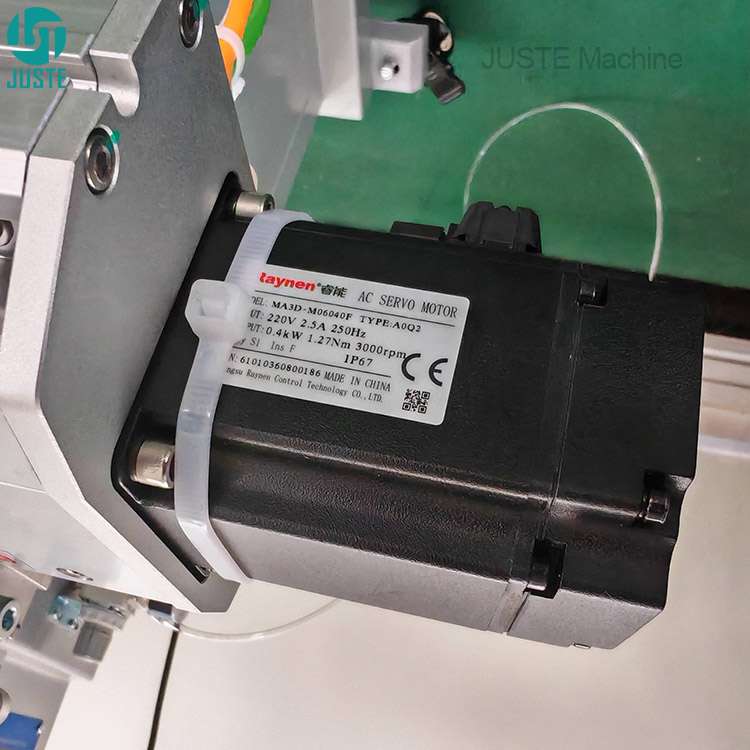

Servo Motor Drive For High Precision Pad Printing
The servo motor is the power behind the high-precision shuttle system. It provides precise digital control over movement, speed, and position. This translates directly into the machine’s ability to perform accurate double color and four colour pad printing with exceptional repeatability, minimizing waste and maximizing yield.
Digital Precision Control: Delivers exact and repeatable movements that are essential for high-quality multi-color printing.
Enhanced Production Efficiency: Allows for faster and more accurate cycling compared to non-servo machines.
Reliable & Durable Performance: Built for continuous operation in demanding manufacturing settings, ensuring long-term reliability.
Custom Product Jig For Plastic Parts Pad Printing
The jig or mould is a custom-made fixture that holds your product securely in place during the printing process. We design and manufacture these fixtures specifically for your item—whether it’s a plastic bottle, golf ball, or medical tube—to guarantee it remains stable and correctly positioned for a perfect print every time.
Product-Specific Design: Guarantees a secure and perfect fit for your item, eliminating movement and misprints.
Secure Holding Mechanism: Ensures the product does not shift during the printing cycle, which is critical for accuracy.
Rapid Loading & Unloading: Optimized design allows operators to load and unload products quickly, boosting overall cycle speed.
Standard Accessories Kit For Pad Printing Machine
Your machine arrives as a complete, ready-to-use package. We include a comprehensive set of standard accessories, such as hex screwdriver sets, a power cable, and assorted screws. This thoughtful inclusion ensures you have the essential tools on hand for initial setup, routine maintenance, and minor adjustments, minimizing downtime and facilitating a smooth start to your production.
Complete Startup Package: Provides all essential tools required for initial machine assembly and immediate operation.
Convenient Maintenance Ready: Includes necessary items like hex keys for routine adjustments and part replacements, saving you time.
Guaranteed Compatibility: All provided accessories are certified to be perfectly compatible with your machine, ensuring safety and performance.

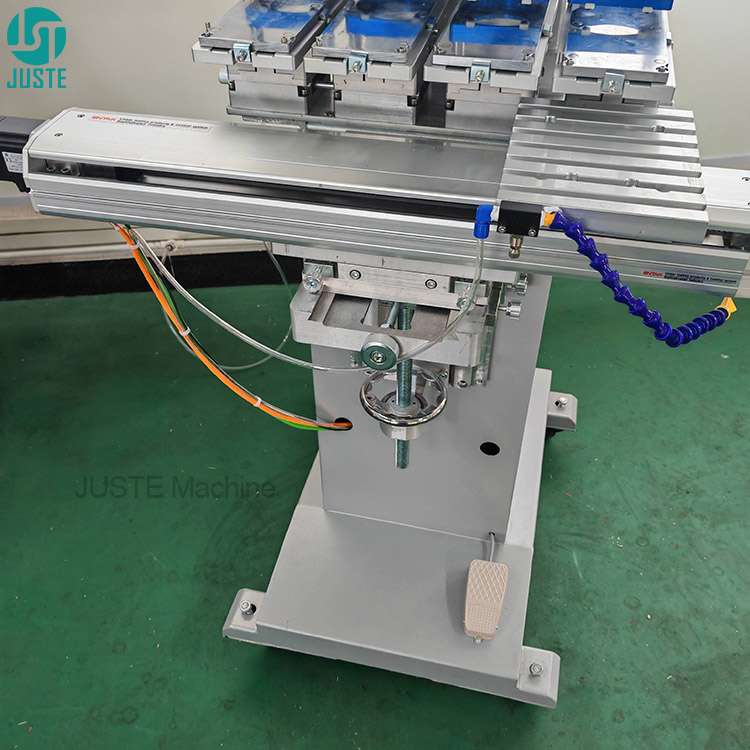

Foot Pedal Switch For Semi Automatic Pad Printer
The foot pedal switch provides hands-free control over the printing cycle. This allows the operator to use both hands to securely position the product, then simply step on the pedal to initiate a single print. This enhances both operational safety and production speed.
Hands-Free Operation: Increases safety and efficiency by allowing the operator to use both hands to handle the product.
Single Cycle Activation: Ensures the machine completes one predetermined cycle with each press, preventing double prints.
Ergonomic & Responsive Design: Built for comfort and reliability during repetitive use throughout a full production shift.
Silicone Printing Pad For Custom Shapes Pad Printer
The silicone pad is the flexible tool that transfers the ink from the plate to your product. Its soft yet durable composition allows it to conform to curved, textured, or irregular surfaces. We offer a range of silicone pads in various shapes and hardness levels, customized to suit the contour of your specific product for optimal ink transfer.
Conforms to Complex Shapes: Effectively prints on curved, textured, or uneven surfaces that other methods cannot handle.
Customized for Your Product: Available in various shapes and hardness levels to achieve the best possible print result on your item.
Durable & Long-Lasting Material: Withstands continuous use and provides consistent performance over a long service life.

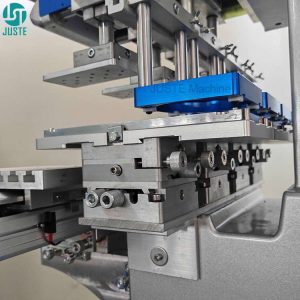

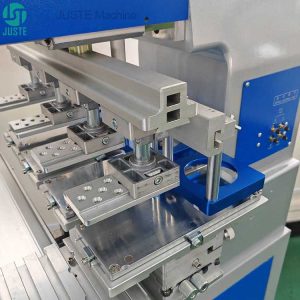

Sealed Ink Cup Unit For Clean Pad Printing Process
The ink cup is a sealed chamber that holds the printing ink and houses the doctoring ring. It moves across the cliche plate, flooding the engraved image with ink and then doctoring away the excess. This closed system prevents dust contamination, reduces solvent evaporation, and creates a much cleaner working environment.
Clean & Efficient Operation: Significantly reduces ink spoilage and prevents environmental contamination in the workspace.
Consistent Ink Viscosity: The sealed system minimizes solvent evaporation, maintaining optimal printing consistency.
Integrated Doctoring Blade: Provides a sharp, clean doctor edge within the cup for precise ink removal from the plate.

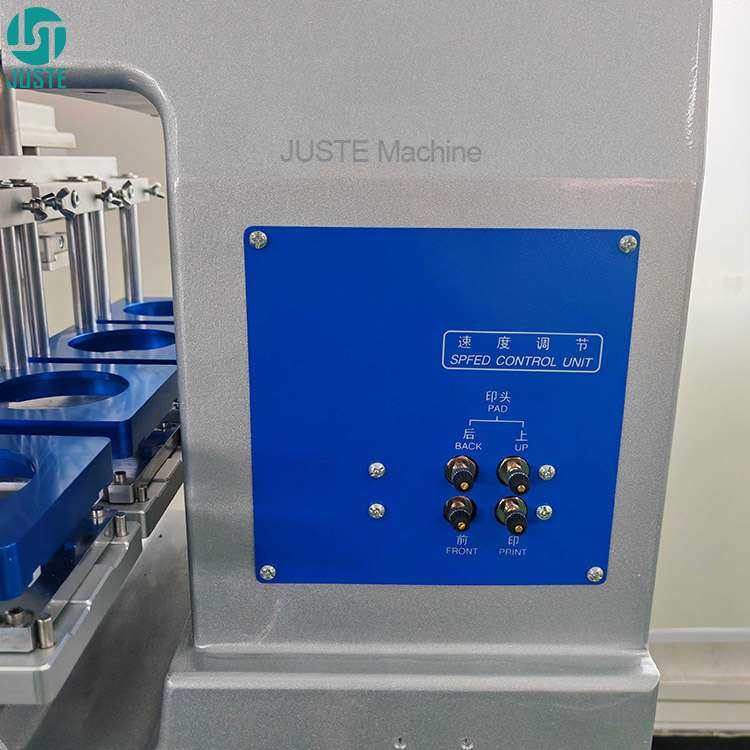

Air Pressure Control Buttons For Pneumatic Pad Printing Machine
Gain precise command over your machine’s pneumatic functions with individual air pressure control buttons. These controls allow operators to fine-tune the air pressure for specific actions such as the printing head stroke. This precision is key to adapting the machine for different materials and print depths, ensuring optimal ink transfer and protecting delicate products.
Individual Component Control: Allows for precise pressure adjustment for different pneumatic actions like the print head or ink cup.
Optimized Print Quality: Enables fine-tuning for perfect ink deposition on various product materials and surface textures.
Enhanced Process Flexibility: Makes it easy to adapt the machine’s force and speed for different production jobs and requirements.

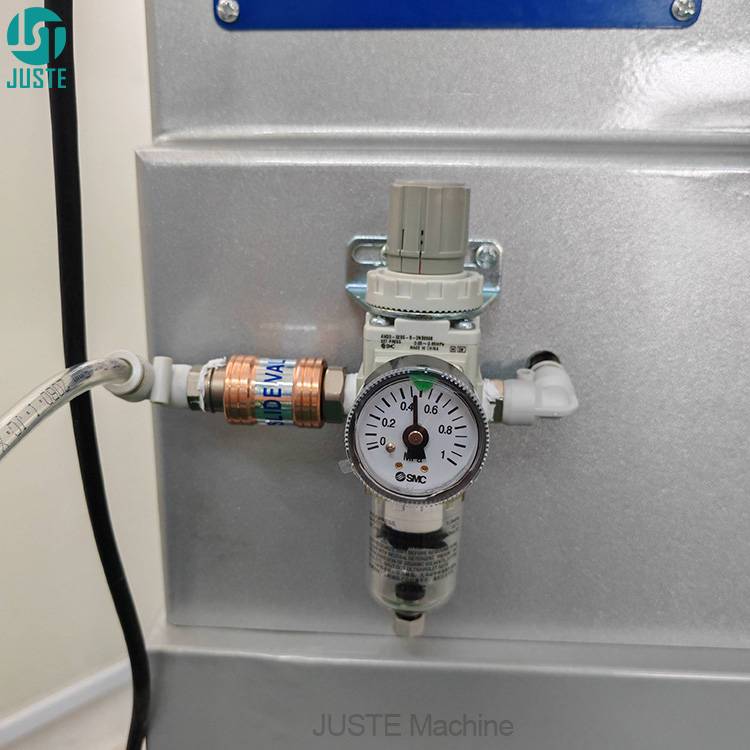

Air Filter Unit For Industrial Pneumatic Equipment
This critical component protects your machine and your print quality. The air filter removes moisture, oil, and particulate contaminants from the compressed air supply before it enters the pneumatic system. This ensures clean and dry air for all cylinder and valve operations, preventing internal damage, reducing maintenance needs, and guaranteeing consistent, reliable performance.
System Protection: Filters out harmful moisture, oil, and dust, significantly extending the lifespan of pneumatic components.
Consistent Performance: Ensures a stable and clean air supply for reliable operation of all pneumatic functions cycle after cycle.
Maintenance Reduction: Prevents contaminants from causing jams or failures, thereby lowering long-term maintenance costs and downtime.
Juste Print Machine Application Area
The JST-P4-SC175 pad printing machine is engineered for exceptional versatility across a vast spectrum of materials and industries. Its precision servo system and customizable fixtures make it the go-to solution for applying durable, high-resolution logos, text, and graphics. Whether you are in cosmetic packaging, beverage branding, promotional products, or medical device manufacturing, this machine delivers consistent quality. It excels at printing on challenging geometries like bottle curves, cap tops, and spherical items such as golf balls and toys, making it a single, cost-effective asset for diverse production needs.
By Material:
Plastics: Bottles, caps, syringes, toys, keyboards, LED bulbs, phone cases, containers.
Metals: Lighter bodies, tools, pen barrels, promotional items.
Glass: Perfume bottles, cosmetic jars, glass bottles, drinkware.
Ceramics: Ceramic plates, mugs, tiles, bowls.
By Industry:
Cosmetics & Personal Care: Printing on lipstick tubes, perfume bottle caps, body lotions plastic bottles, and compact cases.
Beverage Packaging: Branding bottle caps, aluminum cans, and promotional drinkware.
Pharmaceutical & Medical: Marking syringe barrels, medical tubes, catheters, and equipment housings.
Promotional Products & Gifts: Decorating pens, keychains, poker chips, USB drives, and golf balls.
Electronics: Applying logos on keyboard keys, remote buttons, LED bulbs, and vape pens.
Machines Packaging
Printing Machine With tri-ply wooden case packing, the wood pallet material as fumigation wooden.
It is strong fix wooden case for sea shipment.
Printing Machines will be well packed in tri-ply wooden box then load to container and shipped
by sea/by air, as your requested.
Shipping Term
Shipping Time
Sample delivery time: 5-15 days by DHL/UPS/TNT/FEDEX express, Sea shipping
Bulk Order Shipping time: 5-15 Workdays by Express / 15-30 days by sea
Company Information
Shenzhen Juste Machine Co., Ltd.
As a leading manufacturer and supplier from China, Shenzhen Juste Machine Co., Ltd. has been at the forefront of printing machinery innovation since 2002. Our core expertise lies in developing reliable and efficient pad printing machine and screen printing machine solutions for a global clientele.
We specialize in providing custom solutions, including OEM services, to meet your unique production challenges. Whether you need a standard semi-automatic machine or a fully customized pad printer for specific applications like golf ball or medical tube printing, we have the engineering prowess to deliver.
Our machines are trusted worldwide in industries such as beverage packaging, cosmetic containers, and promotional products. We are committed to your success, offering comprehensive technical support, a 1-year warranty, and factory-direct prices to ensure you receive the best possible return on investment. When you partner with us, you choose quality, reliability, and a team dedicated to your productivity.
How To Order
How To Place customize Pad Printing Machine With Servo Shuttle order?
Step 1: Initial Inquiry
Contact us via email, WhatsApp, or other platforms to discuss your project. Tell us about the products you print (e.g., bottles, toys, cosmetic containers) and your output goals.
Step 2: Requirement Specification
Provide details on your desired machine model, printing colors, speed, and any specific customization needs for jigs or silicone pads.
Step 3: Price Estimation & Quotation
Our engineers will review your needs and provide a detailed, transparent price estimate for your custom pad printer.
Step 4: Proforma Invoice (PI)
Upon your approval, we will issue a PI outlining all costs, terms, and delivery details.
Step 5: Payment Confirmation
Confirm the PI and proceed with payment to officially place your order.
Step 6: Production Initiation
We immediately begin sourcing materials and assembling your machine.
Step 7: Quality Assurance Inspection
Our dedicated QA team performs rigorous functional tests and provides a video inspection report for your peace of mind.
Step 8: Pre-Shipment Documentation
We send all necessary manuals, documentation, and the inspection video.
Step 9: Shipping Arrangements
We professionally pack and arrange secure shipping from Shenzhen, China.
Step 10: Delivery & Support
Your machine arrives within 10-30 working days. Our technical support team is ready to assist with setup and operation.
Ready to boost your production? Contact us today for a free consultation and quote!
FAQ
Q1: Are you a direct manufacturer or a trading company?
A: We are a professional manufacturer and factory located in Dongguan, China. We have our own R&D, production, and quality control teams, allowing us to control costs and ensure quality, offering you the best factory-direct price.
Q2: Can I customize the machine with my logo and specific fixtures?
A: Absolutely. We fully support OEM and customized services. We can print your brand logo on the machine and design custom jigs/moulds and silicone pads specifically for your product, whether it’s a golf ball, syringe, or plastic bottle.
Q3: What is the warranty for this pad printing machine?
A: We offer a comprehensive 1-year warranty on all our machines, covering manufacturing defects. We also provide lifelong technical support and supply of spare parts to ensure your long-term, cost-effective operation.
Q4: How do you ensure the machine quality before shipment?
A: Every machine undergoes a strict final inspection by our QA department. We conduct a full run-through and provide a video outgoing-inspection report so you can see the machine functioning perfectly before it leaves our factory.
Q5: What is the nearest shipping port?
A: We ship globally from our nearest port in Shenzhen, China, ensuring efficient and reliable logistics for our international clients.
All machines must be passed by our QA inspection department before shipping.
