600mm UV 건조기
Welcome to the next level of post-press finishing efficiency with the JUSTE JST-UV60250C,
a premier UV 경화기 engineered for unparalleled performance in container decoration.
이 견고한 UV tunnel dryer is designed to seamlessly integrate into your production line, delivering instant
curing for inks on a wide range of materials. As a vital piece of 포스트프레스 장비, it eliminates production
bottlenecks by transforming liquid UV inks into durable, high-gloss finishes in a fraction of a second.
The machine features a sturdy stainless steel belt and 11 versatile fixture stations, ensuring consistent
throughput for your bottles, cups, and other containers. With a focused 365nm wavelength and adjustable
conveyor speed, this UV curing machine offers precise control for optimal curing results across different
applications. Investing in this UV dryer for screen printing means achieving higher production speeds,
significantly lowering operational costs, and enhancing your final product quality. It is the definitive
UV 경화 터널 solution for businesses in the beverage packaging and cosmetic industry seeking reliable,
high-speed finishing.
생산 효율성 및 ROI 극대화: Achieve instant curing at line speeds of 0-12 m/min, dramatically
increasing your output and providing a rapid return on investment. This UV dryer machine is a cornerstone
for high-efficiency production lines.
Ensure Consistent, High-Quality Curing: The 3KW UV light system and uniform rotation of fixtures within
the UV curing tunnel guarantee that every item receives even exposure, resulting in scratch-resistant,
professionally finished products.
귀사 제품에 비교할 수 없는 다재다능함을 제공합니다.: Designed specifically for open-container printing, this machine
is the ideal UV dryer for bottles, cups, and various plastic and metal containers, making it a versatile asset
for your screen printing operations.
Simplify Operation & Save Labor: The user-friendly control panel with speed control makes
operation intuitive. The automated process from feeding to ejection minimizes manual intervention,
saving valuable labor costs.
Robust & Reliable Construction: Built with a durable stainless steel belt and a solid frame, this UV 경화
machine is designed for continuous industrial use, ensuring long-term durability and stable performance.
제품 설명
| 상표 | 저스트 |
| 모델 | JST-UV60250C |
| 전압 공급 | 단상 220V |
| 힘 | 6.2KW |
| UV 조명 파워 | 3KW/2 UV 조명 |
| 고정 스테이션 | 11 지그 |
| 공급 길이 | 1-400mm(조정 가능) |
| 벨트 소재 | 스테인레스 스틸 벨트 |
| 벨트 폭 | 600mm |
| 방출파장 | 365.7nm |
| 컨베이어 속도 | 0-12m/min, 전자 속도 제어 |
| 배기팬 | 150W, 1개 |
| 순중량 | 256kg |
| 치수 | 2210×880×1810mm(길이×너비×높이) |
UV 경화기용 제어판
Take full command of the curing process with our centralized, intuitive control panel. It allows you to
precisely adjust the conveyor speed from 0 to 12 meters per minute and monitor the system’s status at a glance.
This interface puts complete control over this semi automatic UV curing machine at your fingertips, ensuring easy
setup and repeatable results for every production batch.
Precise Electronic Speed Control: Easily fine-tune the belt speed to match your production line’s requirements,
ensuring perfect curing for different ink types and container sizes.
사용자 친화적인 인터페이스: The clearly labeled controls and displays make operation straightforward,
reducing training time and minimizing potential for operator error.
Centralized System Management: Monitor and control key functions from a single station, streamlining
the workflow of your UV tunnel dryer and enhancing operational safety.
Stainless Steel Conveyor Belt System for UV Drying Tunnel
The heart of the machine’s transport system, this stainless steel belt, is built for longevity and consistent
performance. Its 600mm width provides ample space for various container sizes, ensuring smooth and
stable transit through the UV drying tunnel. The belt’s material resists corrosion and wear, guaranteeing
a long service life even in demanding production environments.
Durable & Corrosion-Resistant: The high-quality stainless steel construction ensures the belt can withstand
harsh conditions and frequent cleaning, maintaining hygiene and performance.
Stable Product Transportation: Provides a solid, unwavering base for the fixtures, preventing container
wobbling or tipping and ensuring consistent exposure to UV light.
Low-Maintenance Design: The robust design and material choice minimize downtime for maintenance,
contributing to higher overall equipment effectiveness (OEE).

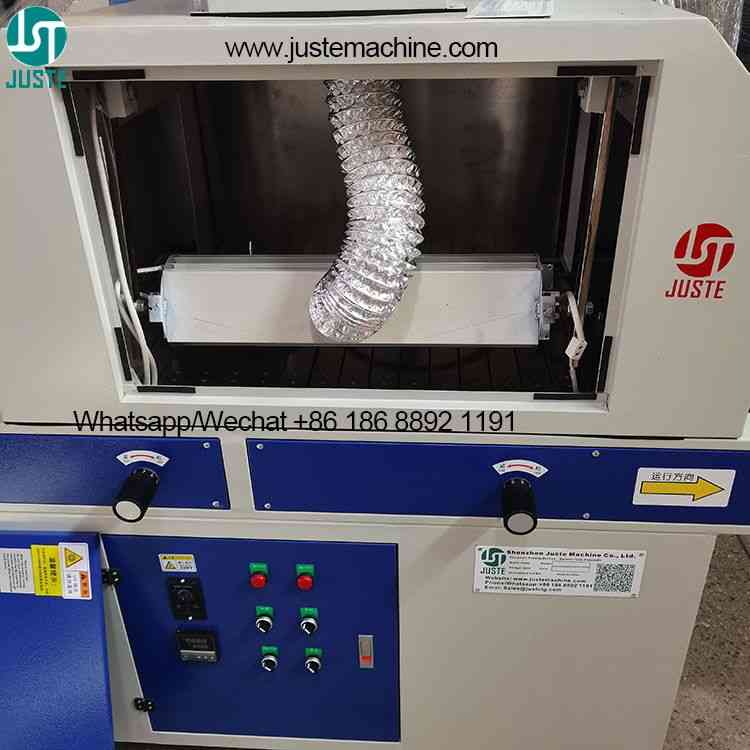

Adjustable UV Lamps for UV Curing Machine
Equipped with two powerful 3KW UV lamps emitting a precise 365.7nm wavelength, this assembly is the
core of the curing process. A critical feature is the lamps’ adjustable height and angle, allowing you to
fine-tune the intensity and focus of the UV light for different container shapes and sizes, guaranteeing
complete and efficient curing.
Optimized Curing Intensity: The adjustable UV lamps allow you to position the light source for the most
effective energy delivery, ensuring deep cure and excellent adhesion.
Powerful 3KW Illumination: Two high-power lamps provide intense UV light for reliable instant curing
of even the most challenging UV inks and coatings.
Flexible for Various Applications: The ability to adjust both height and angle makes this system
exceptionally versatile, adapting to your specific product line without requiring tooling changes.

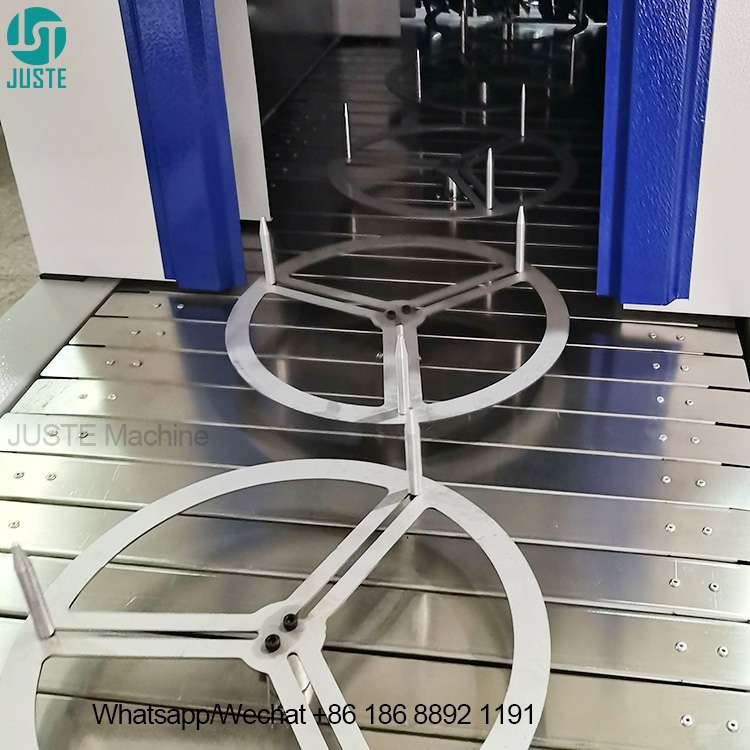

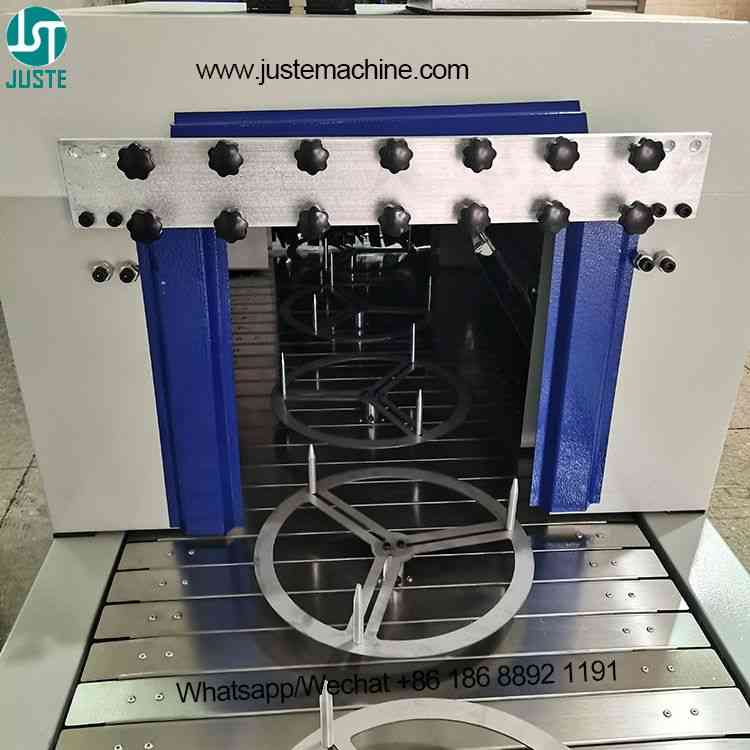

Rotating Fixture Jigs for Semi-Automatic UV Dryer
These 11 rotating fixture stations are engineered to hold your containers securely and rotate them as they
pass through the UV 경화 터널. This rotation is crucial for exposing the entire printed surface to the
UV light evenly, eliminating shadows and ensuring a uniform, high-quality cure on cylindrical or
complex-shaped objects.
Ensures Uniform Curing: The continuous rotation of the jig presents all sides of the container to the UV light,
preventing under-cured areas and ensuring a perfect finish.
안전한 제품 보관: Customizable jigs securely grip a wide range of container sizes and shapes,
from slim bottles to wide cups, preventing movement during transit.
Supports Customization: We offer standard, adjustable, or fully customized fixtures to meet your unique
product needs, enhancing the machine’s application scope.
Exhaust Fan for UV Curing System
An integral 150W exhaust fan is installed to maintain optimal operating conditions inside the UV curing
machine. It effectively vents excess heat and any potential ozone generated by the UV lamps, cooling the
lamp housings to extend their lifespan and ensuring a safer, more comfortable workshop environment.
Effective Heat Management: The exhaust fan continuously removes heat from the curing chamber,
protecting both the UV lamps and your sensitive products from overheating.
Ozone Extraction: Helps in dissipating ozone, ensuring compliance with workshop air quality standards
and contributing to a safer working environment.
Extends UV Lamp Life: By maintaining a cooler operating temperature, the fan directly contributes to the
longevity and consistent performance of the UV lamps.
Adjustable Infeed Height and Width
This versatile infeed mechanism features adjustable height and width, allowing for quick and easy
accommodation of different container dimensions. This flexibility ensures smooth product loading and
maximizes the machine’s utility across diverse production runs, from small cosmetic tubes to large
promotional cups.
빠른 전환: The easily adjustable infeed guides minimize setup time between production runs,
enhancing your operational flexibility and responsiveness.
다양한 크기를 수용합니다: Can be configured to handle a wide range of container heights and diameters,
making this a highly versatile Post-Printing Equipment.
Ensures Smooth Feeding: Properly set guides ensure containers transition smoothly from the upstream
machine onto the curing line’s fixtures, preventing jams.
Juste Machines Application Scenarios & Industry Solutions
The JUSTE JST-UV60250C UV 경화기 is the ultimate Finishing Equipment solution for
businesses that decorate open-top containers. It masterfully handles the instant curing of UV inks 그리고
coatings on a vast array of materials and products, making it an indispensable asset for modern printing facilities.
Its core value lies in its ability to deliver high-quality, durable finishes at production-line speeds, significantly
boosting efficiency for industries ranging from beverage packaging to promotional products.
By integrating this reliable UV tunnel dryer, you equip your production line to meet diverse market
demands with a single, cost-effective machine.
재질별 적용 분야:
Plastic Containers: Perfect for PP, PET, and other plastic bottles, cups (including plastic cup, PP cup,
PET cup), tubes, and jars.
Paper & Board: Effectively cures inks on paper cups, cardboard containers, and other paper-based
products without causing damage from excessive heat.
Metal Substrates: Delivers excellent adhesion and cure on metal cans, paint buckets, iron drums,
and aluminum containers.
유리 및 세라믹: Suitable for curing decorative prints on glass jars and ceramic cups.
산업별 적용 분야:
음료 포장: The ideal uv bottle conveyor dryer for decorating plastic bottles, milk tea cups,
coffee cups, and soda cans.
화장품 및 개인 위생용품: Ensures a high-end, durable finish on cosmetic tubes, cream jars,
and perfume bottles.
Food Container Printing: Safely and efficiently cures prints on paper cups, yogurt pots,
and other food-safe containers.
프로모션 제품 및 선물: Perfect for producing customized promotional products like
branded cups, flower pots, and tins.
Industrial Packaging: Handles the curing needs for paint buckets, chemical drums, and other
industrial containers.
기계 포장
3겹 나무상자로 포장한 기계, 나무 팔레트 소재를 훈증용 나무로 사용.
해상 운송에 적합한 견고한 나무 케이스입니다.
기계는 3겹 나무 상자에 잘 포장된 후 컨테이너에 적재되어 배송됩니다.
귀하의 요청에 따라 바다/공기로 운송해드립니다.
배송 기간
배송 시간
샘플 배송 시간: DHL/UPS/TNT/FEDEX 익스프레스, 해상 운송으로 5-15일
대량 주문 배송 기간: 익스프레스 배송 시 5-15 영업일 / 해상 배송 시 15-30일.
회사 정보
As a leading manufacturer and supplier of printing machinery established in 2002, Shenzhen Juste is your
trusted partner for advanced Post-Press Equipment. We specialize in developing automated solutions that
solve your real-world production challenges. Our core expertise lies in 스크린 인쇄기,
패드 인쇄기, and of course, high-performance UV curing machines like the JST-UV60250C.
You can rely on us not just as a factory, but as an innovation partner. We understand that your needs are
unique, which is why we strongly support OEM and customized solutions. Whether you need a standard
UV tunnel dryer or a tailored system for specific plastic cups or cosmetic containers, our engineering team
has the experience to deliver. Our machines are engineered for precision, efficiency, and durability,
helping businesses worldwide enhance their productivity and profitability.
We are committed to your success beyond the sale. We provide comprehensive technical support and
a solid 1-year warranty, ensuring your investment is protected and your operations run smoothly.
주문 방법
UV 경화 램프 장비를 주문하는 방법은 무엇입니까?
1단계: Initial Inquiry & Requirement Specification
Contact us via email, WhatsApp, or other channels. Provide details about your production needs:
the products you print (e.g., bottles, cups), desired throughput, and any special requirements.
2단계: Quotation & Proforma Invoice (PI)
Our engineers will review your specs and provide a detailed price estimate. Upon your approval,
we will issue a PI with all terms and costs clearly outlined.
3단계: Payment & Production Initiation
Confirm the PI and proceed with payment. We will then secure materials and begin assembling
your UV curing machine.
4단계: Quality Assurance & Pre-Shipment
Our QA team performs rigorous inspections and provides a video report and manuals.
This ensures the machine meets our high quality control standards before it leaves our factory.
5단계: Shipping & Delivery
We arrange secure shipping from Shenzhen, China. You can expect delivery within 10-30
working days, depending on your location.
자주 묻는 질문
1분기: 직접 제조업체를 운영하시나요, 아니면 무역회사를 운영하시나요?
A: We are a professional and experienced screen printing machine manufacturer and factory based in
Dongguan, China. We control the entire production process, from engineering to assembly, ensuring
high-quality and cost-effective pricing.
2분기해당 기계를 당사의 특정 제품에 맞게 맞춤 제작할 수 있습니까?
A: Absolutely. We specialize in providing customized solutions. We can adjust fixtures, conveyor width,
and other parameters to ensure the UV curing machine perfectly handles your specific bottles, cups,
or other containers. We also support OEM services.
3분기기계의 보증 기간은 어떻게 되나요?
A: We offer a comprehensive 1-year warranty on the JST-UV60250C UV curing machine, covering
manufacturing defects. This guarantee ensures you receive a reliable and durable piece of Post-Press Equipment.
4분기: How do you ensure the quality of your machines before shipment?
A: Our quality control process is rigorous. Every machine undergoes pre-shipment testing and inspection
by a dedicated QA team. We provide video inspection reports to give you confidence in your investment’s
performance and reliability.
Q5: 가장 가까운 선적항은 어디인가요?
A: We ship globally from our nearest port in Shenzhen, China, ensuring efficient and reliable logistics
for all our international clients.
Q6: How does the UV curing process benefit my production compared to traditional drying?
A: Our UV curing machine offers instant curing (in less than a second), which dramatically increases your
production speed. It is more energy-saving as it doesn’t heat large volumes of air, and it produces a harder,
more durable finish, especially on non-absorbent materials like plastic and metal.
모든 기계는 배송 전에 품질보증 검사 부서의 검사를 통과해야 합니다.
