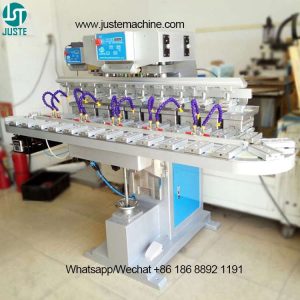

10 Farbpaddrucker Tintenbehälter Tampondruckmaschine mit Förderband

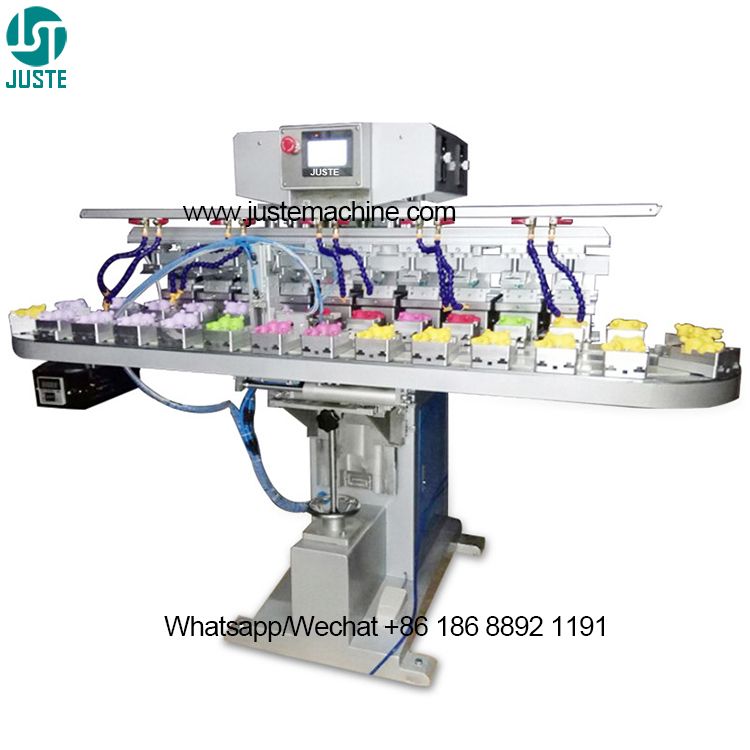

10-Color Automatic Rotary Pad Printing Machine for High-Mix Production
Our JST-10C100-175C represents the pinnacle of efficiency for complex, mehrfarbig decoration. This automatic Rotations-Tampondruckmaschine is engineered to streamline your production of promotional products, cosmetic containers, and electronic components. Featuring a robust 10-color ink tray pad printing machine system integrated with a continuous conveyor, it eliminates manual handling between colors and curing.
The large, 28-station rotary table ensures non-stop operation, dramatically boosting your output and return on investment. Designed for versatility, it handles diverse substrates from plastic and metal to glass with Präzision, making it the ultimate multi-color pad printing machine solution for demanding pad printing applications. Its automatic cycle, from ink application via ink blade to final transfer by the silicone pad, guarantees consistent, hohe Qualität results shift after shift.
Maximierung der Produktionseffizienz und des Outputs: Achieve speeds up to 2500 prints per hour with the seamless automatic 10-color process and continuous conveyor system. The 28-station rotary table allows for simultaneous loading, printing, and unloading, drastically increasing your pad printing machine throughput.
Signifikante Reduzierung der Arbeitskosten: Eliminate the need for multiple operators or machines. One operator can manage the entire automatic process—from placing parts on custom jigs to collecting finished products—freeing up manpower for other critical tasks.
Superior ROI Through Versatility & Uptime: This is not just a watch dial pad printing machine or a bottle cap pad printing machine; it’s a universal solution. Quick-change jigs and cliche plates allow for fast job changeovers, minimizing downtime and maximizing machine utilization across different product lines.
Uncompromised Simplicity & Consistency: With centralized pneumatic control and an intuitive interface, setup and operation are straightforward. The precision-engineered silicone pad and ink tray system ensure flawless ink pickup and transfer, delivering consistent print quality even for intricate logos on challenging surfaces like eyewear or toys.
Produktbeschreibung
| Marke | JUST |
| Modell | JST-10C100-150C |
| Maschinentyp | 10-Farben-Tintenschale oder Tintenbecher |
| Funktion | Mit Förderband |
| Druckfarbe | 10 Farbe / anpassen |
| Vorrichtung/Form Menge | 18 / anpassen |
| Maximale Plattengröße | 100 x 250 x 10 mm |
| Maximale Druckgröße | 70*125MM / anpassen |
| Druckgeschwindigkeit/Std. | 500-2500 |
| Funktionsweise | Auto |
| Maschinengröße | 2000*1200*1550MM |
| Tampondruckgewicht | 460 kg |
| Luftdruck (bar) | 5 |
| Leistung | 20-50W |
| Leistung | 220 V/50 Hz – 110 V/60 Hz |

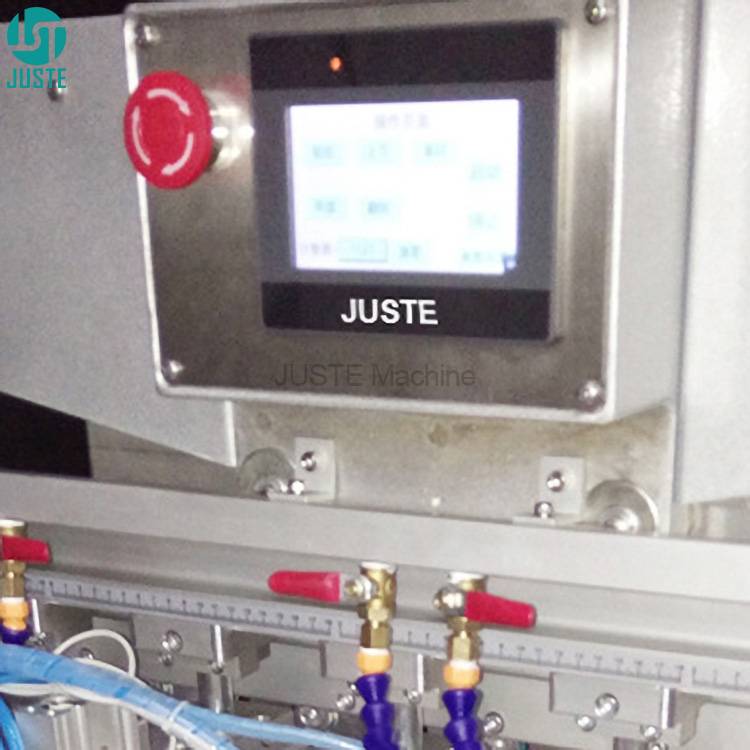

Control Panel for Automatic Pad Printing Machine
Der benutzerfreundlich control panel is the command center of this automatische Tampondruckmaschine. It features a digital counter to track production in real-time, along with intuitive buttons for cycle start, stop, and emergency halt. Operators can easily set parameters and monitor the status of the pneumatic system, ensuring glatt and managed operation.
Produktionsüberwachung: The integrated digital counter provides accurate production efficiency data for output tracking and planning.
Vereinfachter Betrieb: Clearly labeled controls make it easy to operate, reducing training time and potential for error.
Zentrale Steuerung: Allows for quick start-up, shutdown, and troubleshooting of the automatic printing cycle from a single station.
Custom Laser Engraved Cliche Plate for Pad Printer
At the heart of the print quality is the cliche plate, a Präzision Stahlplatte lasergraviert with your specific logo or artwork. We provide customized plates tailored to each customer’s design, ensuring sharp, accurate ink hold in the etched cavities for perfect transfer onto the silicone pad.
Präzisionsgravur: Made from high-grade steel and laser-etched for exceptional detail and longevity, crucial for fine text on items like watch dials or medical parts.
Anpassbares Design: Each plate is made customized to your artwork, supporting complex graphics and multiple colors.
Durable & Replaceable: These durable plates are wear-resistant and can be easily swapped for different jobs, enhancing the machine’s versatile application.
Silicone Pad for Printing on Irregular Surfaces
The silicone pad is the key component that transfers ink from the cliche plate to your product. Made from hohe Qualität, oil-resistant silicone, it conforms perfekt to curved, textured, or uneven surfaces—such as golf balls, cosmetic tubes, or electronic casings—ensuring a complete and uniform print.
Superior Conformability: Its flexible nature allows for perfect printing on irregular surfaces, a core advantage of pad printing technology.
Material Variety: Available in different shapes and shore hardness levels to match specific product contours and ink requirements.
Konstante Leistung: High-quality silicone ensures excellent ink release and long service life, maintaining print accuracy.

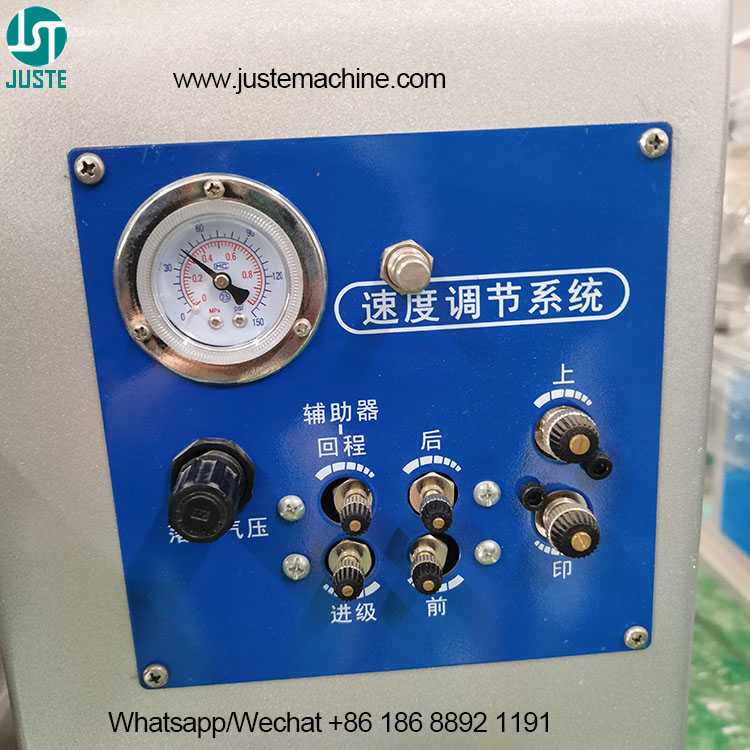

Pneumatic Control Buttons on 10 Color Pad Printing Machine
This bank of pneumatic control buttons allows for individual adjustment of air pressure for critical components like the ink blade, silicone pad, and rotary table indexer. Fine-tuning these pressures is essential for optimizing ink transfer and ensuring gentle yet precise handling of delicate products like eyeglasses oder plastic parts.
Präzisionseinstellung: Enables micro-adjustment of the pneumatic system for different jig weights, ink types, and pad durometers.
Optimized Performance: Ensures the right force is applied at each stage—scraping, picking, and printing—for flawless results and reduced waste.
Modular Control: Each valve controls a specific function, simplifying maintenance and troubleshooting of the automatic system.
Air Filter Regulator for Pneumatic Printing Machine
This crucial component cleans and regulates the compressed air supplied to the entire machine’s pneumatic system. It removes moisture and particulates, providing clean, dry, and stable air pressure (5 bar required). This protects sensitive pneumatic cylinders and valves, guaranteeing consistent and zuverlässig machine movement.
Systemschutz: Filters contaminants to prevent damage to pneumatic components, extending machine life and reducing downtime.
Pressure Stability: Maintains a constant operating pressure, which is vital for consistent printing pressure and print registration accuracy in multi-color jobs.
Essential for Consistency: A simple but vital part that underpins the stable performance of the automatic cycle.
28 Station Rotary Indexing Table for 10 Color Ink Tray Pad Printing Machine
The core of this carousel pad printing machine is its precision rotary indexing table. The standard configuration features 28 stations, each capable of holding a custom jig or mould. It rotates automatically with each cycle, presenting parts sequentially to each of the 10 printing heads and finally to the unload position, creating a true automatic production cell.
High-Capacity Production: The 28-station design allows for large batch processing, significantly boosting production efficiency.
Präzisionsindexierung: Ensures accurate alignment (registration) for perfect multi-color pad printing.
Customizable Fixturing: Jigs are customized to your product, securely holding items from small bottle caps to larger panels during the printing process.

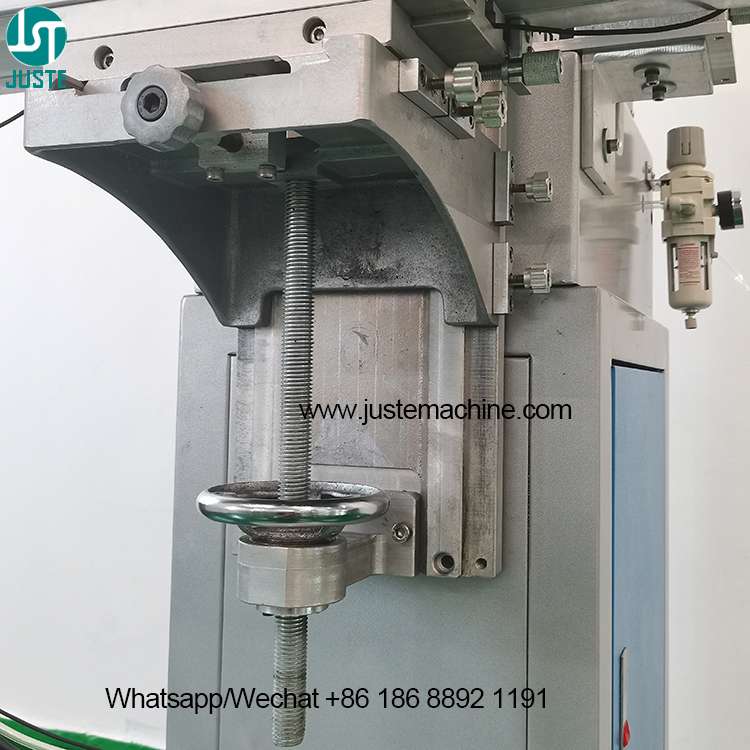

Manual Height Adjustment Screw for 10 Color Pad Printer
This manual height adjustment mechanism allows the operator to easily raise or lower the entire rotary table assembly. This is critical during setup to achieve the perfekt “pick” and “print” heights for the silicone pads, especially when switching between products of different thicknesses or using new jigs.
Easy Setup & Changeover: Simplifies the initial machine setup and accelerates job changeovers, contributing to reduced downtime.
Präzisionsausrichtung: Enables fine-tuning to ensure optimal contact between the silicone pad and both the cliche plate and the product.
Ergonomisches Design: The hand wheel allows for smooth adjustment without the need for tools.
Foot Pedal Switch for 10 Color Ink Tray Pad Pirnting Machine
The foot pedal provides flexible control over the machine cycle. In halbautomatisch mode or during setup and testing, the operator can use the pedal to trigger a single print cycle Freisprechfunktion. This enhances safety and convenience, allowing the operator to position parts securely before initiating the transfer.
Freihändiger Betrieb: Increases safety and control during setup, testing, or low-volume runs.
Flexible Control: Complements the automatic mode, giving operators direct command for precision work or sample production.
Robuste Konstruktion: Built to withstand industrial floor use.

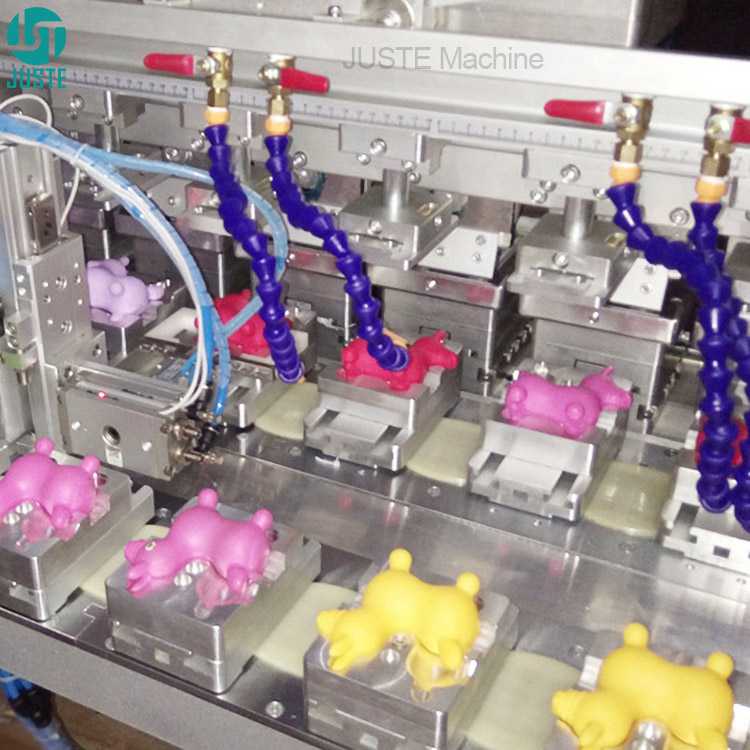

Custom Product Jigs and Fixtures for 10 Color Semi Automatic Pad Printing Machine
These are the customized holders that securely and genau position your specific product during printing. Made from materials like aluminum or plastic, they are engineered to match the exact contour of your item—whether it’s a plastic bottle, toy, keycap, or lighter—ensuring it does not move and that every print is in the correct location.
Produktspezifisches Design: Each jig is customized for your product, guaranteeing perfect placement and print accuracy every time.
Quick-Change System: Designed for easy installation and removal from the rotary table, enabling quick changeover between different production jobs.
Sichere Aufbewahrung: Prevents product movement during the pad strike, which is critical for clean multi-color registration.
Ink Blade for Cleaning Cliche Plate Semi Auto Pad Printing Machine
The ink blade is a critical component in the ink tray system. After the ink tray floods the cliche plate, this sharp, Präzision blade sweeps across the plate’s surface, removing all excess ink and leaving ink only in the etched cavities of the artwork. This action defines the sharpness and cleanliness of the final print.
Defines Print Quality: Its precision scraping action is responsible for clean, sharp image definition on the final product.
Durable & Adjustable: Made from high-quality steel, it maintains its edge. Its angle and pressure are adjustable via the pneumatic control.
Ensures Efficiency: By cleanly removing excess ink, it prevents smudging and ensures efficient ink usage.
Open Ink Tray for Multi Color Pad Printer
This is the open ink tray or ink well that holds the printing ink. Each of the 10 colors on the JST-10C100-175C has its own ink tray. The tray floods the cliche plate, and then the ink blade acts. This open system allows for easy color mixing, ink viscosity adjustment, and cleaning, which is ideal for frequent color changes or special ink types.
Easy Maintenance & Color Change: The open design allows for quick cleaning and ink changes, facilitating versatile application across different jobs.
Ideal for Special Inks: Suitable for a wide range of ink types, including heavily pigmented or metallic inks used in cosmetic or promotional product printing.
Cost-Effective Operation: Simple design and easy access contribute to low maintenance and operational efficiency.
Ink Retrun Blade for 10 Color Pad Printing Machine
Also known as the ink retrun blade or flood bar, this component is attached to the ink tray. Its function is to evenly flood the cliche plate with a thin layer of ink before the doctor blade scrapes it clean. This ensures the etched image cavities are vollständig filled for the silicone pad to pick up.
Ensures Consistent Ink Coverage: Provides a uniform layer of ink to the cliche plate, which is foundational for consistent color density in the final print.
Integriertes Design: Works in tandem with the ink tray and doctor blade as part of a reliable inking system.
Simple & Effective: A robust component that ensures reliable performance with minimal attention.
Tool Kit and Accessories for Pad Printing Machine
We provide a comprehensive accessory kit with every machine. This includes essential tools like hex key wrenches for adjustments and maintenance, a Stromkabel, Und necessary screws. Having these tools on hand from day one ensures you can perform basic setup, adjustments, and quick changeover tasks without delay.
Ready for Operation: Includes all basic tools needed for initial assembly and routine maintenance, supporting easy operation.
Minimiert Ausfallzeiten: Allows your team to make immediate minor adjustments or jig changes, reducing downtime.
Added Value: Demonstrates our commitment as a supplier to providing a complete, ready-to-use solution.
Anwendungsbereich der Juste-Druckmaschine
The JST-10C100-175C automatische Tampondruckmaschine is your universal solution for decorating a vast array of products across multiple industries. Its core strength lies in transferring complex, multi-color logos and graphics onto irregular surfaces with precision and speed.
Whether you are in beverage packaging, the cosmetic industry, manufacturing promotional products, or producing electronic components, this machine delivers consistent, hohe Qualität decoration that enhances brand value. By handling diverse materials and shapes on a single, cost-effective platform, it consolidates production, reduces the need for multiple specialized machines, and dramatically improves your return on investment.
Nach Material:
Plastik: Bottle caps, cosmetic containers, toys, keyboards, safety helmets, syringes, promotional pens, vape casings, golf balls, hockey pucks, automotive parts.
Metall: Lighter bodies, watch dials, pen clips, tools, industrial components, aluminium tags.
Glas: Perfume bottles, cosmetic jars, beverage bottles, drinking glasses, Christmas balls, LED bulbs.
Others: Ceramic mugs and tiles, wooden rulers, silicone wristbands.
Nach Branchen:
Getränke- und Lebensmittelverpackungen: Printing on plastic bottles, caps, glass jars, cans, and food containers.
Kosmetik & Körperpflege: Decoration of lipstick tubes, cream jars, compact cases, eyewear frames, sungalsses, and perfume bottles.
Werbeartikel & Geschenke: Printing logos on pens, keychains, USB drives, poker chips, mouse pads, drinkware, and tokens.
Electronics & Hardware: Marking keycaps, remote controls, electronic casings, switch panels, circuit boards, and tools.
Toys & Sports Goods: Decorating game pieces, toy cars, sports balls, skateboard wheels, and protective gear.
Maschinen Verpackung
Druckmaschine mit dreilagiger Holzkistenverpackung, das Holzpalettenmaterial besteht aus Begasungsholz.
Es handelt sich um eine stabile Holzkiste für den Seetransport.
Druckmaschinen werden gut verpackt in dreilagigen Holzkisten verpackt, dann in Container geladen und versandt
auf dem See-/Luftweg, ganz nach Ihren Wünschen.
Versanddauer
Lieferzeit
Beispiellieferzeit: 5-15 Tage per DHL/UPS/TNT/FEDEX Express, Seefracht
Lieferzeit für Großbestellungen: 5-15 Werktage per Express / 15-30 Tage auf dem Seeweg
Informationen zum Unternehmen
Shenzhen Juste Machine Co, Ltd.
Bei Shenzhen Juste Machine Co., Ltd. sind wir mehr als nur ein Hersteller von Tampondruckmaschinen; we are your partner in boosting production efficiency. Established in 2002, we have focused on delivering zuverlässig automatic printing solutions for businesses worldwide.
Als Direkt vom Hersteller and leading supplier, we specialize in customized machinery. Whether you need a hohe Geschwindigkeit automatic pad printing machine for plastic bottle caps or a versatile system for cosmetic industry packaging, our engineering team develops custom solutions to match your exact specifications, including OEM support for your brand.
We understand your need for durable equipment that offers a strong return on investment. That’s why every JST machine is built for stable performance and backed by a 1 Jahr Garantie and comprehensive technical support. From promotional products to medical device marking, we provide the machines and expertise to help your business print with confidence and grow.
Screen printer, pad printer, UV-Trockner, Nachdruck Und Druckvorstufe Ausrüstung nach Wahl.
So bestellen Sie
Wie kann ich eine individuelle Bestellung für 10-Farb-Tampondrucker aufgeben?
Phase 1: Beratung & Angebotserstellung
Erstkontakt: Reach out via email, WhatsApp, or our website to discuss your project (e.g., printing on toys, bottle caps, or electronic parts).
Specify Requirements: Detail your needs: desired colors (up to 10), printing speed, product dimensions, and material (e.g., plastic, glass, metal).
Receive Proposal: Our engineers will analyze your needs and provide a detailed cost-effective quotation and machine configuration.
Phase 2: Auftragsbestätigung & Produktion
Proforma-Rechnung (PI): Upon your approval, we issue a PI with clear terms.
Secure Payment: Confirm the order with a deposit to initiate production.
Kundenspezifische Fertigung: We begin building your machine, including customized jigs and cliche plates.
Phase 3: Qualitätssicherung & Lieferung
Rigorous Inspection: Our QA team performs thorough testing and provides a video report.
Pre-Shipment Prep: We compile manuals, documentation, and your accessory kit.
Weltweiter VersandWir organisieren einen sicheren Versand vom Hafen Shenzhen.
Lieferung & Support: Expect delivery in 10-30 days, followed by our remote setup guidance.
Ready to upgrade your production? Contact us today for a free, no-obligation quote!
Häufig gestellte Fragen
F1: Are you a direct manufacturer of the JST-10C100-175C pad printing machine?
A: Yes, we are a professional pad printing machine manufacturer and factory based in Shenzhen, China. We design, engineer, and assemble our automatic and rotary pad printing machines in-house, ensuring high-quality control and factory direct pricing.
F2: Can this machine print on curved surfaces like bottles or toys?
A: Absolutely. The silicone pad is designed to conform to irregular surfaces, making it perfect for bottle printing, toy decoration, cosmetic container marking, and golf ball logo application.
F3: Do you provide custom jigs and printing plates?
A: Yes, we offer full customization. We will engineer custom jigs and laser-engraved cliche plates specifically for your product (like watch dials or keycaps) as part of your order to ensure perfect print accuracy.
F4Wie lange ist die Lieferzeit und wie läuft der Versand ab?
A: Standard lead time is 15-20 working days after order confirmation. We ship globally from Shenzhen port, provide all documentation, and support you until the machine is running in your facility.
F5: What warranty and support do you offer?
A: We provide a comprehensive 1-year warranty on the machine. Our support includes detailed manuals, video guides, and responsive remote assistance to ensure easy operation and low maintenance for your team.
F6: Can the machine be upgraded or reconfigured later?
A: Yes. The modular design allows for future adaptations. You can discuss potential needs for different jigs or even adjustments to the printing process with our team at any time.
Alle Maschinen müssen vor dem Versand unsere Qualitätssicherungsabteilung durchlaufen.
