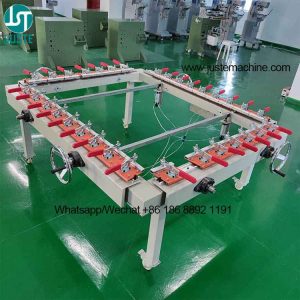

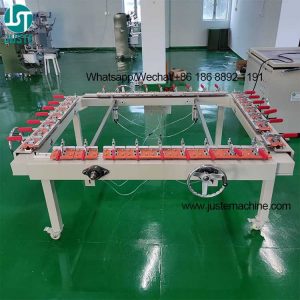

آلة شد الشاشة التي تعمل بالسلسلة
Watch how it works.
See the stretching machine in action — stretching mesh onto the frame.
👇 شاهد الفيديو التوضيحي أدناه.🎬 تم تحميل الفيديو عند النقر — ▶️ اضغط على زر التشغيل للبدء.
وصف المنتجات
| ماركة | عادل |
| نموذج | جيه إس تي-SC1215T |
| Machine Size | 1800*2100*700mm |
| Inner size | 1200*1500*700mm |
| Machine Weight | 210KG |
| Largest Stretchable Frame Size | 1200*1500mm |
| Smallest Stretchable Frame Size | 800*1000mm |
| Maximum tension of stretch mesh | 25N-35N/CM |
| Stretching Drive | يدوي |
| Main Material | Iron |
| Collet | Aluminum Single Head |
| Lifting Method | Air Cylinder |
| Air Pressure | 0.5-0.7Mpa |
Technical Process & Working Principle:
Step 1: Mesh Cutting
Cut the screen mesh into a square that extends beyond all four clamping positions of the screen stretching
machine, ensuring sufficient material for the clamps to grip securely.
Step 2: Frame Placement & Initial Fixing
Place a flat wooden board or rigid panel on the central lifting bar of the screen stretcher machine as a platform,
then position the screen frame evenly on this platform.
Step 3: Even Clamping & Mesh Stretching
Use all clamps to evenly grip the mesh on all four sides, first clamping the top and bottom opposite sides,
then the left and right opposite sides. Place a tension meter on the mesh and gradually stretch using the
manual screen stretching machine, monitoring tension values constantly to prevent over-stretching and
mesh damage until standard tension values are achieved at all measuring points.
Step 4: Lift Bar Activation
Activate the pneumatic lifting bar of the screen print stretcher to steadily raise the screen frame into
contact with the tensioned mesh.
Step 5: Tension Adjustment (Most Critical Step)
Place the tension meter at the four corners and center of the mesh within the frame area, recording readings
from all five points. These readings should be very close, ideally with differences not exceeding 1 N/cm.
Uneven tension causes inconsistent ink passage during printing, resulting in uneven color density and
potential ghosting.
Step 6: Glue Application
Evenly apply screen adhesive to the frame area contacting the mesh using a small brush. Avoid applying
beyond 3cm inside the frame and prevent adhesive droplets from blocking mesh openings in the printing area.
Step 7: Adhesive Curing & Final Steps
Allow natural air drying for 10-15 minutes or use a hair dryer/heating gun for accelerated drying.
Once completely dry and firmly bonded, release all tension from the mechanical screen stretching machine,
open all clamps, trim excess mesh along the frame’s outer edge, and remove the completed screen from the machine.
Cost-Effective Solution: Affordable manual screen stretching machine delivering professional tensioning results.
Precision Tension Control: Achieve consistent 25-35N/cm tension across entire mesh surface.
بناء متين: Iron main structure with aluminum clamps ensures long-term reliability.
عملية سهلة الاستخدام: Simple manual controls with pneumatic assistance for easy handling.
Tension Control Handle for manual screen stretching machine
The precision-engineered Tension Control Handle for manual screen stretching machine allows operators
to make fine adjustments to mesh tension with excellent control. This manually operated mechanism
provides tactile feedback during the stretching process, enabling precise tension management for different
mesh types and sizes. The comfortable grip design reduces operator fatigue during extended stretching
sessions, while the durable construction ensures long-term reliability in busy workshop environments.
Precise Tension Adjustment: Enables fine-tuning of mesh tension for optimal printing results.
Direct Operator Control: Manual operation provides immediate feedback during stretching process.
بناء متين: Robust design withstands repeated use in production environments.
Operator Comfort: Ergonomically designed handle reduces fatigue during adjustment.
Chain Drive System for mechanical screen stretching machine
The reliable Chain Drive System for mechanical screen stretching machine provides smooth and consistent
power transmission during the mesh tensioning process. This robust chain mechanism ensures even
distribution of stretching force across all clamping points, maintaining synchronization between different
sections of the stretching assembly. The industrial-grade chain construction offers excellent durability
while maintaining the cost-effectiveness that makes this screen stretcher machine an outstanding value
proposition for printing businesses.
Consistent Force Distribution: Ensures even tension application across entire mesh surface.
Proven Reliability: Chain drive technology offers long service life with minimal maintenance.
Smooth Operation: Provides controlled, gradual tensioning without sudden movements.
Cost-Effective Design: Delivers reliable performance at an accessible price point.
Air Filtration Unit for manual screen stretcher
The integrated Air Filtration Unit for screen stretching machine ensures clean, dry air supply
to the pneumatic lifting system, protecting sensitive components from contamination and moisture damage.
This essential filtration system maintains consistent pneumatic pressure for reliable lifting bar operation,
contributing to the overall stability and precision of the screen printing frame stretcher. Regular
maintenance of this unit ensures long-term reliability and consistent performance in the screen stretching process.
حماية النظام: Prevents contamination of pneumatic components for extended lifespan.
أداء متناسق: Maintains stable air pressure for reliable lifting operation.
صيانة أقل: Clean air supply minimizes wear on pneumatic components.
ضمان الجودة: Contributes to consistent tensioning results through stable operation.

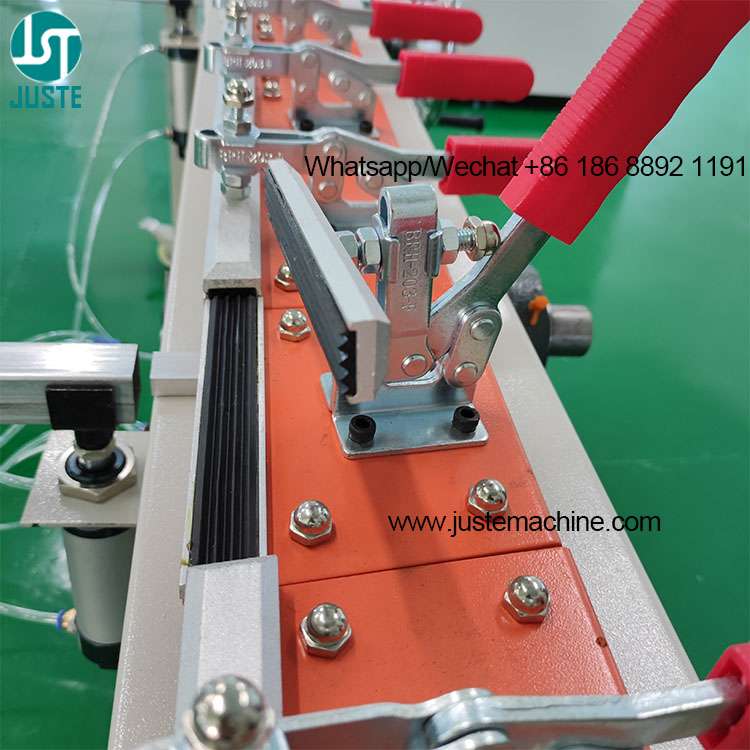

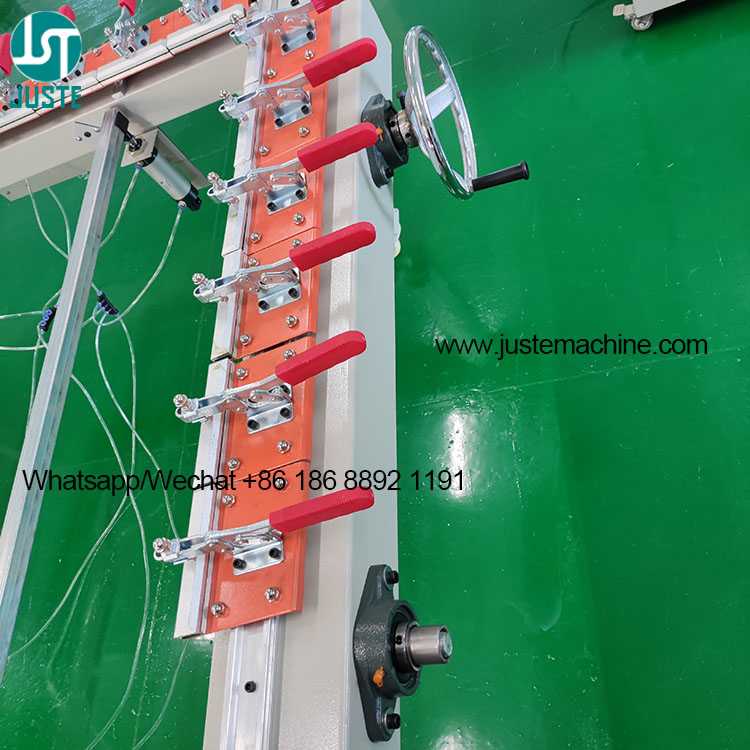

Mesh Clamping Fixtures for screen printing mesh stretcher
The precision-engineered Mesh Clamping Fixtures for screen printing mesh stretcher feature durable
aluminum construction with secure gripping mechanisms that hold mesh firmly during the tensioning
process. These clamps are strategically positioned around the machine perimeter to provide even holding
force across all edges of the mesh material. The design ensures minimal mesh slippage while allowing quick
loading and unloading of mesh materials, making the silkscreen stretching machine efficient for various
screen preparation tasks.
Secure Mesh Retention: Firm gripping action prevents slippage during tensioning.
Quick Operation: Enables fast mesh loading and unloading procedures.
بناء متين: Aluminum build ensures long-term reliability.
توزيع الضغط بالتساوي: Provides consistent holding force across all clamp points.
Pneumatic Lifting Mechanism for stretcher for screen printing machine
The efficient Pneumatic Lifting Mechanism for stretcher for screen printing machine provides smooth,
controlled elevation of the screen frame into the tensioned mesh. Operating at 0.5-0.7Mpa air pressure,
this pneumatic system offers consistent lifting force that ensures even contact between the frame and mesh
during the adhesive application stage. The reliable air cylinder operation minimizes manual effort while
maintaining precision in the screen mounting process, making this manual screen frame stretching
machine for frame both efficient and operator-friendly.
Controlled Lifting Action: Provides smooth, gradual frame elevation.
Reduced Operator Effort: Pneumatic assistance minimizes physical strain.
أداء متناسق: Reliable operation ensures repeatable results.
Precision Alignment: Maintains accurate frame positioning during adhesion.
مجال تطبيق آلات Juste
المعدات الطبية ومعدات الطاقة وصناعة أشباه الموصلات، مثل منتجات النظارات،
عدسة، قلم، كرة من البولي فينيل كلوريد، كوب، لعبة، عين دمية، نظارة شمسية، هدية، قميص، قطعة قماش للأطفال، حمالة صدر، نظارة طبية، ألعاب،
مظلة، ملابس داخلية، فاكهة تفاح، حذاء، نعل داخلي، رقم قرص الساعة، ثوب، قناع وجه، غطاء بلاستيكي،
خوذة السلامة، قبعة السلامة الصلبة، صناعة العدسات المعدنية والنسيج وما إلى ذلك.
مجال تطبيق آلات الطباعة Juste
الأطعمة والمشروبات، الألعاب، معدات حماية الأقنعة، أدوات المائدة، منتجات التجميل والمكياج،
معدات رياضية، أضواء وإضاءة، منتجات إلكترونية، منتجات الغسيل والتنظيف،
الأجهزة المنزلية، المنسوجات والملابس، معدات الاتصالات، قطع غيار السيارات والدراجات النارية.
آلات التعبئة والتغليف
آلة مع التعبئة والتغليف الخشبية ثلاثية الطبقات، ومادة منصة الخشب كما الخشب التبخير.
إنها علبة خشبية قوية مناسبة للشحن البحري.
سيتم تعبئة الماكينة جيدًا في صندوق خشبي ثلاثي الطبقات ثم تحميلها في الحاوية وشحنها
عن طريق البحر / عن طريق الجو، حسب طلبك.
مدة الشحن
وقت الشحن
وقت تسليم العينة: 5-15 يومًا بواسطة DHL/UPS/TNT/FEDEX express، الشحن البحري
وقت شحن الطلب بالجملة: 5-15 يوم عمل عن طريق Express / 15-30 يومًا عن طريق البحر.
معلومات الشركة
حول شركة Shenzhen Juste Machine Co., Ltd.
Established in 2002, Shenzhen Juste Machine Co., Ltd. stands as a leading معدات ما قبل الطباعة
manufacturer with comprehensive expertise in printing preparation technology. Our specialized
manufacturing capabilities include developing advanced screen stretching machine solutions and
complete pre-press systems for the global printing industry.
As a dedicated screen stretcher machine factory, we combine technical innovation with practical
manufacturing excellence. The JST-SC1215T manual screen stretching machine exemplifies our
commitment to providing accessible, professional-grade equipment for printing businesses seeking
reliable mesh tensioning solutions. Our product development focuses on delivering practical benefits
through robust engineering and user-centered design.
We serve diverse printing applications including commercial printing, packaging, textile, and industrial
printing sectors. Our comprehensive support includes customization options, OEM services,
and complete technical assistance to ensure optimal performance for international clients using
our screen printing mesh stretching machine equipment.
كيفية الطلب
كيفية وضع الطلب على آلة تمديد الشاشة اليدوية؟
الاستشارة الأولية: Contact our technical team to discuss your screen stretching machine requirements
and production needs.
تحليل المتطلبات: Provide details about your typical screen sizes, mesh types, and desired tension
specifications.
الاقتراح الفني: Our engineering team reviews your specifications and provides detailed recommendations
for the optimal screen stretcher configuration.
تأكيد الطلب: Upon approving the proposal, we issue a Proforma Invoice outlining all costs and
delivery terms.
Manufacturing Initiation: After payment confirmation, we begin production of your manual screen
stretching machine.
التحقق من الجودة: Comprehensive testing ensures your machine meets performance standards for
screen printing mesh stretcher التطبيقات.
Pre-Shipment Preparation: We provide inspection reports and operational documentation.
تنسيق الشحن: We arrange secure packaging and transportation from Shenzhen port.
Delivery Execution: Your equipment arrives within 10-30 working days with complete shipment tracking.
دعم التشغيل: Remote technical assistance available for machine setup and operation.
التعليمات
س1: What differentiates this model from more expensive screen stretchers?
The JST-SC1215T manual screen stretching machine utilizes cost-effective chain drive technology
while maintaining professional tensioning capabilities, offering exceptional value for printing businesses
requiring reliable screen mesh stretching machine performance without advanced automation features.
الربع الثاني: Can this machine handle different mesh types and sizes?
Yes, this screen printing frame stretcher accommodates mesh sizes from 800×1000mm to 1200×1500mm,
with tension capabilities of 25-35N/cm suitable for various mesh types used in different printing applications.
الربع الثالث: What is the operational air pressure requirement?
The integrated pneumatic system operates at 0.5-0.7Mpa standard industrial air pressure, making this
pneumatic screen stretching machine compatible with most workshop compressed air systems.
الربع الرابع: Where is your manufacturing facility located?
Our screen stretching machine production facility is based in Dongguan, Guangdong, with strategic
proximity to Hong Kong for efficient international logistics.
س5ما هي تغطية الضمان المقدمة؟
We offer comprehensive 12-month warranty protection on all our machines, including this manual
screen stretching machine clamp system, covering manufacturing defects and ensuring reliable performance.
س6: How does the chain drive compare to gear systems?
The chain drive in this mechanical screen stretching machine provides cost-effective operation with
reliable performance, ideal for businesses seeking professional results at an accessible price point,
while gear systems offer higher tension capabilities for specialized applications.
يجب أن تمر جميع الآلات عبر قسم فحص ضمان الجودة لدينا قبل الشحن.
